Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

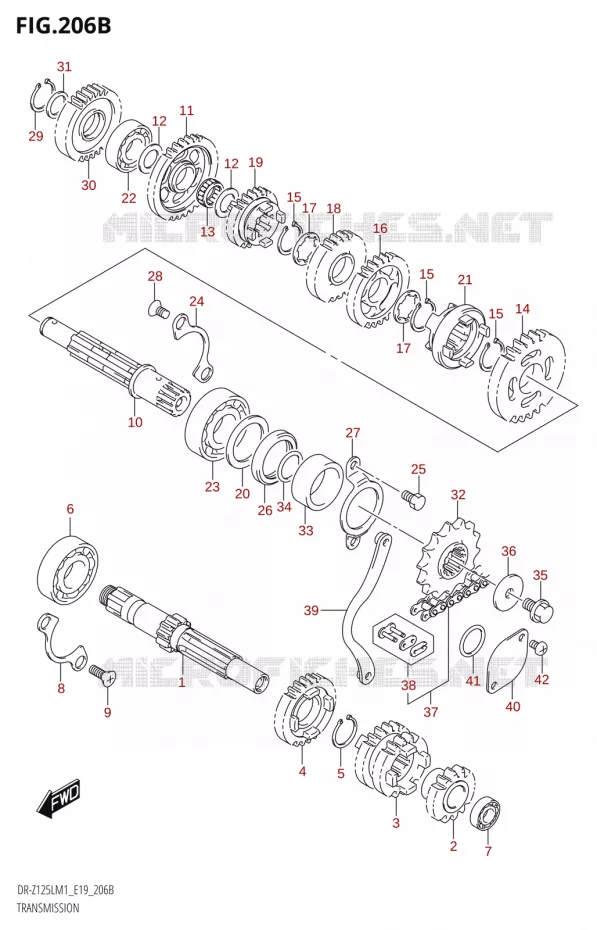

TRANSMISSION FOR SUZUKI DR-Z 125 2021

GEAR SHIFTING ASSY

Item numbers
TRANSMISSION Suzuki MOTO 125 DR-Z 2021 DR-Z125L M1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
SHAFT, COUNTER (NT:11)

24120-05850-000   2412005850000

2412005850000

Unit Price

2
GEAR, 2ND DRIVE (NT:14)

24221-05301-000   2422105301000

2422105301000

Unit Price

3
GEAR, 3RD & 4TH DRIVEN (NT:19/2 1)

24231-05203-000  

2423105203000
Not available
4
GEAR, 5TH DRIVE (NT:26)

24251-05212-000   2425105212000

2425105212000

Unit Price

5
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

6
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

7
BALL BEARING
BEARING

08123-60027-000   0812360027000

0812360027000

Unit Price

8
RETAINER, DRIVE SHAFT BEARING
RETAINER, COUNTER SHAFT

24741-05200-000   2474105200000

2474105200000

Unit Price

9
SCREW<br />SCREW (6X12)
SCREW
SCREW (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

10
SHAFT, DRIVE

24130-44A00-000   2413044A00000

2413044A00000

Unit Price

11
GEAR, 1ST DRIVEN (NT:33)

24311-05202-000   2431105202000

2431105202000

Unit Price

12
WASHER

08211-15251-000   0821115251000

0821115251000

Unit Price

13
BEARING (15X19X7.8)

09263-15023-000   0926315023000

0926315023000

Unit Price

14
GEAR, 2ND DRIVEN (NT:26)

24320-05202-000  

2432005202000
Not available
15
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

16
GEAR, 3RD DRIVEN (NT:26)

24331-05203-000   2433105203000

2433105203000

Unit Price

17
WASHER, LOCK

09167-20034-000   0916720034000

0916720034000

Unit Price

18
GEAR, 4TH DRIVEN (NT:23)

24341-05203-000   2434105203000

2434105203000

Unit Price

19
GEAR, 5TH DRIVEN (NT:24)

24351-05211-000   2435105211000

2435105211000

Unit Price

20
WASHER, OIL SEALING

24359-42A00-000   2435942A00000

2435942A00000

Unit Price

21
WHEEL, SLIDING DOG

24421-05300-000   2442105300000

2442105300000

Unit Price

22
BEARING (15X36X12)

09264-15001-000   0926415001000

0926415001000

Unit Price

23
BEARING<br />BEARING (22X50X14)
BEARING
BEARING (22X50X14)

09262-22018-000   0926222018000

0926222018000

Unit Price

24
RETAINER, DRIVE SHAFT BEARING
RETAINER, COUNTER SHAFT

24741-05200-000   2474105200000

2474105200000

Unit Price

25
BOLT

01500-0610A-000  

01500-0610B-000
 015000610A000

Unit Price

26
OIL SEAL 30X40X6<br />SEAL,OIL (30X40X6)
OIL SEAL 30X40X6
SEAL, OIL (30X40X6)

09283-30053-000   0928330053000

0928330053000

Unit Price

27
RETAINER, DRIVE SHAFT OIL SEAL

24751-42A10-000   2475142A10000

2475142A10000

Unit Price

28
SCREW<br />SCREW (6X12)
SCREW
SCREW (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

29
CIRCLIP
CIRCLIP

08331-3115A-000   083313115A000

083313115A000

Unit Price

30
GEAR, KICK STARTER IDLE (NT:26)

26260-05201-000   2626005201000

2626005201000

Unit Price

31
SHIM (15X20X1)

09181-15111-000   0918115111000

0918115111000

Unit Price

32
SPROCKET, ENGINE(14T)
SPROCKET, ENGINE (NT:14)

27511-44A20-000   2751144A20000

2751144A20000

Unit Price

33
SPACER, ENGINE SPROCKET

27531-42A00-000   2753142A00000

2753142A00000

Unit Price

34
O RING (D:2.5,ID:21)
O RING (D:2.5, ID:21)

09280-21008-000   0928021008000

0928021008000

Unit Price

35
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

36
WASHER, THRUST
WASHER

08211-08283-000   0821108283000

0821108283000

Unit Price

37
CHAIN, DRIVE
CHAIN, DRIVE (DID428HD(I))

27600-46912-130   2760046912130

2760046912130

Unit Price

38
JOINT SET, CHAIN
.JOINT SET, CHAIN (DID428HD(I))

27620-46912-000   2762046912000

2762046912000

Unit Price

39
PLATE, FR CHAIN GUIDE
PLATE, FRONT CHAIN GUIDE

27640-08G00-000   2764008G00000

2764008G00000

Unit Price

40
CAP, NEUTRAL SWITCH HOLE
CAP, NEUTRAL SW HOLE

11450-08G00-000   1145008G00000

1145008G00000

Unit Price

41
OIL PLUG O RING<br />O RING (D:2.4,ID:21.8)
OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

42
SCREW
SCREW

02112-0508A-000   021120508A000

021120508A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 DR-Z 2021
