TIMING

CARBURETOR FOR SUZUKI DR 125 1982

AIR FILTER

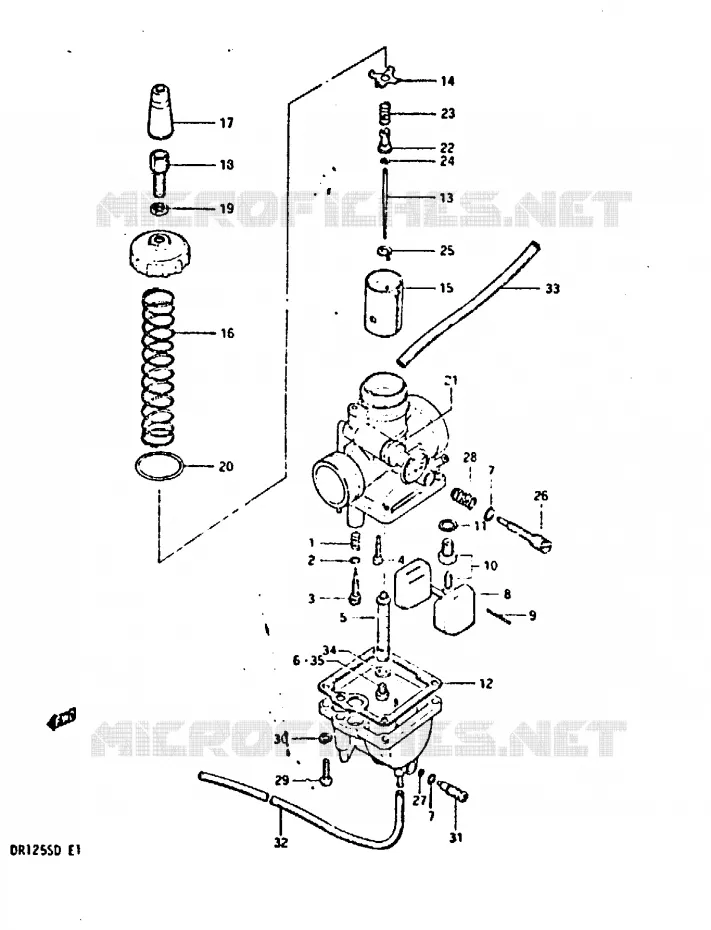

CARBURETOR Suzuki MOTO 125 DR 1982 DR125SZ(Z/D)
1
DISCONTINUED

13271-05200-000   1327105200000

1327105200000
Not available
2
O RING

13278-05200-000  

13278-45010-000
 1327805200000

Unit Price

3
SCREW, PILOT

13279-05200-000   1327905200000

1327905200000
Not available
4
DISCONTINUED

09492-38002-000   0949238002000

0949238002000
Not available
4
DISCONTINUE
JET, PILOT (40)

09492-40013-000   0949240013000

0949240013000
Not available
5
JET, NEEDLE (ID:2.595)

09494-00366-000   0949400366000

0949400366000
Not available
6
JET, MAIN (100)

09491-20014-000   0949120014000

0949120014000
Not available
6
JET, MAIN (98)

09491-98002-000   0949198002000

0949198002000
Not available
7
O-RING

13246-05200-000  

09280-05004-000
 1324605200000

Unit Price

8
FLOAT

13252-05200-000   1325205200000

1325205200000
Not available
9
PIN

13254-05200-000   1325405200000

1325405200000
Not available
10
DISCONTINUE
VALVE SEAT ASSY (ID:2.0)

13370-05200-000   1337005200000

1337005200000
Not available
11
GASKET, VALVE SEAT

13392-05200-000   1339205200000

1339205200000
Not available
12
DISCONTINUED

13251-05200-000   1325105200000

1325105200000
Not available
13
DISCONTINUED

13200-05210-000   1320005210000

1320005210000
Not available
13
DISCONTINUE
CARBURETOR ASSY

13200-05260-000   1320005260000

1320005260000
Not available
13
DISCONTINUED

13383-05210-000   1338305210000

1338305210000
Not available
13
DISCONTINUED

13383-05260-000   1338305260000

1338305260000
Not available
14
DISCONTINUED

13581-05200-000   1358105200000

1358105200000
Not available
15
THROTTLE VALVE (CA:2.5)

13551-05200-000   1355105200000

1355105200000
Not available
16
SPRING, THROTTLE

13573-05200-000   1357305200000

1357305200000
Not available
17
DISCONTINUED

13681-05200-000   1368105200000

1368105200000
Not available
18
DISCONTINUED

13577-05200-000   1357705200000

1357705200000
Not available
19
NUT, LOCK

13661-05200-000   1366105200000

1366105200000
Not available
20
DISCONTINUED

13266-05200-000   1326605200000

1326605200000
Not available
21
DISCONTINUED

13400-05200-000   1340005200000

1340005200000
Not available
22
REORDER ROBINSONS MOTORS

13389-05200-000   1338905200000

1338905200000
Not available
23
SPRING

13388-05200-000   1338805200000

1338805200000
Not available
24
E RING

13384-05200-000   1338405200000

1338405200000
Not available
25
RESEEVE, NEEDLE

13382-05200-000   1338205200000

1338205200000
Not available
26
SCREW, THROTTLE VALVE STOP

13267-05200-000   1326705200000

1326705200000
Not available
27
O RING

13294-05200-000   1329405200000

1329405200000
Not available
28
SPRING

13268-05200-000   1326805200000

1326805200000
Not available
29
.SCREW

02112-04168-000   0211204168000

0211204168000
Not available
30
WASHER 4MM

08321-21048-000   0832121048000

0832121048000
Not available
31
SCREW, DRAIN

13247-05200-000   1324705200000

1324705200000
Not available
32
.HOSE, OVER FLOW (3X5X425->400)

13684-05200-000   1368405200000

1368405200000
Not available
33
DISCONTINUED

13684-05210-000   1368405210000

1368405210000
Not available
33
DISCONTINUED

13684-05270-000   1368405270000

1368405270000
Not available
34
DISCONTINUED

13343-05200-000   1334305200000

1334305200000
Not available
35
JET, MAIN (100)

09491-20014-000   0949120014000

0949120014000
Not available
35
JET, MAIN (102)

09491-20015-000   0949120015000

0949120015000
Not available
35
JET, MAIN (104)

09491-21017-000   0949121017000

0949121017000
Not available
35
JET, MAIN (106)

09491-21018-000   0949121018000

0949121018000
Not available
35
DISCONTINUED

09491-96003-000   0949196003000

0949196003000
Not available
35
JET, MAIN (98)

09491-98002-000   0949198002000

0949198002000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki DR 125 of DR. Let us know if you have any questions.
