TRANSMISSION

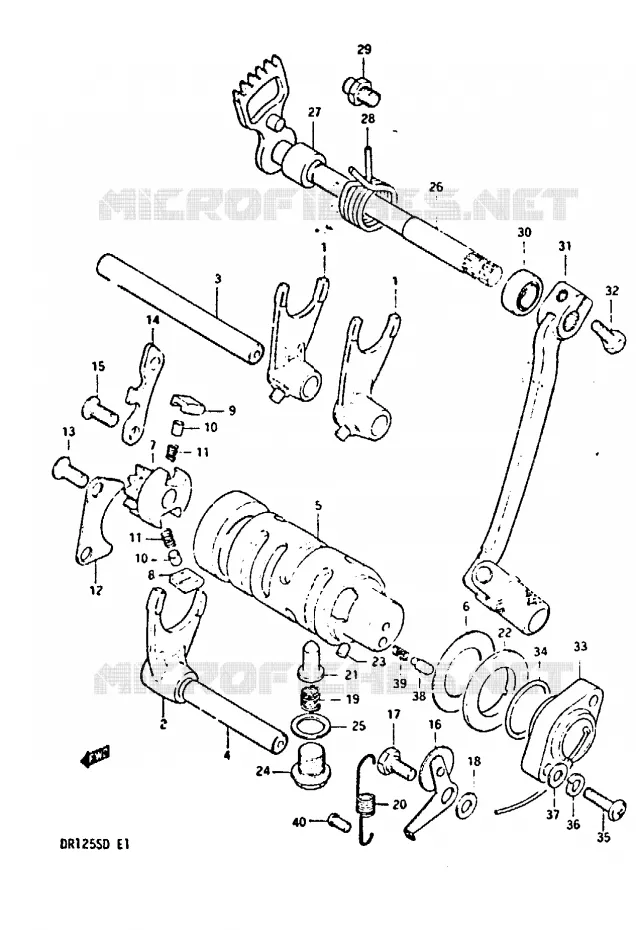

GEAR SHIFTING ASSY FOR SUZUKI DR 125 1982

KICK STARTER

FORK, GEAR SHIFTING (1)

25211-05200-000 2521105200000

Not available

DISCONTINUED

25231-05200-000 2523105200000

Not available

SHAFT, GEAR SHIFT FORK(L:109)

25411-05200-000

25411-16701-000

$16,97

Unit Price

SHAFT, NO. 2 (L:60)

25421-40400-000 2542140400000

Not available

CAM, GEAR SHIFTING

25310-05200-000 2531005200000

Not available

SHIM, 25X40X1.0

08211-25401-000

09181-25251-000

$5,97

Unit Price

GEAR, CAM DRIVEN

25322-11000-000 2532211000000

Not available

PAWL, NO. 1

25323-11000-000 2532311000000

Not available

PAWL, NO. 2

25324-11000-000 2532411000000

Not available

SHIFTING PAUL ROLLER
PIN

09261-05003-000 0926105003000

$2,97

Unit Price

K S PAWL SPRING
SPRING

09440-04003-000 0944004003000

$2,97

Unit Price

DISCONTINUED

25331-30000-000 2533130000000

Not available

SCREW

02122-06128-000

02122-06127-000

$2,97

Unit Price

GUIDE, GEAR SHIFT CAM
GUIDE, CAM

25341-05200-000 2534105200000

$11,97

Unit Price

SCREW

02122-06128-000

02122-06127-000

$2,97

Unit Price

STOPPER, CAM

25350-05200-000 2535005200000

Not available

BOLT

09111-06019-000

09111-06054-000

$4,97

Unit Price

THRUST WASHER
WASHER

08211-06141-000 0821106141000

$3,97

Unit Price

SPRING

09440-11014-000 0944011014000

$2,97

Unit Price

DISCONTINUE
SPRING

09443-08012-000 0944308012000

Not available

STOPPER, GEAR SHIFT CAM NO.2
STOPPER, NEUTRAL

25351-30010-000 2535130010000

$14,97

Unit Price

PLATE, GEAR SHIFT CAM STOPPER
PLATE, STOPPER

25381-45400-000 2538145400000

$20,97

Unit Price

PIN (4X6)

06211-04063-000

04221-04069-000

$2,97

Unit Price

PLUG

09247-14012-000

09247-14026-000

$6,97

Unit Price

SPARK PLUG GASKET
WASHER

09168-14004-000 0916814004000

$2,97

Unit Price

DISCONTINUED

25510-05200-000 2551005200000

Not available

SPACER(12X20X15.3)
SPACER

09180-12068-000 0918012068000

$4,97

Unit Price

SPRING

09444-26001-000 0944426001000

$6,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-01000-000

25671-01011-000

$6,97

Unit Price

09285-12006
OIL SEAL

09285-12002-000

Not available

DISCONTINUE

25600-05210-000

Not available

BOLT

09100-06100-000

01107-06205-000

$2,97

Unit Price

DISCONTINUE
CAP

37720-44600-000 3772044600000

Not available

O RING

09280-26003-000

Not available

SCREW

02112-05208-000

02112-75207-000

$3,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

LOCK WASHER

08322-21058-000 0832221058000

Not available

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

RIVET

09220-04001-000

09223-04001-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki DR 125 of DR. Let us know if you have any questions.
