FRONT FENDER

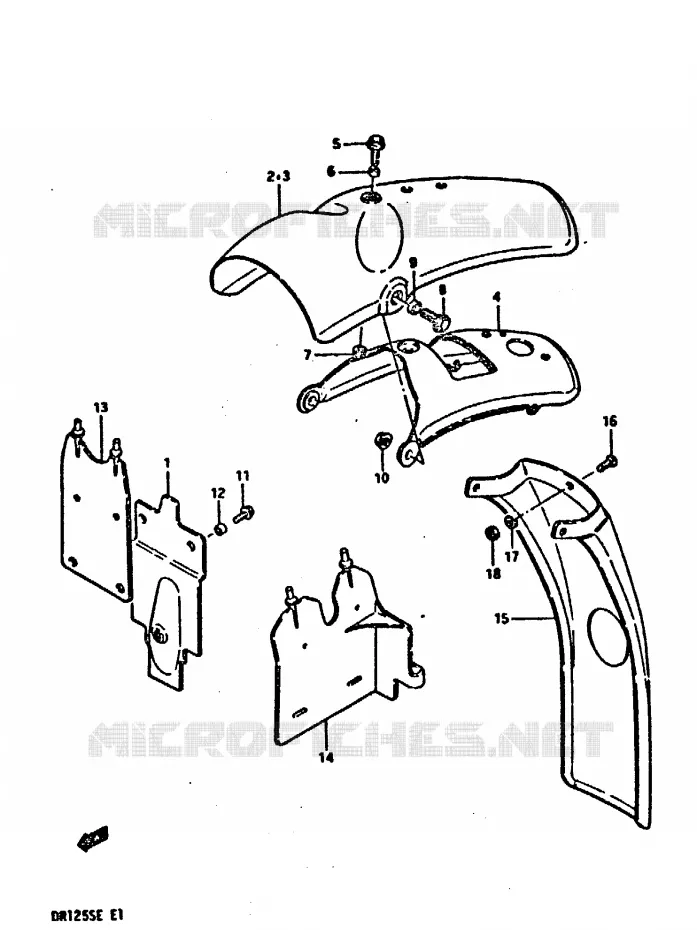

REAR FENDER FOR SUZUKI DR 125 1984

IGNITION REFER TO FIG. 17 (D-3) FOR E2, E4, E15, E18, E21

REAR FENDER, FRONT

63112-05200-000 6311205200000

Not available

FENDER, REAR (BLACK)

63111-05231-019 6311105231019

Not available

FENDER, REAR (BLUE)

63111-05231-05K 631110523105K

Not available

FENDER, REAR (WHITE)

63111-05231-10V 631110523110V

Not available

DISCONTINUE

63111-05231-14C

Not available

FENDER, REAR (YELLOW)

63111-05231-163 6311105231163

Not available

FENDER, REAR (BLACK)

63111-05240-019 6311105240019

Not available

FENDER, REAR (BLUE)

63111-05240-05K 631110524005K

Not available

FENDER, REAR (WHITE)

63111-05240-10V 631110524010V

Not available

FENDER, REAR (RED)

63111-05240-14C 631110524014C

Not available

FENDER, REAR (YELLOW)

63111-05240-163 6311105240163

Not available

DISCONTINUE
REINF ORCEMENT

63120-38201-000 6312038201000

Not available

BOLT (6X20)

01517-06208-000 0151706208000

Not available

SPACER, 6.5X9X5

09180-06073-000

09180-06306-000

$3,97

Unit Price

.NUT

08319-31068-000 0831931068000

Not available

BOLT

01517-08258-000

01550-08257-000

$4,97

Unit Price

SPACER

09180-06100-000 0918006100000

Not available

NUT

08319-31088-000 0831931088000

Not available

DISCONTINUED

02152-06128-000 0215206128000

Not available

SPACER, 6.5X9X5

09180-06073-000

09180-06306-000

$3,97

Unit Price

MUD FLAP, FRONT

63411-05200-000 6341105200000

Not available

MUD FLAP, FRONT LH

63416-05201-000 6341605201000

Not available

EXTENSION, REAR FENDER

63331-38210-000 6333138210000

Not available

6X16CROSS SCREW
SCREW

02142-06167-000 0214206167000

$2,97

Unit Price

LOCK WASHER

08321-31068-000 0832131068000

Not available

NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000 0831011068000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki DR 125 of DR. Let us know if you have any questions.
