Parts catalogue

Parts diagram

GEAR SHIFTING ASSY

KICK STARTER FOR SUZUKI DR 125 1984

FUEL COCK

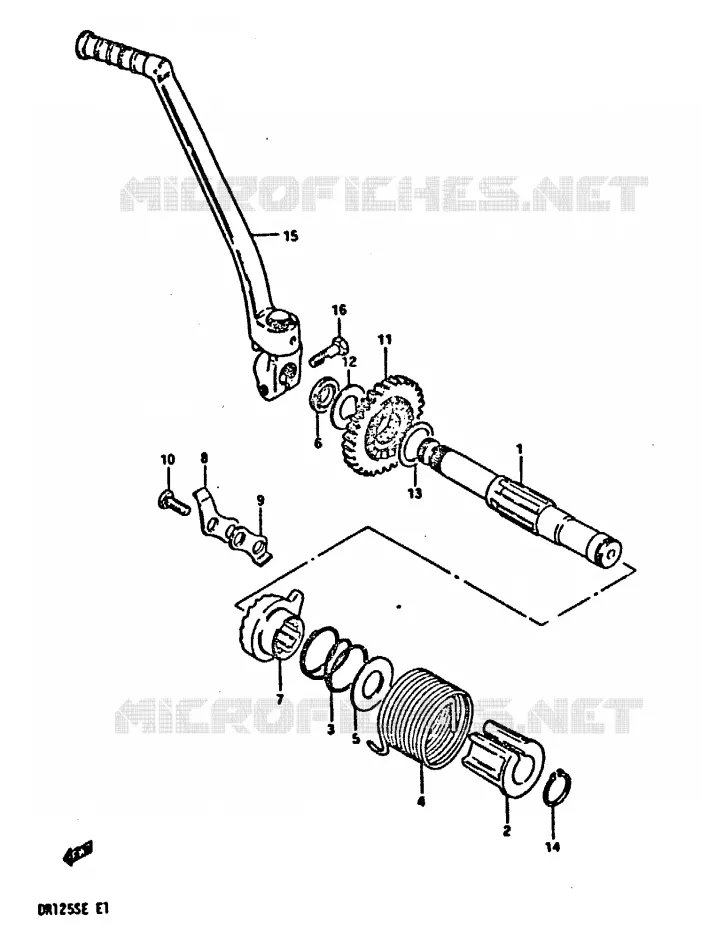

KICK STARTER Suzuki MOTO 125 DR 1984 DR125SE
1
SHAFT, KICK STARTER(NT:31)

26211-05201-000  

26211-05203-000
 2621105201000

Unit Price

2
GUIDE, KICK STARTER SFT SPRING
GUIDE, SPRING

26221-05200-000   2622105200000

2622105200000

Unit Price

3
SPRING

09440-32006-000   0944032006000

0944032006000

Unit Price

4
DISCONTINUE
SPRING

09448-43003-000   0944843003000

0944843003000
Not available
5
THRUST WASHER
PLATE

08211-17341-000   0821117341000

0821117341000

Unit Price

6
KK SHAFT OIL SEAL<br />OIL SEAL
KK SHAFT OIL SEAL
OIL SEAL

09285-16003-000   0928516003000

0928516003000

Unit Price

7
DISCONTINUED

26231-38200-000   2623138200000

2623138200000
Not available
8
GUIDE, KICK STARTER
LIFTER

26232-38200-000   2623238200000

2623238200000

Unit Price

9
STOPPER, KICK STARTER
STOPPER

26233-32400-000   2623332400000

2623332400000

Unit Price

10
.BOLT

01107-08208-000   0110708208000

0110708208000
Not available
11
GEAR, KICK STARTER DRIIVE

26240-05201-000  

26240-05202-000
 2624005201000

Unit Price

12
KK ST SHFT THR WASHR
WASHER, RH

09160-16003-000   0916016003000

0916016003000

Unit Price

13
SHIM(20X26X1)

08211-20261-000  

09181-20139-000
 0821120261000

Unit Price

14
THIRD PINION CIRCLIP<br />CIRCLIP
THIRD PINION CIRCLIP
CIRCLIP

09380-17001-000   0938017001000

0938017001000

Unit Price

15
DISCONTINUE
LEVER ASSY, KICK STARTER

26300-05213-000   2630005213000

2630005213000
Not available
16
DISCONTINUE

09100-08193-000  

0910008193000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the KICK STARTER of your Suzuki DR 125 of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 1984

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 DR 1984

Select your Suzuki 1984 model

125 DR 1984 DR125SE

DR 125

Suzuki DR

Displacement: 125 cc
Year: 1984
Model code DR125SE
