FUEL TANK (MODEL J)

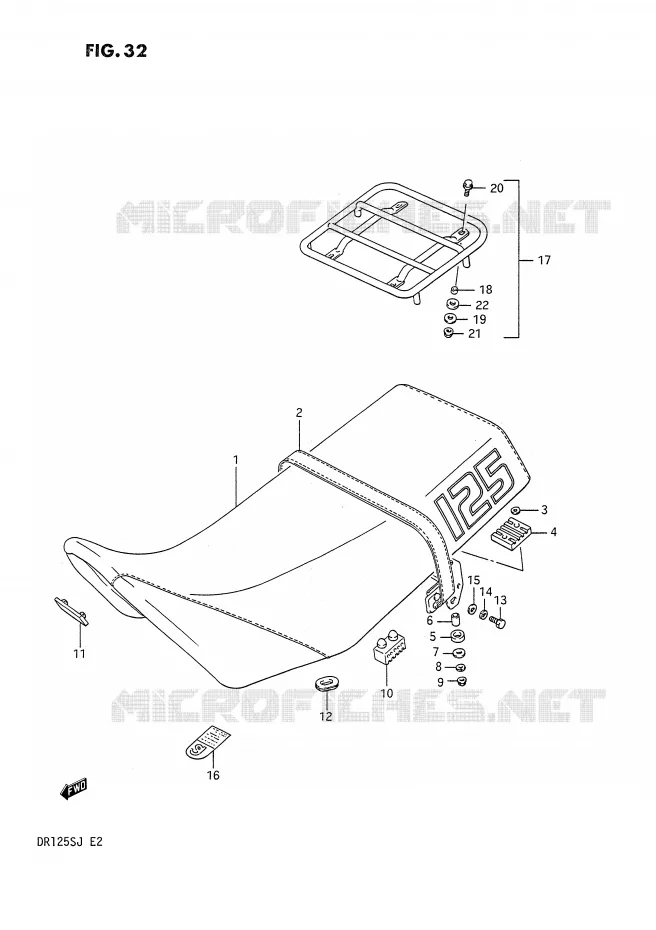

SEAT FOR SUZUKI DR 125 1988

FAIRING

45100-44X01-4UZ
SEAT ASSY (BLUE)

45100-44A01-58D

Not available

SEAT ASSY (BLACK)

45100-44A40-58P 4510044A4058P

Not available

DISCONTINUE
BAND, SEAT GRIP (BLUE)

45180-42A00-4UZ 4518042A004UZ

Not available

BAND, SEAT GRIP (BLACK)

45180-42A00-58P 4518042A0058P

Not available

WASHER

08322-21066-000

08322-0106A-000

$2,97

Unit Price

CUSHION, FR PLATE
CUSHION, UPPER

45150-23450-000 4515023450000

$7,97

Unit Price

CUSHION, SEAT FR
CUSHION, LOWER

45147-23450-000 4514723450000

$2,97

Unit Price

SPACER

45219-23450-000 4521923450000

Not available

WASHER, THRUST
WASHER, LOWER

08212-06201-000 0821206201000

$2,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

08310-0006A
.NUT 6MM

08310-12066-000

Not available

CUSHION, SEAT(40X20X15)
CUSHION

45149-31300-000 4514931300000

$5,97

Unit Price

SEAT CUSHION
CUSHION, FRONT

09321-08009-000 0932108009000

$4,97

Unit Price

CUSHION COWLING REAR
GROMMET

09329-08003-000 0932908003000

$6,97

Unit Price

BOLT

01107-08165-000

01500-0816B-000

$4,97

Unit Price

WASHER, LOCK

08321-21084-000

08321-0108B-000

$3,97

Unit Price

08322-0108A
WASHER, FRONT

08322-11084-000

Not available

LABEL, ASBESTOS WARNING

11967-82000-000 1196782000000

Not available

46300-13831
CARRIER SET, SPORT

46300-13830-000

Not available

DISCONTINUE
SPACER

46356-13A00-000 4635613A00000

Not available

CHAIN CASE RR WASHER
WASHER

09160-06056-000 0916006056000

$2,97

Unit Price

BOLT

01517-06204-000

01550-0620B-000

$4,97

Unit Price

NUT 6MM

08316-16064-000

08319-31067-000

$3,97

Unit Price

CUSHION

09320-10036-000

09320-10077-000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki DR 125 of DR. Let us know if you have any questions.
