MUFFLER

OIL PUMP FOR SUZUKI DR 125 1988

CLUTCH

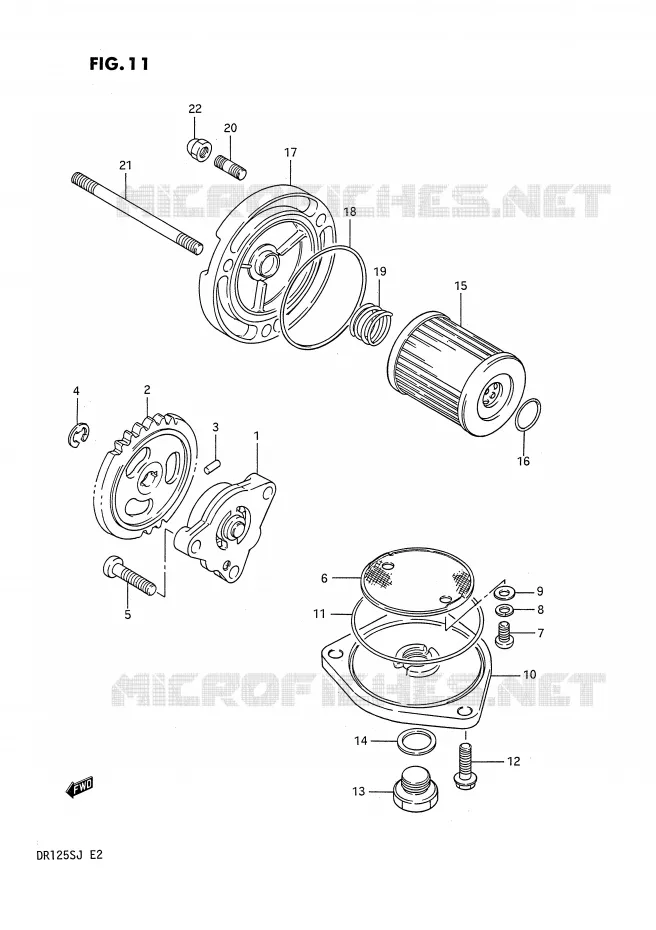

OIL PUMP Suzuki MOTO 125 DR 1988 DR125SJ(E2)
1
PUMP ASSY, ENGINE OIL
PUMP, ENGINE OIL

16400-42A01-000   1640042A01000

1640042A01000

Unit Price

2
GEAR, OIL PUMP DRIVEN

16331-42A00-000  

16331-04B00-000
 1633142A00000

Unit Price

3
ROTOR DRIVEN PIN**S1
PIN

09261-02008-000   0926102008000

0926102008000

Unit Price

4
E RING

08332-11068-000  

08332-1106B-000
 0833211068000

Unit Price

5
SCREW

02112-06256-000  

02112-0625A-000
 0211206256000

Unit Price

6
STRAINER, ENGINE OIL

16520-05202-000   1652005202000

1652005202000

Unit Price

7
SCREW

02112-05126-000  

02112-0512A-000
 0211205126000

Unit Price

8
WASHER, LOCK

08321-21056-000  

08321-01053-000
 0832121056000

Unit Price

9
WASHER

08322-21056-000  

08322-0105B-000
 0832221056000

Unit Price

10
CAP, OIL STRAINER

16523-05200-000   1652305200000

1652305200000

Unit Price

11
O-RING,OIL STR CAP<br />O RING (D:2.4,ID:60.5)
O-RING, OIL STR CAP
O RING (D:2.4, ID:60.5)

09280-60005-000   0928060005000

0928060005000

Unit Price

12
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

13
PLUG

09247-14001-000  

09247-14002-000
 0924714001000

Unit Price

14
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

15
FILTER ASSY, ENGINE OIL

16510-24501-000  

16510-25C00-000
 1651024501000

Unit Price

16
ENG OIL PUMP O RING<br />O RING (D:1.9,ID:13)
ENG OIL PUMP O RING
O RING (D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

17
CAP, OIL FILTER

16512-42A00-000  

16512-42A20-000
 1651242A00000

Unit Price

17
DISCONTINUE
CAP, OIL FILTER

16512-42A10-000   1651242A10000

1651242A10000
Not available
18
O-RING, OIL FLT CAP
O RING (D:2.4, ID:52.6)

09280-54001-000   0928054001000

0928054001000

Unit Price

19
SPRING

48281-85000-000  

09440-18002-000
 4828185000000

Unit Price

20
STUD 6X12

01421-06128-000  

09108-06128-000
 0142106128000

Unit Price

21
BOLT,STUD<br />STUD BOLT (6X90)
BOLT, STUD
STUD BOLT (6X90)

09108-06108-000   0910806108000

0910806108000

Unit Price

22
NUT

08313-11065-000  

08313-10063-000
 0831311065000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki DR 125 of DR. Let us know if you have any questions.
