CARBURETOR FOR SUZUKI DR 125 1994

AIR FILTER

Item numbers

COVER, DIAPHRAGM
COVER

13502-42A00-000 1350242A00000

$30,97

Unit Price

SPRING

13417-42A00-000 1341742A00000

$10,97

Unit Price

RING

13382-42A00-000 1338242A00000

$6,97

Unit Price

CLIP
CLIP, NEEDLE

13394-10010-000 1339410010000

$6,97

Unit Price

RING

13387-47010-000 1338747010000

$11,97

Unit Price

DISCONTINUE
JET, NEEDLE (P-5)

09494-00825-000 0949400825000

Not available

SCREW

02112-04083-000

02112-0408B-000

$2,97

Unit Price

DISCONTINUE
SEAL

13556-05A10-000

Not available

E RING

13617-44080-000 1361744080000

$5,97

Unit Price

GASKET, THROTTLE SHAFT
GASKET

13557-47070-000 1355747070000

$7,97

Unit Price

CAP

13578-47070-000 1357847070000

$9,97

Unit Price

DIAPHRAGM ASSY

13500-42A00-000

13500-42A01-000

$207,97

Unit Price

SCREW

13602-43410-000 1360243410000

$4,97

Unit Price

PLUNGER ASSY

13411-42A20-000 1341142A20000

$42,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

SCREW, PILOT
SCREW, PILOT (1.0)

13279-47070-000 1327947070000

$19,97

Unit Price

PLUG

13281-05A00-000 1328105A00000

$6,97

Unit Price

JET, PILOT
JET, PILOT (40)

09492-40014-000 0949240014000

$16,97

Unit Price

WASHER

13332-44080-000

13382-03110-000

$4,97

Unit Price

JET, MAIN
JET, MAIN (112.5)

09491-22015-000 0949122015000

$22,97

Unit Price

DISCONTINUE
NEEDLE, JET (5D65-1)

13383-44A20-000 1338344A20000

Not available

FLOAT

13250-42A00-000 1325042A00000

$42,97

Unit Price

PIN, FLOAT

13254-92311-000 1325492311000

$2,97

Unit Price

VALVE ASSY, NEEDLE

13370-44500-000 1337044500000

$51,97

Unit Price

O RING, FLOAT CHAMBER

13251-42A00-000 1325142A00000

$13,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

FILTER

13376-84110-000

13376-19F00-000

$15,97

Unit Price

DISCONTINUE
JET, AIR (140)

09493-28005-000 0949328005000

Not available

SCREW

02112-04123-000

02112-0412A-000

$2,97

Unit Price

SPRING, THROTTLE SCREW
SPRING

13268-37420-000 1326837420000

$4,97

Unit Price

ADJUSTER

13267-37100-000

13267-25D00-000

$17,97

Unit Price

DISCONTINUE
SPRING

13573-42A10-000 1357342A10000

Not available

DISCONTINUE
RING

13574-45120-000 1357445120000

Not available

HOSE (3X5X650)

13684-40A00-000 1368440A00000

$14,97

Unit Price

HOSE

09352-50823-600

09352-50005-600

$11,97

Unit Price

PLUG, DRAIN

13247-13A00-000

13247-02340-000

$7,97

Unit Price

HOSE, 4.5X8.5X600

09354-45853-600

09355-45001-600

$18,97

Unit Price

99x

13200-44AB1
DISCONTINUED

13200-44AB0-000 1320044AB0000

Not available

99x

DISCONTINUE
CARBURETOR ASSY

13200-44AB1-000 1320044AB1000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

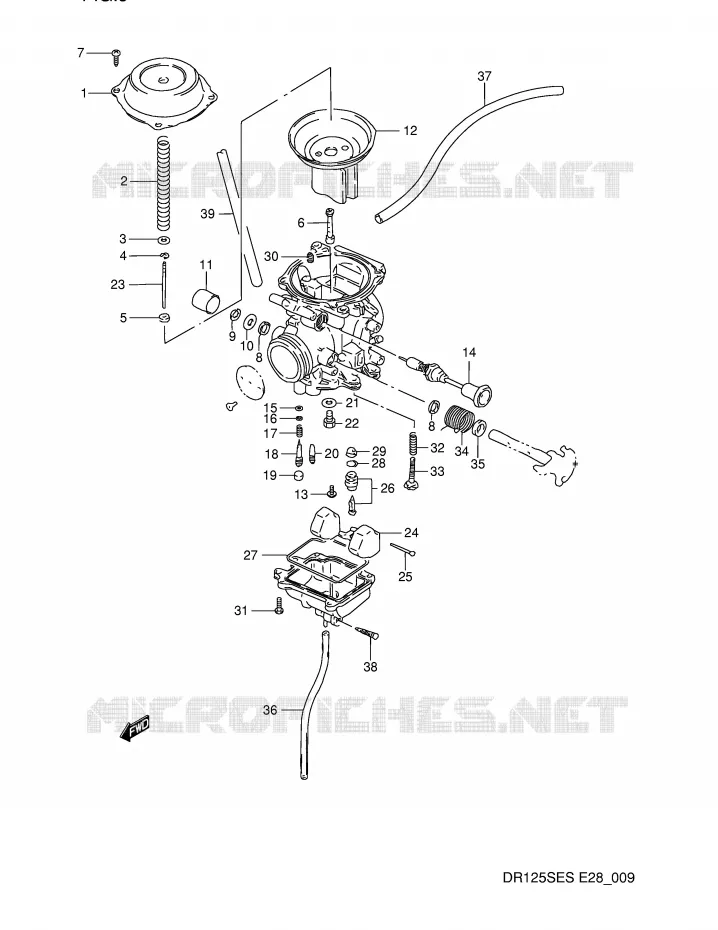

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki DR 125 of DR. Let us know if you have any questions.
