Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI DR 125 1994

FUEL COCK

Item numbers

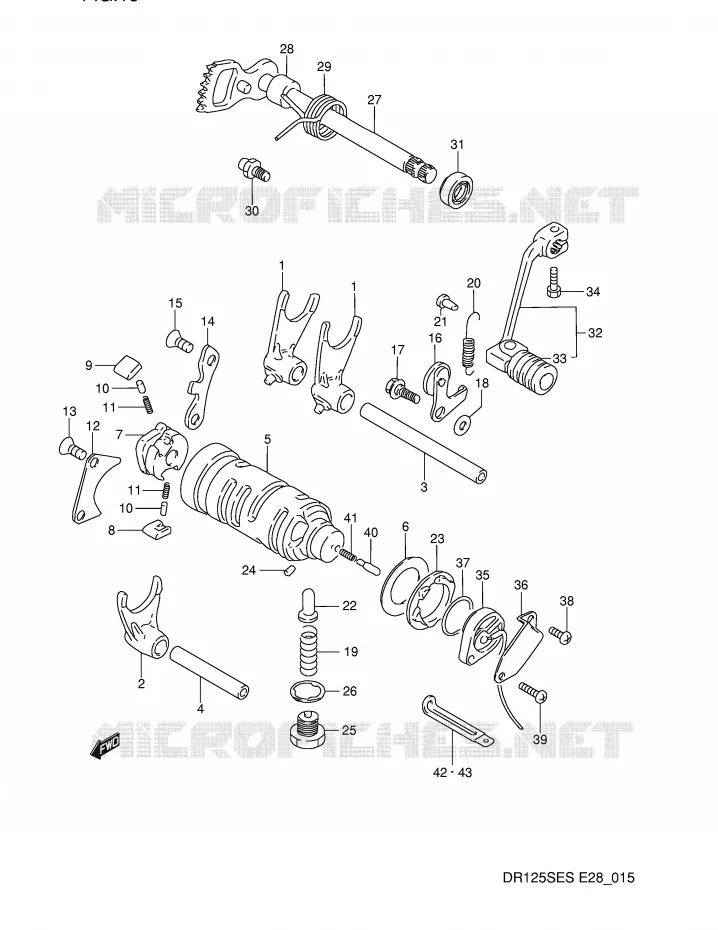

GEAR SHIFTING ASSY Suzuki MOTO 125 DR 1994 DR125SER(E28)
1
1
2
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
FORK, GEAR SHIFT NO.2

25221-08300-000   2522108300000

2522108300000

Unit Price

2
FORK, GEAR SHIFT NO.3

25231-05201-000   2523105201000

2523105201000

Unit Price

3
SHAFT, GEAR SHIFT FORK(L:109)

25411-05201-000  

25411-16701-000
 2541105201000

Unit Price

4
SHAFT, GEAR SHIFT FORK NO.2

25421-35403-000  

25421-35410-000
 2542135403000

Unit Price

5
DISCONTINUE
CAM, GEAR SHIFT

25310-44A00-000   2531044A00000

2531044A00000
Not available
6
SHIM, 25X40X1.0

08211-25401-000  

09181-25251-000
 0821125401000

Unit Price

7
GEAR, GEAR SHIFT CAM DRIVEN

25322-31301-000  

25322-31310-000
 2532231301000

Unit Price

8
PAWL,GEAR SHIFT NO.1<br />POLE, GEAR SHIFT NO.1
PAWL, GEAR SHIFT NO.1
POLE, GEAR SHIFT NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

9
PAWL,GEAR SHIFT NO.2<br />POLE, GEAR SHIFT NO.2
PAWL, GEAR SHIFT NO.2
POLE, GEAR SHIFT NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

10
SHIFTING PAUL ROLLER<br />ROLLER (5X8)
SHIFTING PAUL ROLLER
ROLLER (5X8)

09261-05003-000   0926105003000

0926105003000

Unit Price

11
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04003-000   0944004003000

0944004003000

Unit Price

12
LIFTER, GEAR SHIFT POLE

25331-30001-000   2533130001000

2533130001000

Unit Price

13
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

14
GUIDE, GEAR SHIFT CAM

25341-05200-000   2534105200000

2534105200000

Unit Price

15
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

16
STOPPER, GEAR SHIFT CAM

25350-44A00-000   2535044A00000

2535044A00000

Unit Price

17
BOLT
BOLT

09111-06054-000   0911106054000

0911106054000

Unit Price

18
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

19
SPRING

09440-11014-000   0944011014000

0944011014000

Unit Price

20
SPRING

09443-08044-000   0944308044000

0944308044000

Unit Price

21
RIVET<br />HOOK
RIVET
HOOK

09223-04001-000   0922304001000

0922304001000

Unit Price

22
STOPPER, GEAR SHIFT CAM NO.2
STOPPER, GEAR SHIFT CAM NO.2

25351-30010-000   2535130010000

2535130010000

Unit Price

23
PLATE, GEAR SHIFT CAM STOPPER

25381-45400-000   2538145400000

2538145400000

Unit Price

24
PIN (4X6)<br />PIN
PIN (4X6)
PIN

04221-04069-000   0422104069000

0422104069000

Unit Price

25
PLUG
PLUG

09247-14026-000   0924714026000

0924714026000

Unit Price

26
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

27
SHAFT, GEAR SHIFT
SHAFT, GEAR SHIFTING

25510-05201-000   2551005201000

2551005201000

Unit Price

28
SPACER (12X20X15.3)
SPACER (12X20X15.3)

09180-12068-000   0918012068000

0918012068000

Unit Price

29
SPRING
SPRING

09444-26001-000   0944426001000

0944426001000

Unit Price

30
STOPPER, GEAR SHIFT ARM

25671-01000-000  

25671-01011-000
 2567101000000

Unit Price

31
09285-12006<br />OIL SEAL (12X22X9)
09285-12006
OIL SEAL (12X22X9)

09285-12002-000  

0928512002000
Not available
32
LEVER ASSY, GEAR SHIFT

25600-42A00-000   2560042A00000

2560042A00000

Unit Price

33
RUBBER, GEAR SHIFT PEDAL

25652-03D00-000   2565203D00000

2565203D00000

Unit Price

34
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

35
BASE ASSY, NEUTRAL SW TERMINAL
BASE ASSY, NEUTRAL SWITCH TERMINAL

37720-42A30-000   3772042A30000

3772042A30000

Unit Price

36
PROTECTOR, GEAR SHIFT SW
PROTECTOR, GEAR SHIFT SWITCH

37721-42A00-000   3772142A00000

3772142A00000

Unit Price

37
OIL PLUG O RING<br />O RING (D:2.4,ID:21.8)
OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

38
SCREW

02112-05083-000  

02112-0508A-000
 0211205083000

Unit Price

39
SCREW

02112-05163-000  

02112-0516B-000
 0211205163000

Unit Price

40
K S PAWL ROLLER<br />CONTACT
K S PAWL ROLLER
CONTACT

09209-05011-000   0920905011000

0920905011000

Unit Price

41
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

42
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

43
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki DR 125 of DR. Let us know if you have any questions.
