Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER

CRANKSHAFT FOR SUZUKI GN 125 1982

STARTER MOTOR CLUTCH

Item numbers

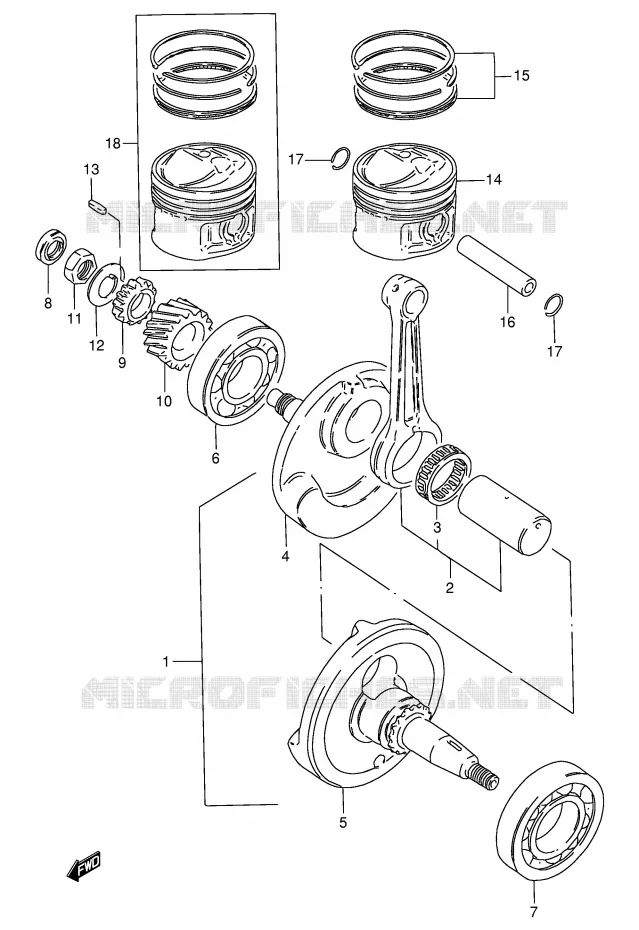

CRANKSHAFT Suzuki MOTO 125 GN 1982 GN125EZ(E1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
1
CRANKSHAFT ASSY

12200-05323-000   1220005323000

1220005323000
Not available
2
CONNECTING ROD SET
ROD SET, CONNECTING

12105-05821-000   1210505821000

1210505821000

Unit Price

3
BEARING(28X36X15.8)
BEARING

09263-28027-0B0   09263280270B0

09263280270B0

Unit Price

4
CRANKSHAFT, R

12221-05202-000  

12221-05210-000
 1222105202000

Unit Price

5
DISCONTINUE
CRANKSHAFT, LH

12261-05301-000   1226105301000

1226105301000
Not available
6
BALL BEARING
BEARING, RH

09262-28014-000   0926228014000

0926228014000

Unit Price

7
BEARING 35X72X17
BEARING, LH

09262-35038-000   0926235038000

0926235038000

Unit Price

8
SEAL OIL 12X21X7
OIL SEAL, RH

09282-12009-000   0928212009000

0928212009000

Unit Price

9
GEAR, OIL PUMP DRIVE

16321-05201-000   1632105201000

1632105201000

Unit Price

10
GEAR, PRIMARY DRIVE(NT:17)

21111-05200-000  

21111-05200-0C0
 2111105200000

Unit Price

11
NUT, PRY DRIVE GEAR
NUT

09140-16019-000   0914016019000

0914016019000

Unit Price

12
WASHER
LOCK WASHER

09166-16012-000   0916616012000

0916616012000

Unit Price

13
KEY<br />KEY, GEAR
KEY
KEY, GEAR

09421-04004-000   0942104004000

0942104004000

Unit Price

14
PISTON

12111-05202-000  

12111-05202-0F0
 1211105202000

Unit Price

15
RING SET, PISTON

12140-01410-000   1214001410000

1214001410000

Unit Price

16
PIN, PISTON

12151-05220-000  

12151-05220-0A0
 1215105220000

Unit Price

17
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-14001-000   0938114001000

0938114001000

Unit Price

18
PISTON SET (OS:0.5)

12100-05200-050   1210005200050

1210005200050

Unit Price

18
DISCONTINUE
PISTON SET (OS:1.0)

12100-05200-100   1210005200100

1210005200100
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
