FRONT WHEEL (SEE NOTE) NOTE

HANDLEBAR - CABLES (MODEL Z / D / K / M,GN125R) FOR SUZUKI GN 125 1982

HANDLEBAR - CABLES (MODEL N,GN125ER)

Item numbers

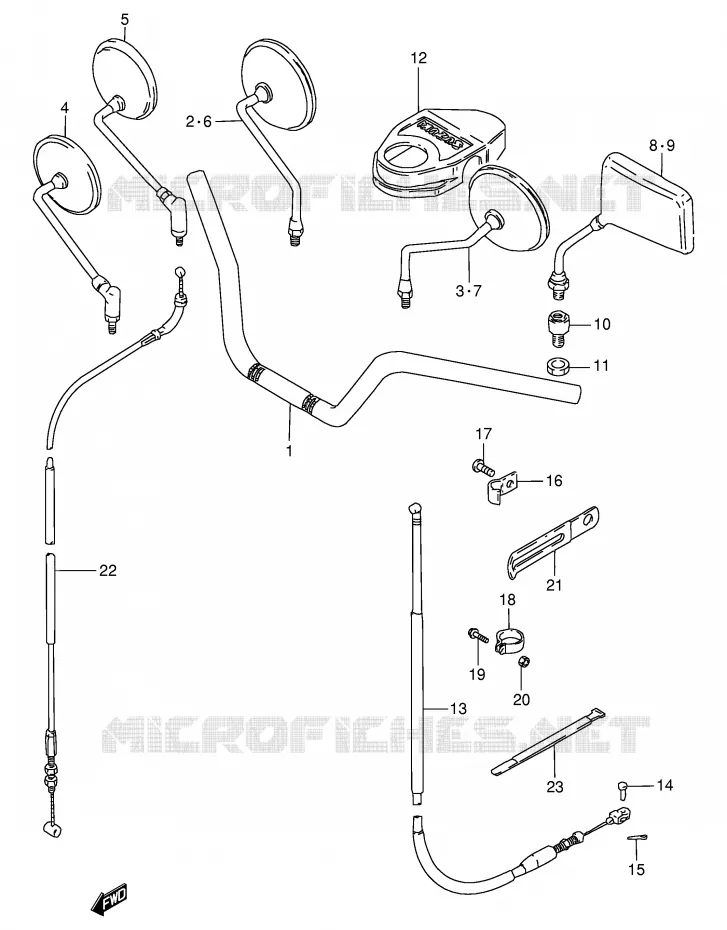

HANDLEBAR - CABLES (MODEL Z/D/K/M,GN125R) Suzuki MOTO 125 GN 1982 GN125EZ(E1)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
16
17
17
18
19
19
20
20
21
22
23
1
DISCONTINUE
HANDLEBAR

56110-05302-000   5611005302000

5611005302000
Not available
2
MIRROR ASSY, RR VIEW, R

56500-44200-000  

56500-44202-000
 5650044200000

Unit Price

3
MIRROR ASSY, RR VIEW, L

56600-44200-000  

56600-44202-000
 5660044200000

Unit Price

4
MIRROR, REAR VIEW

56500-45640-000   5650045640000

5650045640000
Not available
5
MIRROR, REAR VIEW

56500-28601-000   5650028601000

5650028601000
Not available
6
MIRROR, REAR VIEW RH

56500-44220-000   5650044220000

5650044220000
Not available
7
MIRROR, REAR VIEW LH

56600-44220-000   5660044220000

5660044220000
Not available
8
MIRROR, REAR VIEW RH

56500-36500-000   5650036500000

5650036500000
Not available
9
MIRROR, REAR VIEW LH

56600-36500-000   5660036500000

5660036500000
Not available
10
CUSHION ASSY,RR VIEW MIRROR<br />CUSHION
CUSHION ASSY, RR VIEW MIRROR
CUSHION

56700-45400-000   5670045400000

5670045400000

Unit Price

11
NUT

08310-22105-000  

09140-10043-000
 0831022105000

Unit Price

12
COVER, STEERING HEAD

56170-05300-000   5617005300000

5617005300000

Unit Price

13
58200-053G1

58200-05301-000  

5820005301000
Not available
14
CLUTCH CABLE PIN<br />PIN (L:13)
CLUTCH CABLE PIN
PIN (L:13)

09200-06004-000   0920006004000

0920006004000

Unit Price

14
DISCONTINUE<br />PIN (L:15)
DISCONTINUE
PIN (L:15)

09200-06011-000   0920006011000

0920006011000
Not available
15
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

16
CLAMP, CLUTCH CABLE NO.1
CLAMP, NO.1

58626-37400-000  

5862637400000
Not available
17
SCREW, CLAMP

02112-16103-000   0211216103000

0211216103000
Not available
17
SCREW

02152-06108-000   0215206108000

0215206108000
Not available
18
CLAMP, CLUTCH CABLE

58285-05350-000  

58285-05351-000
 5828505350000

Unit Price

19
SCREW

02112-05163-000  

02112-0516B-000
 0211205163000

Unit Price

20
NUT

08310-22055-000  

09140-05006-000
 0831022055000

Unit Price

20
08310-0005A

08310-00053-000  

0831000053000
Not available
21
CLAMP,L:120 T:1.0<br />CLAMP, NO.3
CLAMP, L:120 T:1.0
CLAMP, NO.3

09404-08420-000   0940408420000

0940408420000

Unit Price

22
DISCONTINUE
CABLE ASSY, THROTTLE

58300-05302-000   5830005302000

5830005302000
Not available
23
CL CABLE LOW CLAMP
CL CABLE LOW CLAMP

09407-18301-000  

09407-18302-000
 0940718301000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
