CARBURETOR (MODEL W) REFER TO FIG.6B(C-8) FOR MODEL X/Y

CARBURETOR (MODEL X / Y) FOR SUZUKI RM 125 1997

AIR FILTER

Item numbers

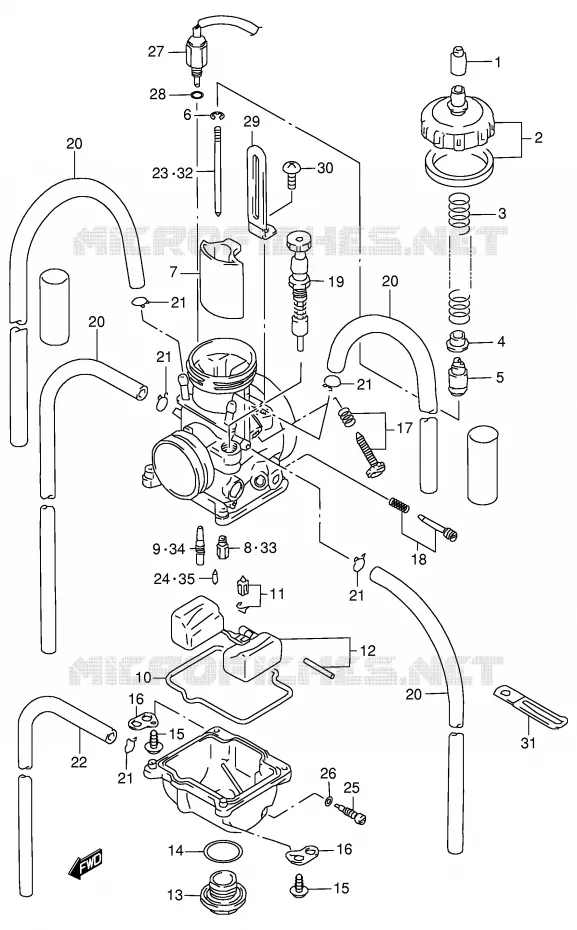

CARBURETOR (MODEL X/Y) Suzuki MOTO 125 RM 1997 RM125V(E2)
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
15
16
16
17
18
19
19
20
20
20
20
21
21
21
21
21
22
23
23
24
25
26
27
27
28
29
30
31
31
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
33
33
33
33
33
33
33
33
33
33
33
33
33
33
33
33
33
33
33
34
34
34
34
34
34
34
34
34
34
35
35
35
1
CAP, CARBURETOR

13681-43D30-000   1368143D30000

1368143D30000

Unit Price

2
DISCONTINUE
CAP SET, TOP

13260-43D30-000   1326043D30000

1326043D30000
Not available
3
DISCONTINUE
SPRING, THROTTLE VALVE

13573-43D30-000   1357343D30000

1357343D30000
Not available
4
COLLAR, THROTTLE VALVE

13424-43D30-000   1342443D30000

1342443D30000

Unit Price

5
HOLDER, CABLE

13581-43D30-000   1358143D30000

1358143D30000

Unit Price

6
CLIP, NEEDLE

13394-28E00-000   1339428E00000

1339428E00000

Unit Price

7
DISCONTINUE
VALVE, THROTTLE

13551-36E00-000   1355136E00000

1355136E00000
Not available
8
JET, MAIN (175)

09491-35009-000   0949135009000

0949135009000

Unit Price

8
JET, MAIN (180)

09491-36008-000   0949136008000

0949136008000

Unit Price

9
JET, SLOW, 50
JET, PILOT (50)

09492-50023-000   0949250023000

0949250023000

Unit Price

9
JET, SLOW, 55
JET, PILOT (55)

09492-55017-000   0949255017000

0949255017000

Unit Price

10
GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13696-44E00-000   1369644E00000

1369644E00000

Unit Price

11
VALVE SET, FLOAT

13370-43D30-000   1337043D30000

1337043D30000

Unit Price

12
DISCONTINUE
FLOAT SET

13240-28E00-000   1324028E00000

1324028E00000
Not available
13
BOLT, DRAIN

13247-28E00-000   1324728E00000

1324728E00000

Unit Price

14
O RING

13246-28E00-000   1324628E00000

1324628E00000

Unit Price

15
SCREW

02112-34163-000  

02112-3416B-000
 0211234163000

Unit Price

16
PLATE

13693-36E00-000   1369336E00000

1369336E00000

Unit Price

17
SCREW SET, STOP

13270-43D30-000   1327043D30000

1327043D30000

Unit Price

18
SCREW SET, AIR

13280-43D30-000   1328043D30000

1328043D30000

Unit Price

19
STARTER VALVE

13410-43D30-000   1341043D30000

1341043D30000

Unit Price

19
DISCONTINUE
STARTER VALVE

13410-36E40-000   1341036E40000

1341036E40000
Not available
20
HOSE (4X7X620)

13686-36E00-000   1368636E00000

1368636E00000

Unit Price

21
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

22
HOSE,3.5*6.5*600<br />HOSE (3.5X6.5X600)
HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600   0935135653600

0935135653600

Unit Price

23
DISCONTINUE
NEEDLE, JET (R1469MS)

13383-28E00-000   1338328E00000

1338328E00000
Not available
23
DISCONTINUE
NEEDLE, JET (R1469L)

13383-36E20-000   1338336E20000

1338336E20000
Not available
24
JET, POWER (55)

09492-55019-000   0949255019000

0949255019000

Unit Price

25
DISCONTINUE
SCREW, DRAIN

13247-44E00-000   1324744E00000

1324744E00000
Not available
26
DISCONTINUE
O RING

13256-44E00-000   1325644E00000

1325644E00000
Not available
27
SOLENOID ASSY

13160-37E01-000   1316037E01000

1316037E01000

Unit Price

27
SOLENOID ASSY

13160-37E00-000   1316037E00000

1316037E00000
Not available
28
O RING

13453-37E00-000   1345337E00000

1345337E00000

Unit Price

29
DISCONTINUE
CLAMP

13451-37E00-000   1345137E00000

1345137E00000
Not available
30
DISCONTINUE
SCREW

13452-37E00-000   1345237E00000

1345237E00000
Not available
31
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

31
CLAMP,L:82<br />CLAMP, CARBURETOR HOSE (L:82)
CLAMP, L:82
CLAMP, CARBURETOR HOSE (L:82)

09404-08206-000   0940408206000

0940408206000

Unit Price

32
DISCONTINUE
NEEDLE, JET (R1469MS)

13383-28E00-000   1338328E00000

1338328E00000
Not available
32
NEEDLE, JET (R1467LS)

13383-36E00-000   1338336E00000

1338336E00000
Not available
32
DISCONTINUE
NEEDLE, JET (R1466MS)

13383-37E00-000   1338337E00000

1338337E00000
Not available
32
DISCONTINUE
NEEDLE, JET (R1469NS)

13383-28E10-000   1338328E10000

1338328E10000
Not available
32
DISCONTINUE
NEEDLE, JET (R1470MS)

13383-28E20-000   1338328E20000

1338328E20000
Not available
32
NEEDLE(R1470NS)
NEEDLE, JET (R1470NS)

13383-28E30-000   1338328E30000

1338328E30000
Not available
32
DISCONTINUE
NEEDLE, JET (R1471MS)

13383-28E40-000   1338328E40000

1338328E40000
Not available
32
DISCONTINUE
NEEDLE, JET (R1471NS)

13383-28E50-000   1338328E50000

1338328E50000
Not available
32
NEEDLE, JET (R1468LS)

13383-36E10-000   1338336E10000

1338336E10000
Not available
32
DISCONTINUE
NEEDLE, JET (R1469LS)

13383-36E20-000   1338336E20000

1338336E20000
Not available
32
DISCONTINUE
NEEDLE, JET (R1470LS)

13383-36E30-000   1338336E30000

1338336E30000
Not available
32
DISCONTINUE
NEEDLE, JET (R1471LS)

13383-36E40-000   1338336E40000

1338336E40000
Not available
32
DISCONTINUE
NEEDLE, JET (R1467KS)

13383-36E50-000   1338336E50000

1338336E50000
Not available
32
NEEDLE, JET (R1468KS)

13383-36E60-000   1338336E60000

1338336E60000
Not available
32
DISCONTINUE
NEEDLE, JET (R1469KS)

13383-36E70-000   1338336E70000

1338336E70000
Not available
32
NEEDLE, JET (R1470KS)

13383-36E80-000   1338336E80000

1338336E80000
Not available
32
DISCONTINUE
NEEDLE, JET (R1471KS)

13383-36E90-000   1338336E90000

1338336E90000
Not available
32
NEEDLE, JET (R1466NS)

13383-37E10-000   1338337E10000

1338337E10000
Not available
32
NEEDLE, JET (R1468NS)

13383-43D30-000   1338343D30000

1338343D30000
Not available
32
DISCONTINUE
NEEDLE, JET (R1468MS)

13383-43D40-000   1338343D40000

1338343D40000
Not available
32
DISCONTINUE
JET NEEDLE (OPT) (R1467NS)

13383-43D50-000   1338343D50000

1338343D50000
Not available
32
NEEDLE, JET (R1467MS)

13383-43D60-000   1338343D60000

1338343D60000
Not available
33
JET, MAIN (145)

09491-29014-000   0949129014000

0949129014000

Unit Price

33
JET, MAIN (150)

09491-30018-000   0949130018000

0949130018000

Unit Price

33
JET, MAIN (152)

09491-30019-000   0949130019000

0949130019000

Unit Price

33
JET, MAIN (155)

09491-31012-000   0949131012000

0949131012000

Unit Price

33
JET, MAIN (158)

09491-31013-000   0949131013000

0949131013000

Unit Price

33
JET, MAIN (160)

09491-32010-000   0949132010000

0949132010000

Unit Price

33
JET, MAIN (162)

09491-32011-000   0949132011000

0949132011000

Unit Price

33
JET, MAIN (165)

09491-33009-000   0949133009000

0949133009000

Unit Price

33
JET, MAIN (168)

09491-33010-000   0949133010000

0949133010000

Unit Price

33
JET, MAIN (172)

09491-34011-000   0949134011000

0949134011000

Unit Price

33
JET, MAIN (175)

09491-35009-000   0949135009000

0949135009000

Unit Price

33
JET, MAIN (178)

09491-35010-000   0949135010000

0949135010000

Unit Price

33
JET, MAIN (180)

09491-36008-000   0949136008000

0949136008000

Unit Price

33
JET, MAIN (185)

09491-37008-000   0949137008000

0949137008000

Unit Price

33
JET, MAIN (190)

09491-38011-000   0949138011000

0949138011000

Unit Price

33
JET, MAIN (195)

09491-39001-000   0949139001000

0949139001000

Unit Price

33
JET, MAIN
JET, MAIN (200)

09491-40013-000   0949140013000

0949140013000

Unit Price

33
JET, MAIN (148)

09491-29015-000   0949129015000

0949129015000
Not available
33
JET, MAIN (170)

09491-34010-000   0949134010000

0949134010000

Unit Price

34
JET, SLOW, 35
JET, PILOT (35)

09492-35019-000   0949235019000

0949235019000

Unit Price

34
JET, SLOW, 40
JET, PILOT (40)

09492-40022-000   0949240022000

0949240022000

Unit Price

34
JET, SLOW
JET, PILOT (45)

09492-45032-000   0949245032000

0949245032000

Unit Price

34
JET, SLOW, 50
JET, PILOT (50)

09492-50023-000   0949250023000

0949250023000

Unit Price

34
JET, SLOW(52)
JET, PILOT (52)

09492-52011-000   0949252011000

0949252011000

Unit Price

34
JET, SLOW, 55
JET, PILOT (55)

09492-55017-000   0949255017000

0949255017000

Unit Price

34
JET, PILOT (58)

09492-58001-000   0949258001000

0949258001000

Unit Price

34
JET, SLOW, 60
JET, PILOT (60)

09492-60016-000   0949260016000

0949260016000

Unit Price

34
JET, PILOT (65)

09492-65008-000   0949265008000

0949265008000
Not available
34
DISCONTINUE
JET, PILOT (70)

09492-70009-000   0949270009000

0949270009000
Not available
35
JET, POWER (55)

09492-55019-000   0949255019000

0949255019000

Unit Price

35
DISCONTINUE
JET, POWER (50)

09492-50025-000   0949250025000

0949250025000
Not available
35
JET, POWER (60)

09492-60018-000   0949260018000

0949260018000
Not available
99x
DISCONTINUE
CARBURETOR ASSY

13200-36E30-000   1320036E30000

1320036E30000
Not available
99x
CARBURETOR ASSY

13200-36E40-000   1320036E40000

1320036E40000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 RM 1997

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
STAND FOOTREST for Suzuki RM 125 1997

STAND - FOOTREST
for Suzuki RM 125 1997

REAR BRAKE for Suzuki RM 125 1997

REAR BRAKE
for Suzuki RM 125 1997

HANDLEBAR for Suzuki RM 125 1997

HANDLEBAR
for Suzuki RM 125 1997

LEVERS HANDGRIPS for Suzuki RM 125 1997

LEVERS - HANDGRIPS
for Suzuki RM 125 1997

FRONT FORK (MODEL T) for Suzuki RM 125 1997

FRONT FORK (MODEL T)
for Suzuki RM 125 1997

FRONT FORK (MODEL V) for Suzuki RM 125 1997

FRONT FORK (MODEL V)
for Suzuki RM 125 1997

FRONT FORK (MODEL W) for Suzuki RM 125 1997

FRONT FORK (MODEL W)
for Suzuki RM 125 1997

FRONT FORK (MODEL X) for Suzuki RM 125 1997

FRONT FORK (MODEL X)
for Suzuki RM 125 1997

FRONT FORK (MODEL Y) for Suzuki RM 125 1997

FRONT FORK (MODEL Y)
for Suzuki RM 125 1997

STEERING COLUMN (MODEL T/V/W) for Suzuki RM 125 1997

STEERING COLUMN (MODEL T / V / W)
for Suzuki RM 125 1997

STEERING COLUMN (MODEL X/Y) for Suzuki RM 125 1997

STEERING COLUMN (MODEL X / Y)
for Suzuki RM 125 1997

FRONT WHEEL (MODEL T) for Suzuki RM 125 1997

FRONT WHEEL (MODEL T)
for Suzuki RM 125 1997

FRONT WHEEL (MODEL V/W/X/Y) for Suzuki RM 125 1997

FRONT WHEEL (MODEL V / W / X / Y)
for Suzuki RM 125 1997

FRONT CALIPER for Suzuki RM 125 1997

FRONT CALIPER
for Suzuki RM 125 1997

FRONT MASTER CYLINDER (MODEL T/V/W) for Suzuki RM 125 1997

FRONT MASTER CYLINDER (MODEL T / V / W)
for Suzuki RM 125 1997

FRONT MASTER CYLINDER (MODEL X/Y) for Suzuki RM 125 1997

FRONT MASTER CYLINDER (MODEL X / Y)
for Suzuki RM 125 1997

SWINGARM (MODEL T) for Suzuki RM 125 1997

SWINGARM (MODEL T)
for Suzuki RM 125 1997

SWINGARM (MODEL V) for Suzuki RM 125 1997

SWINGARM (MODEL V)
for Suzuki RM 125 1997

SWINGARM (MODEL W) for Suzuki RM 125 1997

SWINGARM (MODEL W)
for Suzuki RM 125 1997

SWINGARM (MODEL X) for Suzuki RM 125 1997

SWINGARM (MODEL X)
for Suzuki RM 125 1997

SWINGARM (MODEL Y) for Suzuki RM 125 1997

SWINGARM (MODEL Y)
for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL T) for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL T)
for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL V) for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL V)
for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL W) for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL W)
for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL X) for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL X)
for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL Y) for Suzuki RM 125 1997

SHOCK ABSORBER (MODEL Y)
for Suzuki RM 125 1997

SHOCK ABSORBER LINKAGE (MODEL T/V) for Suzuki RM 125 1997

SHOCK ABSORBER LINKAGE (MODEL T / V)
for Suzuki RM 125 1997

SHOCK ABSORBER LINKAGE (MODEL W/X) for Suzuki RM 125 1997

SHOCK ABSORBER LINKAGE (MODEL W / X)
for Suzuki RM 125 1997

SHOCK ABSORBER LINKAGE (MODEL Y) for Suzuki RM 125 1997

SHOCK ABSORBER LINKAGE (MODEL Y)
for Suzuki RM 125 1997

REAR WHEEL (MODEL T/V/W/X) for Suzuki RM 125 1997

REAR WHEEL (MODEL T / V / W / X)
for Suzuki RM 125 1997

REAR WHEEL (MODEL Y) for Suzuki RM 125 1997

REAR WHEEL (MODEL Y)
for Suzuki RM 125 1997

REAR CALIPER for Suzuki RM 125 1997

REAR CALIPER
for Suzuki RM 125 1997

REAR BRAKE MASTER CYLINDER (MODEL T) for Suzuki RM 125 1997

REAR BRAKE MASTER CYLINDER (MODEL T)
for Suzuki RM 125 1997

REAR BRAKE MASTER CYLINDER (MODEL V/W/X/Y) for Suzuki RM 125 1997

REAR BRAKE MASTER CYLINDER (MODEL V / W / X / Y)
for Suzuki RM 125 1997

Suzuki 125 RM 1997

Choose your Suzuki 125 1997 RM model

125 RM 1997 RM125V(E2)

RM 125

Suzuki RM

Displacement: 125 cc
Year: 1997
Model code RM125V(E2)
Drapeau EUROPE
Europe
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
