Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH (MODEL T / V) REFER TO FIG.10A(D-3) FOR MODEL W/X/Y

CLUTCH (MODEL W / X / Y) FOR SUZUKI RM 125 1997

TRANSMISSION (MODEL T / V) REFER TO FIG.11A(D-6) FOR MODEL W/X/Y

Item numbers

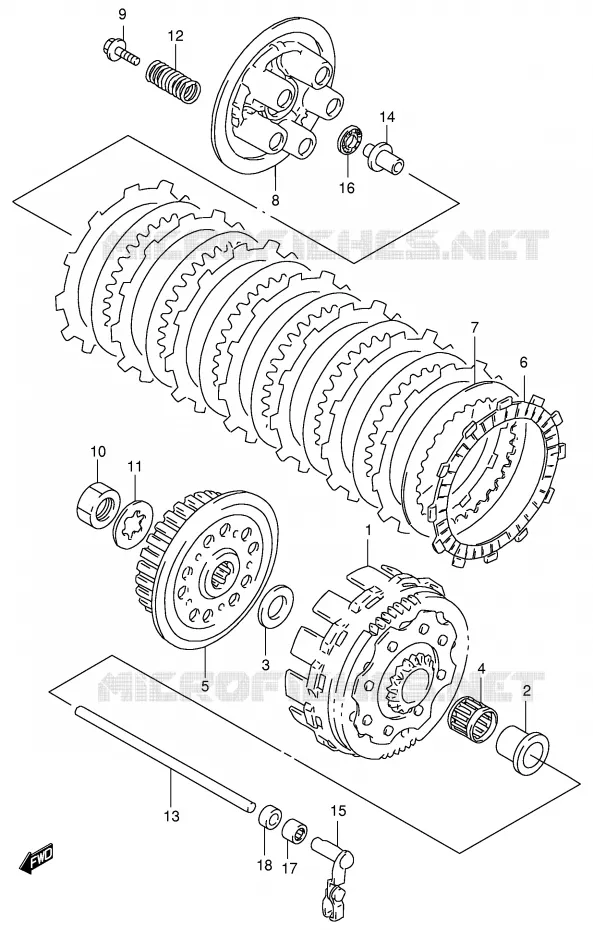

CLUTCH (MODEL W/X/Y) Suzuki MOTO 125 RM 1997 RM125V(E2)
1
2
3
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
1
DISCONTINUE
GEAR ASSY, PRIMARY DRIVEN

21200-43D04-000   2120043D04000

2120043D04000
Not available
2
SPACER, PRIMARY DRIVEN GEAR
SPACER

21251-43D00-000   2125143D00000

2125143D00000

Unit Price

3
WASHER THRUST
WASHER

08211-20363-000   0821120363000

0821120363000

Unit Price

4
BEARING
BEARING (25X30X22)

09263-25046-000   0926325046000

0926325046000

Unit Price

5
HUB, CLUTCH SLEEVE

21411-43D04-000   2141143D04000

2141143D04000

Unit Price

6
PLATE, CLUTCH DRIVE

21441-36E00-000  

21441-10H00-000
 2144136E00000

Unit Price

7
PLATE, CLUTCH DRIVEN(T:1.4)

21451-36E00-000  

21451-43D00-000
 2145136E00000

Unit Price

8
DISC, CLUTCH PRESSURE

21462-43D01-000   2146243D01000

2146243D01000

Unit Price

9
BOLT (5X18)

09116-05019-000   0911605019000

0911605019000

Unit Price

10
DRIVE SPROCKET NUT<br />NUT
DRIVE SPROCKET NUT
NUT

09140-20001-000   0914020001000

0914020001000

Unit Price

11
WASHER
WASHER

09167-20006-000   0916720006000

0916720006000

Unit Price

12
SPRING

09440-18030-000   0944018030000

0944018030000

Unit Price

12
DISCONTINUE
SPRING

09440-18026-000   0944018026000

0944018026000
Not available
13
DISCONTINUE
ROD, CLUTCH PUSH

23111-36E10-000   2311136E10000

2311136E10000
Not available
14
PIECE, CLUTCH PUSH

23121-37E01-000  

23121-37F00-000
 2312137E01000

Unit Price

15
CAMSHAFT, CLUTCH RELEASE

23200-36E10-000  

23200-36E11-000
 2320036E10000

Unit Price

16
RD SFT ARM PIN BRG
BEARING (10.1X22X2.8)

09263-10002-000   0926310002000

0926310002000

Unit Price

17
BEARING
BEARING (10X14X15)

09263-10007-000   0926310007000

0926310007000

Unit Price

18
OIL SEAL<br />SEAL (10X17X5.0)
OIL SEAL
SEAL (10X17X5.0)

09285-10004-000   0928510004000

0928510004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
