BATTERY

RIGHT SWITCH (MODEL E E18 F.NO.106210- / MODEL F / G) FOR SUZUKI TS-X 125 1986

CYLINDER

GRIP, THROTTLE

57110-01A00-000 5711001A00000

Not available

ROTOR, THROTTLE GRIP
ROTOR

57114-20410-000 5711420410000

$16,97

Unit Price

DISCONTINUE
CASE ASSY, THROTTLE

57100-20411-000 5710020411000

Not available

GUIDE PIECE, THROTTLE
.PIECE, GUIDE

57122-20410-000 5712220410000

$8,97

Unit Price

COVER, THROTTLE CASE
.COVER

57129-20411-000 5712920411000

$17,97

Unit Price

.SCREW

02132-04068-000 0213204068000

Not available

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

LEVER, BRAKE (BLACK)

57421-13000-000 5742113000000

Not available

SCREW

57431-13010-000

09139-06114-000

$10,97

Unit Price

NUT

08319-21065-000

08319-21063-000

$3,97

Unit Price

SWITCH ASSY, STOP

57460-13000-000 5746013000000

Not available

FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000 0940712402000

$5,97

Unit Price

GUARD, KNUCKLE RH (BLUE)

57341-14A00-08Y 5734114A0008Y

Not available

GUARD, KNUCKLE RH (RED)

57341-14A00-14C 5734114A0014C

Not available

DISCONTINUE
GUARD, KNUCKLE RH (WHITE)

57341-14A00-14L 5734114A0014L

Not available

GUARD, KNUCKLE RH (YELLOW)

57341-14A00-163 5734114A00163

Not available

GUARD, KNUCKLE RH (BLACK)

57341-14A00-21C 5734114A0021C

Not available

WASHER

09169-06033-000 0916906033000

$2,97

Unit Price

CLUTCH REL WASHER
WASHER

09160-06019-000 0916006019000

$2,97

Unit Price

NUT

08319-21068-000

08319-2106A-000

$3,97

Unit Price

09169-10024
WASHER

09169-10010-000 0916910010000

BOLT, LEVER PIVOT
BOLT

57431-14A00-000 5743114A00000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

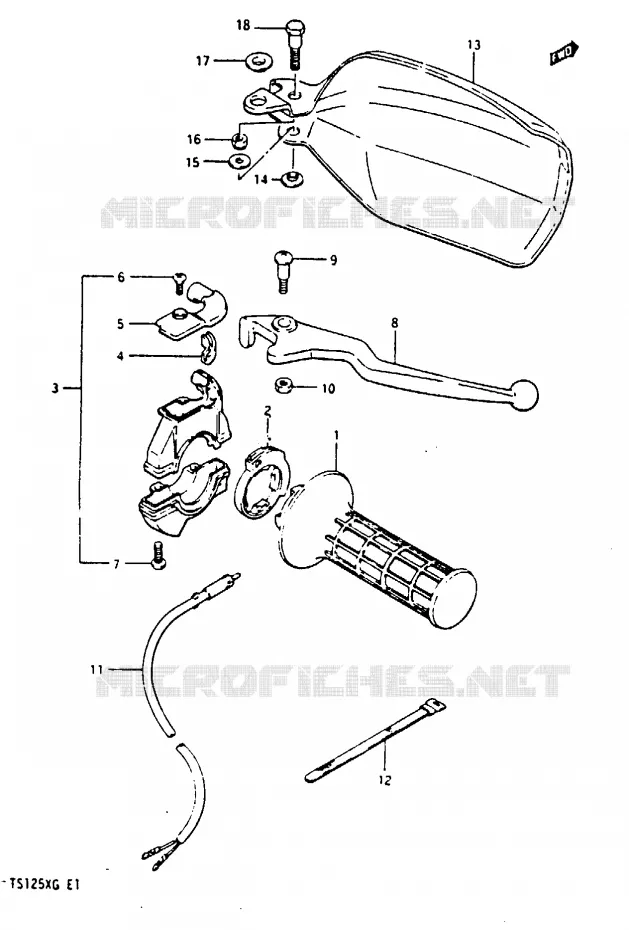

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RIGHT SWITCH (MODEL E E18 F.NO.106210- / MODEL F / G) of your Suzuki TS 125 X of TS-X. Let us know if you have any questions.
