CYLINDER

CASING FOR SUZUKI TS-X 125 1986

CASING

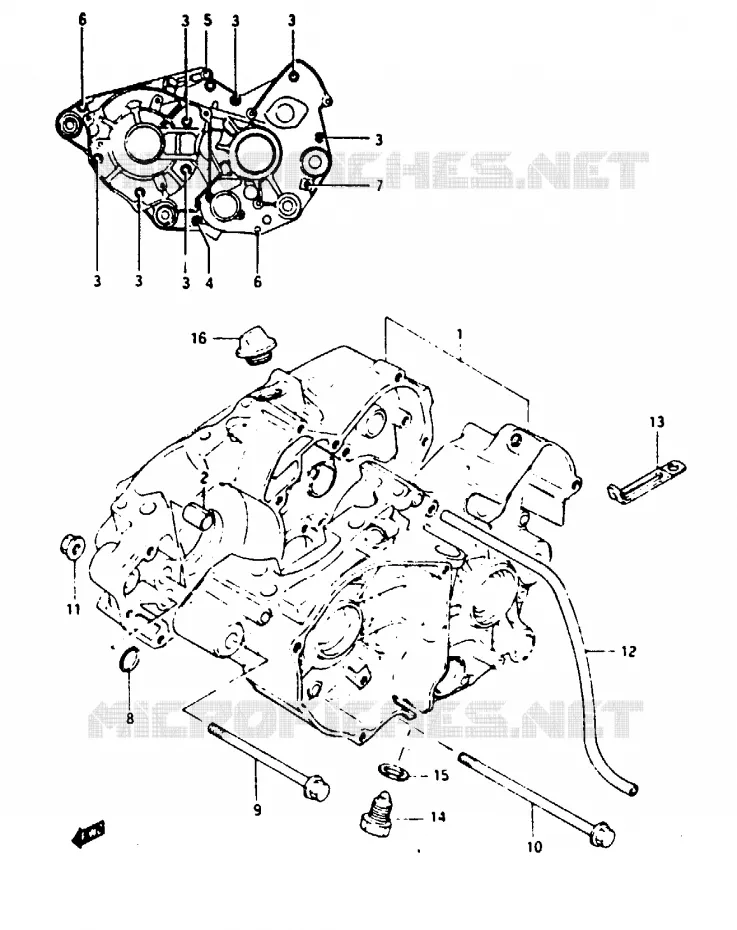

CASING Suzuki MOTO 125 TS-X 1986 TS125XUG(E/F/G)
1
CRANKCASE SET

11305-01890-000   1130501890000

1130501890000
Not available
2
PIN

09206-13001-000  

04211-13189-000
 0920613001000

Unit Price

3
SCREW

02112-06455-000  

02112-06453-000
 0211206455000

Unit Price

4
SCREW

02112-06605-000  

02112-06603-000
 0211206605000

Unit Price

5
SCREW

02112-06654-000  

02112-06653-000
 0211206654000

Unit Price

6
SCREW

02112-06705-000  

02112-06703-000
 0211206705000

Unit Price

7
SCREW

02112-06755-000  

02112-06753-000
 0211206755000

Unit Price

8
DISCONTINUE
.O RING

09280-16010-000   0928016010000

0928016010000
Not available
9
BOLT
BOLT (8*100)

09103-08070-000   0910308070000

0910308070000

Unit Price

10
DISCONTINUE
BOLT (8*125)

09103-08106-000   0910308106000

0910308106000
Not available
11
NUT

08319-31088-000   0831931088000

0831931088000
Not available
12
HOSE, BREATHER (L:440@R330)

09343-04046-000   0934304046000

0934304046000
Not available
13
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

14
PLUG, OIL DRAIN

09247-14020-000   0924714020000

0924714020000
Not available
15
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

16
PLUG SET
PLUG SET

09200-20810-000  

09200-20811-000
 0920020810000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki TS 125 X of TS-X. Let us know if you have any questions.
