Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK

FRAME FOR SUZUKI BURGMAN 125 2018

BACKREST

Item numbers

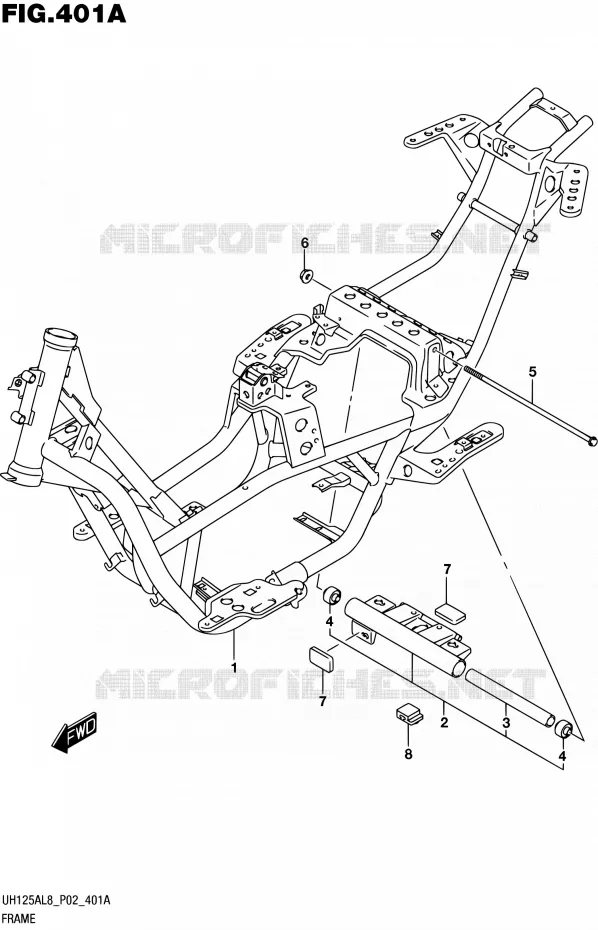

FRAME Suzuki SCOOTER 125 BURGMAN 2018 UH125AL8 P02
1
2
3
4
4
5
6
7
7
8
1
FRAME COMP
FRAME

41100-12J40-000   4110012J40000

4110012J40000

Unit Price

2
BRACKET SET, CRANKCASE

41180-12830-000   4118012830000

4118012830000

Unit Price

3
SPACER, CRANKCASE BRKT
.SPACER, BRACKET CENTER

41170-12J00-000   4117012J00000

4117012J00000

Unit Price

4
.BUSH

41184-12J00-000   4118412J00000

4118412J00000

Unit Price

5
BOLT (12X307)

09103-12062-000   0910312062000

0910312062000

Unit Price

6
NUT
NUT

08319-3112A-000   083193112A000

083193112A000

Unit Price

7
CUSHION, SWING STOP

41185-49F00-000   4118549F00000

4118549F00000

Unit Price

8
CUSHION, SWING STOP NO.2

41187-03H00-000   4118703H00000

4118703H00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 125 BURGMAN 2018

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 125 BURGMAN 2018

Select your Suzuki 2018 model

125 BURGMAN 2018 UH125AL8 P02

BURGMAN 125

Suzuki BURGMAN

Displacement: 125 cc
Year: 2018
Model code UH125AL8 P02
Color: # Metallic Matt Black No.2 (YKV)
# Metallic Matt Platinum Silver (ZRP)
# Brilliant White (YUH)
