Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL PUMP

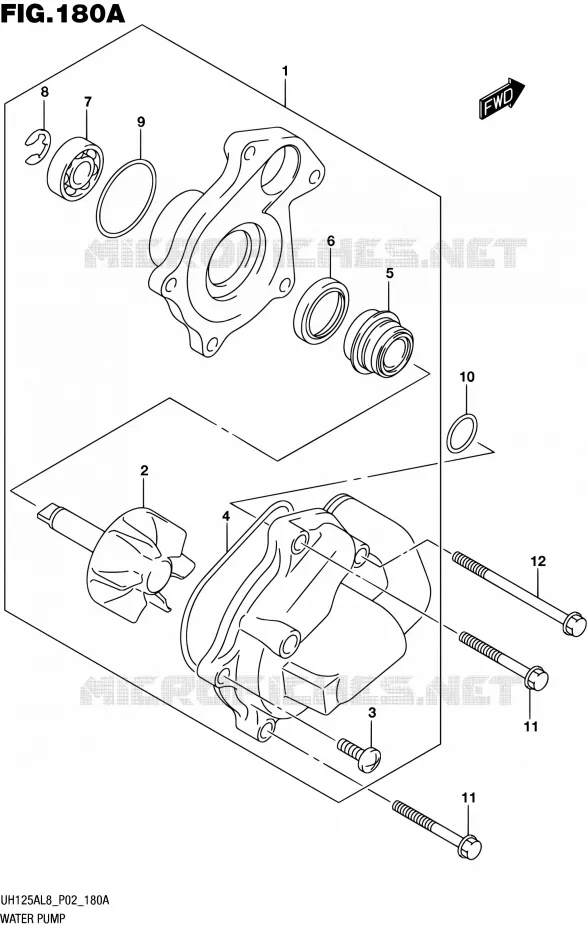

WATER PUMP FOR SUZUKI BURGMAN 125 2018

RADIATOR

Item numbers
WATER PUMP Suzuki SCOOTER 125 BURGMAN 2018 UH125AL8 P02
1
2
3
4
5
6
7
8
9
10
11
11
12
1
DISCONTINUE
PUMP ASSY, WATER

17400-21F30-000  

1740021F30000
Not available
2
.IMPELLER

17491-21F00-000   1749121F00000

1749121F00000

Unit Price

3
.SCREW
.SCREW

02112-0616A-000   021120616A000

021120616A000

Unit Price

4
O RING

17418-14F00-000  

17418-14F01-000
 1741814F00000

Unit Price

5
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F00-000  

17470-02F11-000
 1747002F00000

Unit Price

6
SEAL, OIL
.OIL SEAL

17461-01H00-000   1746101H00000

1746101H00000

Unit Price

7
.BEARING (10X26X8)
.BEARING (10X26X8)

09262-10014-000   0926210014000

0926210014000

Unit Price

8
.E RING
.E RING

08332-1108A-000   083321108A000

083321108A000

Unit Price

9
O RING,WATER PUMP HOLDER<br />.O RING
O RING, WATER PUMP HOLDER
.O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

10
OIL PLUG O RING

09280-22L01-000  

09280-22001-000
 0928022L01000

Unit Price

11
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

12
BOLT

01547-0655A-000   015470655A000

015470655A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 125 BURGMAN 2018

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 125 BURGMAN 2018

Select your Suzuki 2018 model

125 BURGMAN 2018 UH125AL8 P02

BURGMAN 125

Suzuki BURGMAN

Displacement: 125 cc
Year: 2018
Model code UH125AL8 P02
Color: # Metallic Matt Black No.2 (YKV)
# Metallic Matt Platinum Silver (ZRP)
# Brilliant White (YUH)
