STARTER MOTOR CLUTCH

CAM SHAFT - VALVE FOR SUZUKI CS 125 1983

TIMING

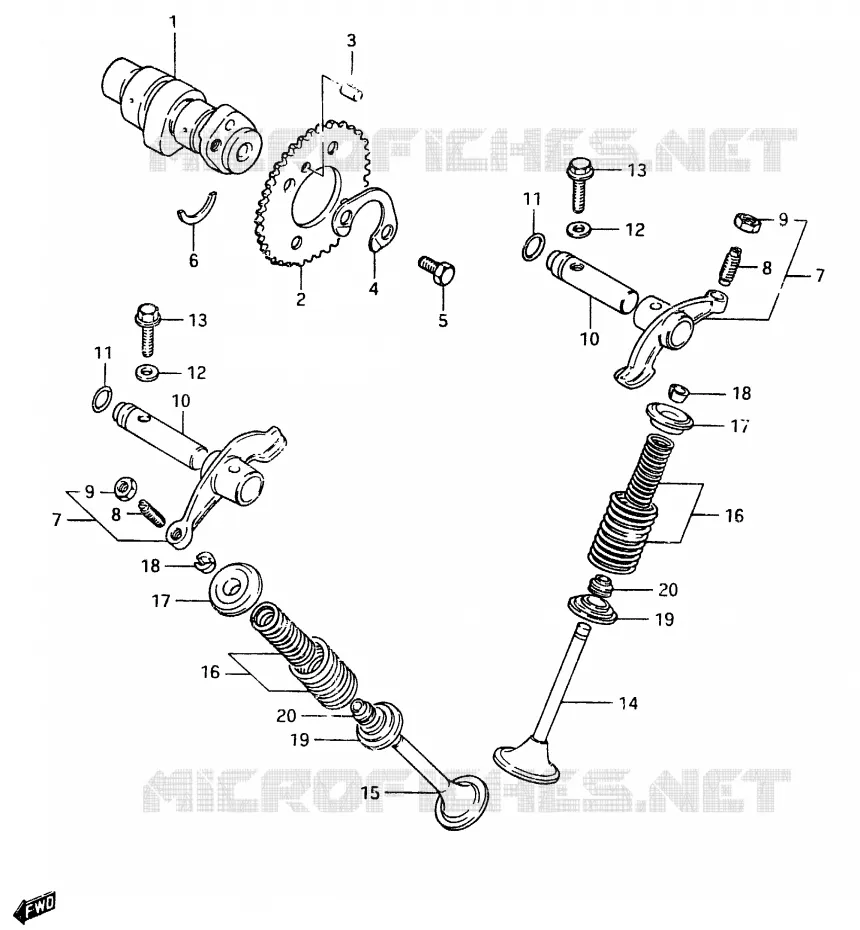

CAM SHAFT - VALVE Suzuki SCOOTER 125 CS 1983 CS125D
1
CAM SHAFT

12711-01400-000   1271101400000

1271101400000
Not available
1
CAM SHAFT

12711-01410-000   1271101410000

1271101410000
Not available
2
SPROCKET, CAMSHAFT
SPROCKET, CAM SHAFT (NT:32)

12741-05201-000   1274105201000

1274105201000

Unit Price

3
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

4
DISCONTINUED

12747-05200-000   1274705200000

1274705200000
Not available
5
BOLT, SPROCKET
BOLT

09111-06032-000   0911106032000

0911106032000

Unit Price

6
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

7
ARM ASSY, VALVE ROCKER

12840-05200-000  

12850-25C00-000
 1284005200000

Unit Price

8
DISCONTINUED

12842-32410-000   1284232410000

1284232410000
Not available
9
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

10
SHAFT, VALVE ROCKET
SHAFT, ROCKER ARM

12861-05201-000   1286105201000

1286105201000

Unit Price

11
O RING, ROCKER SHAFT

09280-09004-000  

09280-09005-000
 0928009004000

Unit Price

12
GASKET

09168-06015-000  

0916806015000
Not available
13
BOLT (6*25)

01517-06258-000   0151706258000

0151706258000
Not available
14
DISCONTINUE
VALVE, INTAKE (OD:30)

12911-05211-000   1291105211000

1291105211000
Not available
15
DISCONTINUE
VALVE, EXHAUST (OD:26)

12912-05211-000   1291205211000

1291205211000
Not available
16
SPRING SET, VALVE

12920-05210-000   1292005210000

1292005210000

Unit Price

17
RETAINER, VALVE SPRING

12931-49200-000  

12931-49201-000
 1293149200000

Unit Price

18
COTTER VALVE<br />COTTER
COTTER VALVE
COTTER

12932-49200-000   1293249200000

1293249200000

Unit Price

19
SEAT, VALVE SPRING

12933-49200-000  

12933-49201-000
 1293349200000

Unit Price

20
SEAL, OIL(5.5X11X8.2)

09289-05003-000  

09289-05015-000
 0928905003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT - VALVE of your Suzuki CS 125 of CS. Let us know if you have any questions.

Genuine parts for Suzuki 125 CS 1983
