TRANSMISSION (2)

TRANSMISSION (3) FOR SUZUKI CS 125 1983

STAND FIG.37 (F-5) : E22

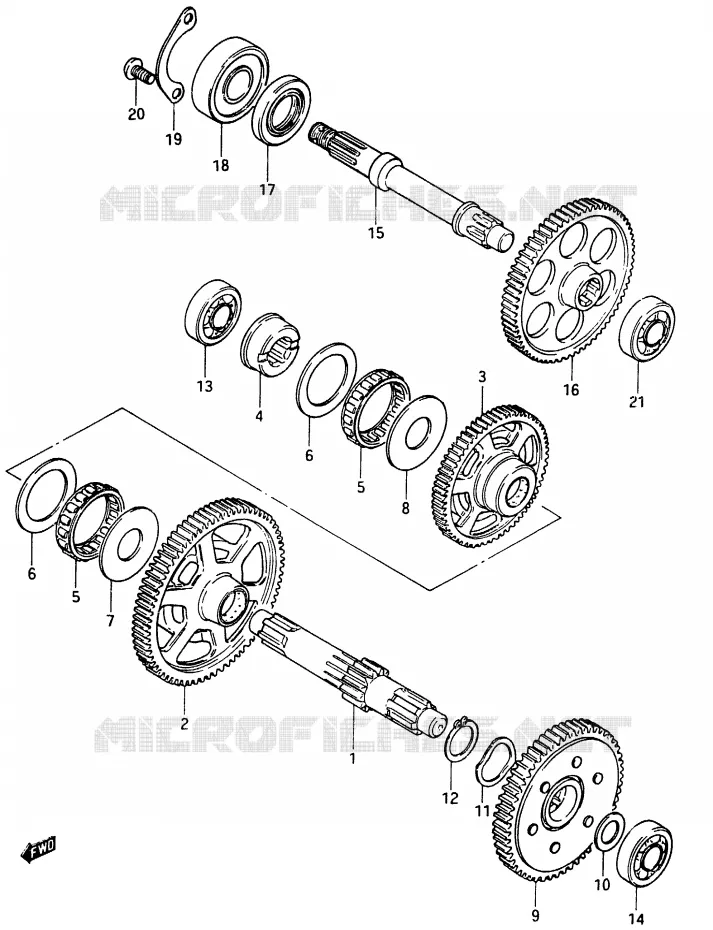

TRANSMISSION (3) Suzuki SCOOTER 125 CS 1983 CS125D
1
SHAFT, DRIVE

24131-01403-000   2413101403000

2413101403000
Not available
2
GEAR, 1ST DRIVEN

24310-01402-000   2431001402000

2431001402000
Not available
3
GEAR, 2ND DRIVEN

24320-01404-000   2432001404000

2432001404000
Not available
4
INNER, OVERRUN NO.2

21272-01401-000   2127201401000

2127201401000
Not available
5
DISCONTINUE
OVERRUN ONE-WAY ASSY, NO.2

21273-01401-000   2127301401000

2127301401000
Not available
6
WASHER (37.3X52X1)

09160-37005-000   0916037005000

0916037005000
Not available
7
WASHER (20X53.5X2)

09160-20039-000   0916020039000

0916020039000
Not available
8
WASHER (20X53.5X2)

09160-20039-000   0916020039000

0916020039000
Not available
8
WASHER (20X53.5X1.8)

09160-20049-000   0916020049000

0916020049000
Not available
9
GEAR, 3RD DRIVEN

24330-01402-000   2433001402000

2433001402000
Not available
10
THRUST WASHER

08211-15262-000   0821115262000

0821115262000
Not available
11
WAVE WASHER

09164-20006-000   0916420006000

0916420006000
Not available
12
CIRCLIP

08331-11209-000  

08331-31206-000
 0833111209000

Unit Price

13
BEARING

08140-62020-000   0814062020000

0814062020000
Not available
14
BEARING(15X35X11)

08110-62020-000  

09262-15031-000
 0811062020000

Unit Price

15
SHAFT, REAR AXLE

27151-01404-000   2715101404000

2715101404000
Not available
16
GEAR, FINAL DRIVEN

24921-01403-000   2492101403000

2492101403000
Not available
17
DISCONTINUE
OIL SEAL (29X42X6)

09283-29003-000   0928329003000

0928329003000
Not available
18
09262-22027
DISCONTINUED

09262-22015-000  

0926222015000
Not available
19
RETAINER, BEARING RH

24751-01400-000   2475101400000

2475101400000
Not available
20
.SCREW

02112-06168-000   0211206168000

0211206168000
Not available
21
BEARING(15X35X11)

08110-62020-000  

09262-15031-000
 0811062020000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (3) of your Suzuki CS 125 of CS. Let us know if you have any questions.
