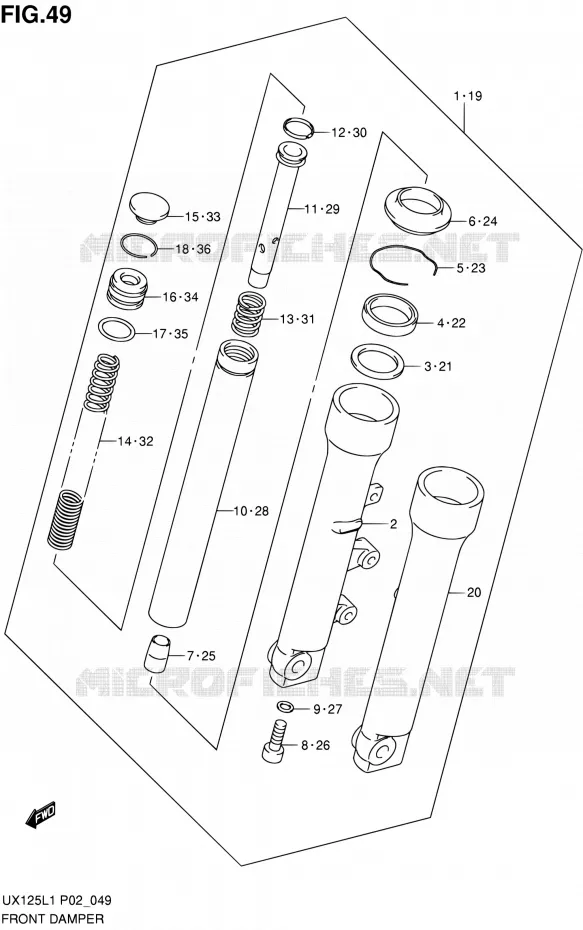

FRONT FORK FOR SUZUKI SIXTEEN 125 2012

STEERING COLUMN

Item numbers

DAMPER ASSY, FRONT FORK RH

51103-20H01-000 5110320H01000

Not available

.TUBE, OUTER, RH

51131-20H01-000 5113120H01000

Not available

.RING, BACK UP

51168-20H00-000 5116820H00000

Not available

.SEAL, OIL

51153-C26-B00J000 51153C26B00J000

Not available

.RING, SNAP

51156-C33-130J000 51156C33130J000

Not available

.SEAL, DUST

51571-C26-B00J000 51571C26B00J000

Not available

.PIECE, OIL LOCK

51195-20H00-000 5119520H00000

Not available

.BOLT

51147-C48-130J000 51147C48130J000

Not available

.GASKET

51148-C31-030J000 51148C31030J000

Not available

.TUBE, INNER

51110-20H00-000 5111020H00000

Not available

.CYLINDER

51146-20H01-000 5114620H01000

Not available

.RING, PISTON

51196-20H00-000 5119620H00000

$7,97

Unit Price

.SPRING, REBOUND

51177-C15-500J000 51177C15500J000

Not available

.SPRING, FRONT

51171-20H01-000 5117120H01000

Not available

.CAP

51189-20H00-000 5118920H00000

Not available

.CAP

51175-20H00-000 5117520H00000

Not available

.O RING

51117-20H00-000 5111720H00000

$21,97

Unit Price

RING, SNAP
.RING, STOPPER

51156-20H00-000 5115620H00000

$6,97

Unit Price

DAMPER ASSY, FRONT FORK LH

51104-20H01-000 5110420H01000

Not available

.TUBE, OUTER, LH

51141-20H01-000 5114120H01000

Not available

.RING, BACK UP

51168-20H00-000 5116820H00000

Not available

.SEAL, OIL

51153-C26-B00J000 51153C26B00J000

Not available

.RING, SNAP

51156-C33-130J000 51156C33130J000

Not available

.SEAL, DUST

51571-C26-B00J000 51571C26B00J000

Not available

.PIECE, OIL LOCK

51195-20H00-000 5119520H00000

Not available

.BOLT

51147-C48-130J000 51147C48130J000

Not available

.GASKET

51148-C31-030J000 51148C31030J000

Not available

.TUBE, INNER

51110-20H00-000 5111020H00000

Not available

.CYLINDER

51146-20H01-000 5114620H01000

Not available

.RING, PISTON

51196-20H00-000 5119620H00000

$7,97

Unit Price

.SPRING, REBOUND

51177-C15-500J000 51177C15500J000

Not available

.SPRING, FRONT

51171-20H01-000 5117120H01000

Not available

.CAP

51189-20H00-000 5118920H00000

Not available

.CAP

51175-20H00-000 5117520H00000

Not available

.O RING

51117-20H00-000 5111720H00000

$21,97

Unit Price

RING, SNAP
.RING, STOPPER

51156-20H00-000 5115620H00000

$6,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki SIXTEEN 125 of SIXTEEN. Let us know if you have any questions.
