Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STAND

HANDELBAR FOR SUZUKI SIXTEEN 125 2012

HANDGRIPS - LEVERS

Item numbers

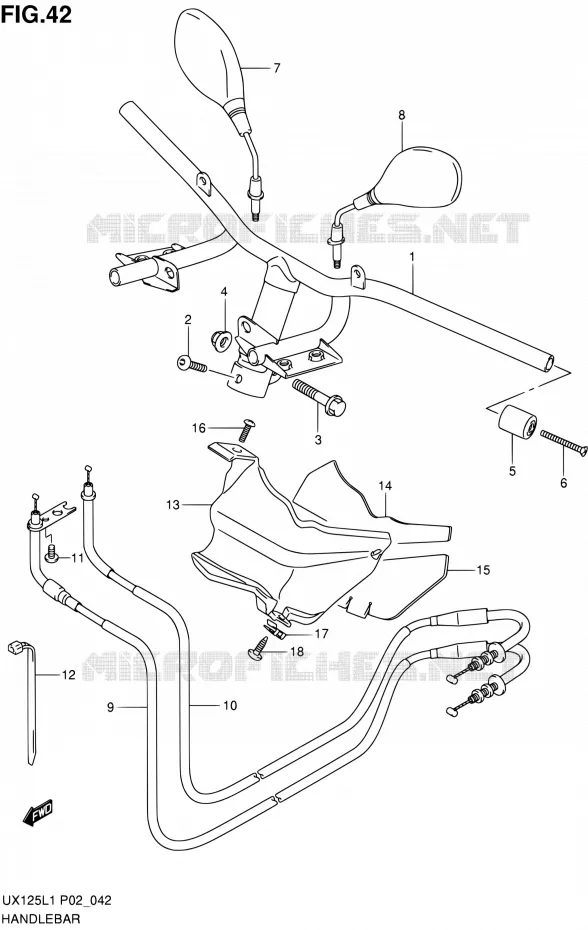

HANDELBAR Suzuki SCOOTER 125 SIXTEEN 2012 UX125L1(P19)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
1
HANDLEBAR

56110-20H01-ENM   5611020H01ENM

5611020H01ENM
Not available
2
SCREW
BOLT (8X35)

09120-08016-000  

0912008016000
Not available
3
BOLT

09689-10116-000   0968910116000

0968910116000
Not available
4
NUT

D8311-7910A-000   D83117910A000

D83117910A000
Not available
5
BALANCER SET, HANDLEBAR

56278-32E00-000  

56200-32823-000
 5627832E00000

Unit Price

6
SCREW

D2126-0650B-000   D21260650B000

D21260650B000
Not available
7
MIRROR, RH

56500-39CF0-000   5650039CF0000

5650039CF0000
Not available
8
MIRROR, LH

56600-39CF0-000   5660039CF0000

5660039CF0000
Not available
9
CABLE, THROTTLE NO.1

58300-20H20-000   5830020H20000

5830020H20000
Not available
10
CABLE, THROTTLE NO.2

58300-20H30-000   5830020H30000

5830020H30000
Not available
11
SCREW, CABLE

D2116-0512B-000   D21160512B000

D21160512B000
Not available
12
DISCONTINUE
CLAMP

D9436-01425-000  

D943601425000
Not available
12
CLAMP

D9448-02875-000   D944802875000

D944802875000
Not available
13
COVER, THROTTLE CABLE

58373-20H02-000   5837320H02000

5837320H02000
Not available
14
SHIELD, UPPER

58374-20H01-000   5837420H01000

5837420H01000
Not available
15
SHIELD, LOWER

58375-20H01-000   5837520H01000

5837520H01000
Not available
16
SCREW
SCREW

02142-0516B-000   021420516B000

021420516B000

Unit Price

17
NUT, FR BUMPER
NUT

09148-05047-000   0914805047000

0914805047000

Unit Price

18
SCREW<br />SCREW, LOWER
SCREW
SCREW, LOWER

03541-0520B-000   035410520B000

035410520B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDELBAR of your Suzuki SIXTEEN 125 of SIXTEEN. Let us know if you have any questions.

Genuine parts for Suzuki 125 SIXTEEN 2012

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 SIXTEEN 2012

Select your Suzuki 2012 model

125 SIXTEEN 2012 UX125L1(P19)

SIXTEEN 125

Suzuki SIXTEEN

Displacement: 125 cc
Year: 2012
Model code UX125L1(P19)
