CYLINDER

CRANKCASE FOR SUZUKI B-KING 1300 2012

CRANKCASE COVER

Item numbers

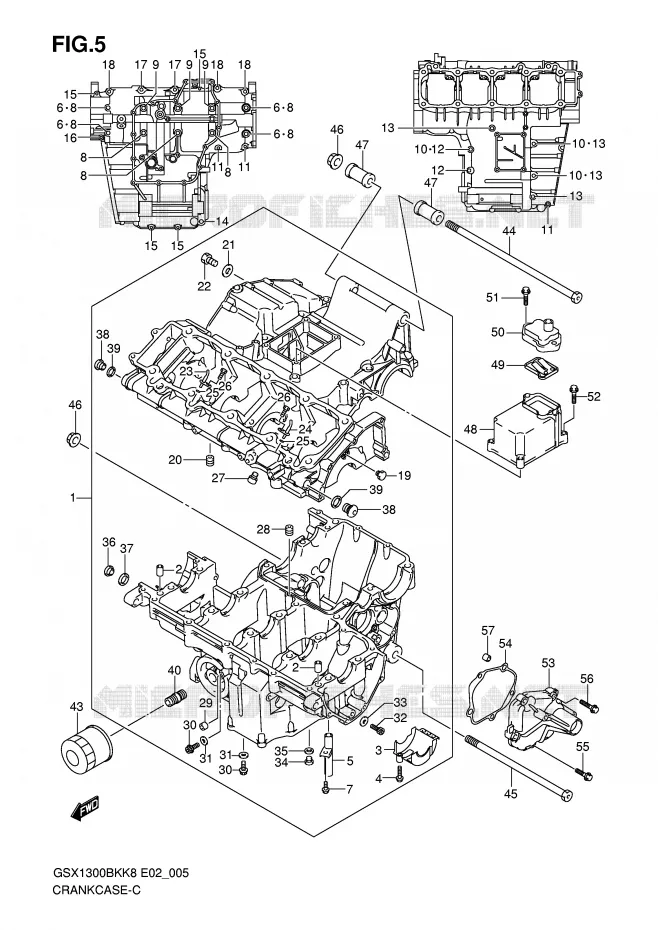

CRANKCASE Suzuki MOTO 1300 B-KING 2012 GSX1300BKAU2K8(E2)
1
2
2
3
4
5
6
6
6
6
7
8
8
8
8
8
8
8
9
9
9
10
10
10
11
11
11
12
12
13
13
13
13
14
15
15
15
15
16
17
17
18
18
18
19
20
21
22
23
24
25
25
26
26
27
28
29
30
30
31
31
32
33
34
35
36
37
38
38
39
39
40
43
44
45
46
46
47
47
48
49
50
51
52
53
54
55
56
57
1
CRANKCASE SET

11300-23871-000   1130023871000

1130023871000
Not available
2
PIN,CRANKCASE<br />PIN
PIN, CRANKCASE
PIN

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

3
SEPARATOR, OIL

11323-24F10-000   1132324F10000

1132324F10000

Unit Price

4
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

5
UNION, BREATHER
UNION, BREATHER OIL

11328-24F00-000   1132824F00000

1132824F00000

Unit Price

6
GASKET 10.2X20X2.3<br />GASKET, CRANKCASE BOLT (10.2X20X2.3)
GASKET 10.2X20X2.3
GASKET, CRANKCASE BOLT (10.2X20X2.3)

09168-10031-000   0916810031000

0916810031000

Unit Price

7
BOLT
BOLT, BREATHER UNION

01547-0612A-000   015470612A000

015470612A000

Unit Price

8
BOLT (9X95)
BOLT (9X95)

09103-09008-000   0910309008000

0910309008000

Unit Price

9
BOLT (9X115)

09103-09010-000   0910309010000

0910309010000

Unit Price

10
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

11
BOLT
BOLT

01547-0650A-000   015470650A000

015470650A000

Unit Price

12
BOLT

01550-0865A-000   015500865A000

015500865A000

Unit Price

13
BOLT

01550-0880A-000   015500880A000

015500880A000

Unit Price

14
BOLT

01550-1060A-000   015501060A000

015501060A000

Unit Price

15
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

16
BOLT
BOLT

01547-0660A-000  

01547-0660B-000
 015470660A000

Unit Price

17
BOLT(8X60)
BOLT (8X50)

09103-08155-000   0910308155000

0910308155000

Unit Price

18
BOLT(8X50)
BOLT (8X60)

09103-08355-000   0910308355000

0910308355000

Unit Price

19
JET, MAGNETO COOLING
JET, MAGNETO COOLING

11393-33E01-000   1139333E01000

1139333E01000

Unit Price

20
JET, AIR(100)
JET, T/M COOLING

09493-20012-000   0949320012000

0949320012000

Unit Price

21
GASKET<br />GASKET, T/M COOLING
GASKET
GASKET, T/M COOLING

09168-06023-000   0916806023000

0916806023000
Not available
22
BOLT<br />PLUG, T/M COOLING
BOLT
PLUG, T/M COOLING

07120-0612B-000   071200612B000

071200612B000

Unit Price

23
JET,PISTON COOLING<br />JET, PISTON COOLING RH
JET, PISTON COOLING
JET, PISTON COOLING RH

11390-34E00-000   1139034E00000

1139034E00000

Unit Price

24
JET,PISTON COOLING<br />JET, PISTON COOLING LH
JET, PISTON COOLING
JET, PISTON COOLING LH

11390-34E10-000   1139034E10000

1139034E10000

Unit Price

25
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

26
BOLT(6X12)<br />BOLT
BOLT(6X12)
BOLT

09106-06075-000   0910606075000

0910606075000

Unit Price

27
BOLT<br />PLUG, PISTON JET OIL GALLERY
BOLT
PLUG, PISTON JET OIL GALLERY

09106-06076-000   0910606076000

0910606076000

Unit Price

28
JET, AIR(180)
JET, T/M OIL 180

09493-36006-000   0949336006000

0949336006000

Unit Price

29
JET, OIL PAN GALLERY
JET, OIL GALLERY

11532-46E00-000   1153246E00000

1153246E00000

Unit Price

30
BOLT<br />PLUG, OIL GALLERY
BOLT
PLUG, OIL GALLERY

07120-0612B-000   071200612B000

071200612B000

Unit Price

31
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
32
BOLT
PLUG, OIL GALLERY

07130-0816B-000   071300816B000

071300816B000

Unit Price

33
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

34
PLUG,OIL GALL<br />PLUG, OIL GALLERY
PLUG, OIL GALL
PLUG, OIL GALLERY

09248-10010-000   0924810010000

0924810010000

Unit Price

35
CRNK DRAIN PLUG GASK<br />GASKET (9.9X14X0.3)
CRNK DRAIN PLUG GASK
GASKET (9.9X14X0.3)

09168-10002-000   0916810002000

0916810002000

Unit Price

36
PLUG,OIL<br />PLUG, OIL GALLERY (16X8)
PLUG, OIL
PLUG, OIL GALLERY (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

37
GASKET OIL GALLERY<br />GASKET (16X22X2)
GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

38
09248-14011<br />PLUG (14X12)
09248-14011
PLUG (14X12)

09248-14005-000  

0924814005000
Not available
39
GASKET (13.8X18.8X0.4)
GASKET (13.8X18.8X0.4)

09168-14002-000   0916814002000

0916814002000

Unit Price

40
UNION,OIL STAND<br />UNION, OIL FILTER STAND
UNION, OIL STAND
UNION, OIL FILTER STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

41
BEARING, CRANK THRUST LH
BEARING, CRANK THRUST (GREEN)

12228-24F00-0D0   1222824F000D0

1222824F000D0

Unit Price

42
BEARING, CRANK THRUST, L
BEARING, CRANK THRUST (RED)

12228-24F00-0A0   1222824F000A0

1222824F000A0

Unit Price

42
BEARING, CRANK THRUST, L
BEARING, CRANK THRUST (BLACK)

12228-24F00-0B0   1222824F000B0

1222824F000B0

Unit Price

42
BEARING, CRANK THRUST, L
BEARING, CRANK THRUST (BLUE)

12228-24F00-0C0   1222824F000C0

1222824F000C0

Unit Price

42
BEARING, CRANK THRUST LH
BEARING, CRANK THRUST (GREEN)

12228-24F00-0D0   1222824F000D0

1222824F000D0

Unit Price

42
BEARING, CRANK THRUST, L
BEARING, CRANK THRUST (YELLOW)

12228-24F00-0E0   1222824F000E0

1222824F000E0

Unit Price

42
BEARING, CRANK THRUST, L
BEARING, CRANK THRUST (WHITE)

12228-24F00-0F0   1222824F000F0

1222824F000F0

Unit Price

43
FILTER ASSY, ENGINE OIL

16510-03G00-X07  

16510-07J10-000
 1651003G00X07

Unit Price

44
BOLT (12X320)

09103-12066-000   0910312066000

0910312066000

Unit Price

45
BOLT, ENG MTG REAR L2
BOLT (12X240)

09103-12067-000   0910312067000

0910312067000

Unit Price

46
NUT

09159-12054-000   0915912054000

0915912054000

Unit Price

47
SPACER, ENG MTG(L47)
SPACER, ENGINE MOUNT

11611-24F00-000   1161124F00000

1161124F00000

Unit Price

48
COVER, BREATHER

11331-23H00-000   1133123H00000

1133123H00000

Unit Price

49
VALVE ASSY, BREATHER REED

13150-01H00-000  

13150-01H01-000
 1315001H00000

Unit Price

50
COVER, BREATHER REED VALVE
COVER, REED VALVE

11372-21H00-000   1137221H00000

1137221H00000

Unit Price

51
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

52
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

53
COVER, GEAR SHIFT

11383-23H00-000   1138323H00000

1138323H00000

Unit Price

54
GASKET, GEAR SHIFT COVER
GASKET

11485-24F00-000   1148524F00000

1148524F00000

Unit Price

55
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

56
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

57
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki B-KING 1300 of B-KING. Let us know if you have any questions.
