Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM COLOR : CRU=019(BLACK),YKV(BLACK)

SHOCK ABSORBER LINKAGE FOR SUZUKI B-KING 1300 2012

REAR WHEEL (GSX1300BKK8 / U2K8 / K9 / UFK9 / L0 / UFL0) REFER TO FIG.63A(K- 3) FOR GSX1300BKAK8/AU2K8/AK9/AUFK9/AL0/AUFL0

Item numbers

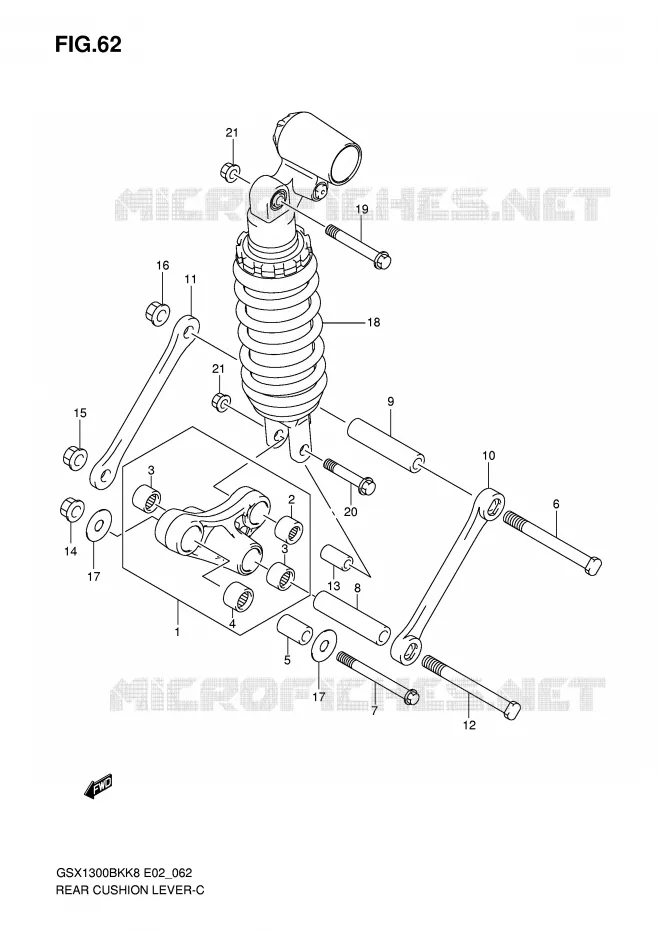

SHOCK ABSORBER LINKAGE Suzuki MOTO 1300 B-KING 2012 GSX1300BKAU2K8(E2)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
21
1
62600-23811
LEVER SET, REAR CUSHION

62600-23810-000   6260023810000

6260023810000
Not available
2
BEARING
BEARING

09263-17034-000  

09263-17057-000
 0926317034000

Unit Price

3
BEARING
BEARING

09263-17037-000  

09263-17053-000
 0926317037000

Unit Price

4
BEARING
BEARING

09263-20074-000  

09263-20116-000
 0926320074000

Unit Price

5
SPACER,RR CUSHION LEVER FR<br />SPACER, RR CUSHION LEVER
SPACER, RR CUSHION LEVER FR
SPACER, RR CUSHION LEVER

62317-27C10-000   6231727C10000

6231727C10000

Unit Price

6
BOLT, RR CUSHION LEVER CTR
BOLT, RR CUSHION LEVER

62621-23H00-000   6262123H00000

6262123H00000

Unit Price

7
BOLT, RR CUSHION LEVER CTR
BOLT, RR CUSHION ROD

62621-23H00-000   6262123H00000

6262123H00000

Unit Price

8
SPACER,RR CUSHION LEVER CTR<br />SPACER, RR CUSHION LEVER
SPACER, RR CUSHION LEVER CTR
SPACER, RR CUSHION LEVER

62626-33D00-000   6262633D00000

6262633D00000

Unit Price

9
SPACER,RR CUSHION LEVER CTR<br />SPACER, RR CUSHION ROD
SPACER, RR CUSHION LEVER CTR
SPACER, RR CUSHION ROD

62626-33D00-000   6262633D00000

6262633D00000

Unit Price

10
DISCONTINUE
ROD, RR CUSHION LH

62640-23H00-000   6264023H00000

6264023H00000
Not available
11
ROD, RR CUSHION RH

62641-23H00-000   6264123H00000

6264123H00000
Not available
12
BOLT,RR CUSHION LEVER FR<br />BOLT, RR CUSHION LEVER
BOLT, RR CUSHION LEVER FR
BOLT, RR CUSHION LEVER

62658-19F00-000   6265819F00000

6265819F00000

Unit Price

13
SPACER, RR CUSHION LEVER
SPACER, RR CUSHION LEVER

62684-40A10-000   6268440A10000

6268440A10000

Unit Price

14
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

15
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

16
NUT, REARCUSHION
NUT

09159-12056-000   0915912056000

0915912056000

Unit Price

17
WASHER 12X34X1<br />WASHER, RR CUSHION LEVER
WASHER 12X34X1
WASHER, RR CUSHION LEVER

09160-12037-000   0916012037000

0916012037000

Unit Price

18
DISCONTINUE
ABSORBER ASSY, REAR SHOCK

62100-23H00-000   6210023H00000

6210023H00000
Not available
19
BOLT,10X70<br />BOLT, UPPER (10X70)
BOLT, 10X70
BOLT, UPPER (10X70)

09103-10033-000   0910310033000

0910310033000

Unit Price

20
BOLT 10 X 55
BOLT, LOWER (10X55)

09103-10143-000   0910310143000

0910310143000

Unit Price

21
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SHOCK ABSORBER LINKAGE of your Suzuki B-KING 1300 of B-KING. Let us know if you have any questions.

Genuine parts for Suzuki 1300 B-KING 2012

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1300 B-KING 2012

Select your Suzuki 2012 model

1300 B-KING 2012 GSX1300BKAU2K8(E2)

B-KING 1300

Suzuki B-KING

Displacement: 1300 cc
Year: 2012
Model code GSX1300BKAU2K8(E2)
