FUEL TANK (MODEL K1) REFER TO FIG.37C(G-4) FOR MODEL K2

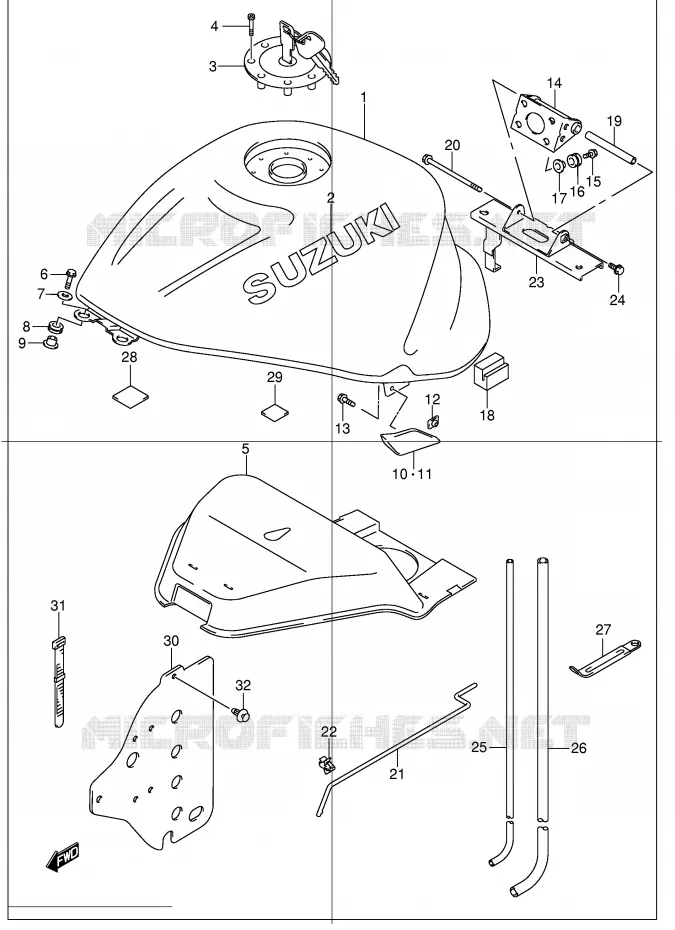

FUEL TANK (MODEL K2) FOR SUZUKI HAYABUSA 1300 2002

FUEL TANK (MODEL K3) COLOR : CN5=YD8(SILVER),1LF(BLUE)

Item numbers

DISCONTINUE
TANK ASSY, FUEL

44100-24F30-FH9 4410024F30FH9

Not available

DISCONTINUE
TANK ASSY, FUEL

44100-24F30-YZX 4410024F30YZX

Not available

TANK ASSY, FUEL

44100-24F50-FH9 4410024F50FH9

Not available

TANK ASSY, FUEL

44100-24F50-YZX 4410024F50YZX

Not available

TANK ASSY, FUEL

44100-24F70-HE6 4410024F70HE6

Not available

DISCONTINUE
TANK ASSY, FUEL

44100-24FB0-HE6 4410024FB0HE6

Not available

DISCONTINUE
EMBLEM (BLACK)

68111-24F00-YC8 6811124F00YC8

Not available

DISCONTINUE
EMBLEM (CHROME)

68111-24F00-YY3 6811124F00YY3

Not available

DISCONTINUE
EMBLEM (GRAY)

68111-24F10-20G 6811124F1020G

Not available

DISCONTINUE
CAP SET, FUEL TANK

44201-33810-000

Not available

BOLT, L:20
BOLT

09106-05017-000 0910605017000

$4,97

Unit Price

DISCONTINUE
SHIELD, HEAT NO.1

44191-24F10-000 4419124F10000

Not available

SCREW
BOLT, FRONT

09139-06029-000 0913906029000

$9,97

Unit Price

CLUTCH REL WASHER

09160-06036-000

09160-06019-000

$2,97

Unit Price

RR COMB LAMP CUSHION
CUSHION

09320-09009-000 0932009009000

$7,97

Unit Price

WASHER
SPACER

09169-06062-000 0916906062000

$4,97

Unit Price

COVER, FUEL TANK SIDE, R
COVER, SIDE RH

44533-24F00-000 4453324F00000

$27,97

Unit Price

COVER, FUEL TANK SIDE, L
COVER, SIDE LH

44543-24F00-000 4454324F00000

$27,97

Unit Price

PLATE, FUEL TANK SIDE
PLATE

44540-24F10-000 4454024F10000

$16,97

Unit Price

SCREW

02142-06103-000

02142-0610B-000

$2,97

Unit Price

BRACKET, TANK

44560-24F00-000 4456024F00000

Not available

BOLT

09116-06152-000 0911606152000

$3,97

Unit Price

09320-08527
CUSHION

09320-08001-000 0932008001000

Not available

WASHER
SPACER

09169-06062-000 0916906062000

$4,97

Unit Price

CUSHION, FUEL TANK SIDE

44541-24F00-000

44541-24F01-000

$14,97

Unit Price

DISCONTINUE
SPACER

44561-33E10-000 4456133E10000

Not available

BOLT

01550-08953-000

01550-0895A-000

$7,97

Unit Price

STAY, FUEL TANK
STAY

44574-33E01-000 4457433E01000

$33,97

Unit Price

CLAMP
CLIP

09403-05310-000 0940305310000

$5,97

Unit Price

DISCONTINUE
BRACKET, REAR

44550-24F00-000 4455024F00000

Not available

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

HOSE, FUEL TANK BREATHER

44423-24F00-000

44423-24F01-000

$19,97

Unit Price

HOSE, (7X11X600)

09352-70113-600

09352-70119-600

$19,97

Unit Price

CLAMP(L:65)

09404-06432-000

09404-06039-000

$3,97

Unit Price

CUSHION(20X20X1)
CUSHION, FRONT

44534-24F00-000 4453424F00000

$5,97

Unit Price

CUSHION(20X20X1)

44535-24F00-000

44534-24F00-000

$5,97

Unit Price

DISCONTINUE
HEAT SHIELD, FRONT

44271-24F00-000 4427124F00000

Not available

CLAMP, WIRING HARNESS
CLAMP

09407-18402-000 0940718402000

$3,97

Unit Price

CLIP
CLIP (BLACK)

09409-06322-5PK 09409063225PK

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (MODEL K2) of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.
