THROTTLE BODY (MODEL K1) REFER TO FIG.12B(C-9) FOR MODEL K2/K3

THROTTLE BODY (MODEL K2 / K3) FOR SUZUKI HAYABUSA 1300 2002

PUMP ASSY (MODEL X / Y) REFER TO FIG.13A(C-13) FOR MODEL K1/K2/K3

Item numbers

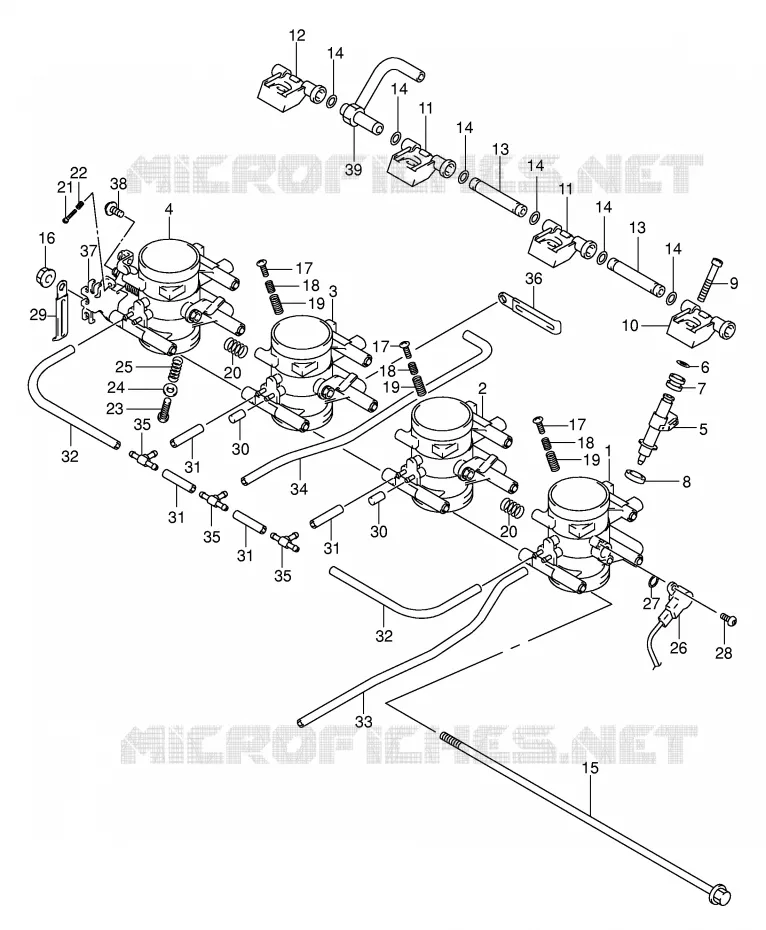

THROTTLE BODY (MODEL K2/K3) Suzuki MOTO 1300 HAYABUSA 2002 GSX1300RK2(E2)
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
13
14
14
14
14
14
14
15
16
17
17
17
18
18
18
19
19
19
20
20
21
22
23
24
25
26
27
28
29
30
30
31
31
31
31
32
32
33
34
35
35
35
36
37
38
39
1
THROTTLE BODY ASSY, LH

13401-24FE0-000   1340124FE0000

1340124FE0000
Not available
1
THROTTLE BODY ASSY, LH

13401-24FF0-000   1340124FF0000

1340124FF0000
Not available
1
THROTTLE BODY ASSY, LH

13401-24FG0-000   1340124FG0000

1340124FG0000
Not available
1
THROTTLE BODY ASSY, LH

13401-24FJ0-000   1340124FJ0000

1340124FJ0000
Not available
2
THROTTLE BODY ASSY, ML

13402-24FE0-000   1340224FE0000

1340224FE0000
Not available
2
THROTTLE BODY ASSY, ML

13402-24FF0-000   1340224FF0000

1340224FF0000
Not available
2
THROTTLE BODY ASSY, ML

13402-24FG0-000   1340224FG0000

1340224FG0000
Not available
2
DISCONTINUE
THROTTLE BODY ASSY, ML

13402-24FJ0-000   1340224FJ0000

1340224FJ0000
Not available
3
THROTTLE BODY ASSY, MR

13403-24FE0-000   1340324FE0000

1340324FE0000
Not available
3
THROTTLE BODY ASSY, MR

13403-24FF0-000   1340324FF0000

1340324FF0000
Not available
3
THROTTLE BODY ASSY, MR

13403-24FG0-000   1340324FG0000

1340324FG0000
Not available
3
DISCONTINUE
THROTTLE BODY ASSY, MR

13403-24FJ0-000   1340324FJ0000

1340324FJ0000
Not available
4
THROTTLE BODY ASSY, RH

13404-24FE0-000   1340424FE0000

1340424FE0000
Not available
4
THROTTLE BODY ASSY, RH

13404-24FF0-000   1340424FF0000

1340424FF0000
Not available
4
THROTTLE BODY ASSY, RH

13404-24FG0-000   1340424FG0000

1340424FG0000
Not available
4
THROTTLE BODY ASSY, RH

13404-24FJ0-000   1340424FJ0000

1340424FJ0000
Not available
5
INJECTOR ASSY

15710-24F00-000   1571024F00000

1571024F00000

Unit Price

6
O RING

15721-24F00-000   1572124F00000

1572124F00000

Unit Price

7
RING, CUSHION
RING, CUSHION

15722-24F00-000   1572224F00000

1572224F00000

Unit Price

8
RING, SEAL
RING, SEAL

13672-24F00-000   1367224F00000

1367224F00000

Unit Price

9
SCREW
SCREW

13601-35F00-000   1360135F00000

1360135F00000

Unit Price

10
JOINT, NO.1

13471-35F00-000   1347135F00000

1347135F00000

Unit Price

11
DISCONTINUE<br />JOINT, NO.2,3
DISCONTINUE
JOINT, NO.2, 3

13471-35F10-000   1347135F10000

1347135F10000
Not available
12
JOINT, NO.4

13471-35F20-000   1347135F20000

1347135F20000

Unit Price

13
DISCONTINUE
JOINT

13474-24F00-000   1347424F00000

1347424F00000
Not available
14
O RING

15721-24F00-000   1572124F00000

1572124F00000

Unit Price

15
DISCONTINUE
BOLT

13611-24F00-000   1361124F00000

1361124F00000
Not available
16
NUT

13607-24F00-000   1360724F00000

1360724F00000

Unit Price

17
SCREW, STOP

13423-35F00-000   1342335F00000

1342335F00000

Unit Price

18
SPRING

13543-24F00-000   1354324F00000

1354324F00000

Unit Price

19
DISCONTINUE
SPRING

13268-03F50-000   1326803F50000

1326803F50000
Not available
20
DISCONTINUE
SPRING

13543-24F20-000   1354324F20000

1354324F20000
Not available
21
DISCONTINUE
SCREW, STOP

13602-24F10-000   1360224F10000

1360224F10000
Not available
22
DISCONTINUE
SPRING

13543-24F30-000   1354324F30000

1354324F30000
Not available
23
DISCONTINUE
SCREW, STOP

13267-35F00-000   1326735F00000

1326735F00000
Not available
24
WASHER

13273-24F00-000   1327324F00000

1327324F00000

Unit Price

25
SPRING

13271-24F00-000   1327124F00000

1327124F00000

Unit Price

26
SENSOR ASSY, THROTTLE NO.1

13580-40F20-000  

13580-40F22-000
 1358040F20000

Unit Price

27
O RING

13575-24F00-000   1357524F00000

1357524F00000

Unit Price

28
SCREW

13605-40F00-000   1360540F00000

1360540F00000

Unit Price

29
DISCONTINUE
CLAMP

13432-24F10-000   1343224F10000

1343224F10000
Not available
30
CAP, RUBBER

13508-24F00-000   1350824F00000

1350824F00000

Unit Price

31
HOSE,RUBBER(L:35)
HOSE, RUBBER(L:35)

13697-24F00-000  

13697-24F01-000
 1369724F00000

Unit Price

32
HOSE,RUBBER(L:100)
HOSE, RUBBER(L:100)

13697-24F20-000  

13697-24F21-000
 1369724F20000

Unit Price

33
HOSE, RUBBER(L:200)

13697-24F30-000  

13697-24F31-000
 1369724F30000

Unit Price

34
13697-24FA0

13697-24FA0-000  

1369724FA0000
Not available
35
JOINT

13471-24F30-000   1347124F30000

1347124F30000

Unit Price

36
DISCONTINUE
BAND

13432-24FA0-000   1343224FA0000

1343224FA0000
Not available
37
PLATE, STAY

13565-24F00-000   1356524F00000

1356524F00000
Not available
38
DISCONTINUE
SCREW

13601-24F00-000   1360124F00000

1360124F00000
Not available
39
DISCONTINUE
JOINT

13473-35F01-000   1347335F01000

1347335F01000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY (MODEL K2/K3) of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.

Genuine parts for Suzuki 1300 HAYABUSA 2002
