WIRING HARNESS (MODEL X / Y / K1 / K2) REFER TO FIG.32A(F-4) FOR MODEL K3

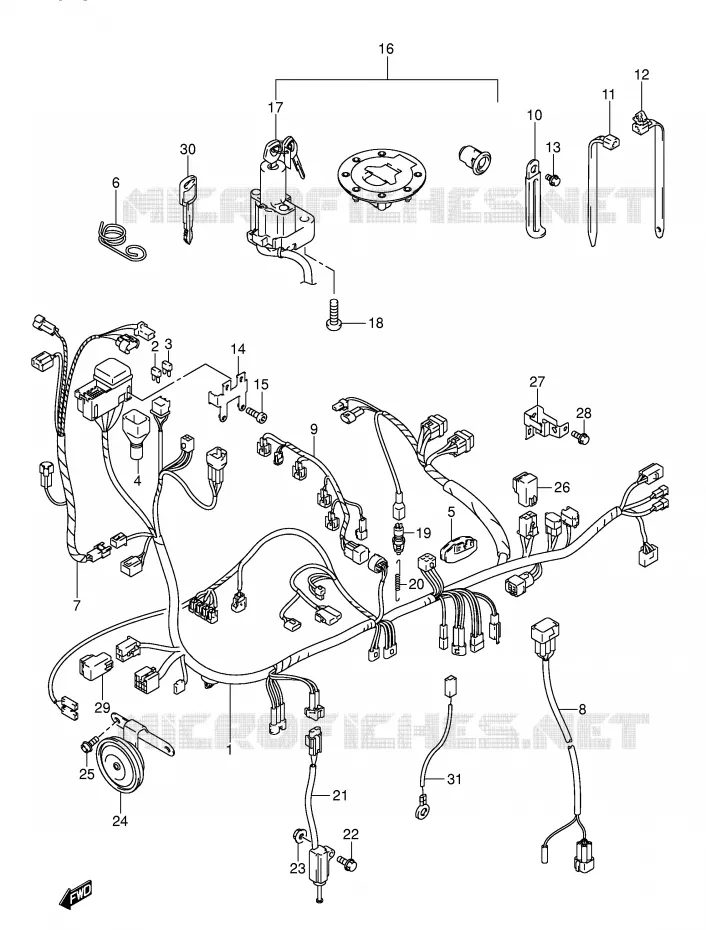

WIRING HARNESS (MODEL K3) FOR SUZUKI HAYABUSA 1300 2003

SWITCHES (MODEL X / Y / K1 / K2) REFER TO FIG.33A(F-7) FOR MODEL K3

Item numbers

HARNESS, WIRING NO.1

36610-24F50-000 3661024F50000

Not available

DISCONTINUE
HARNESS, WIRING NO.1

36610-24F60-000 3661024F60000

Not available

FUSE (10A)

09481-10501-000

Not available

FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

COVER, SPEEDOMETER COUPLER
BOOT, METER COUPLER

36618-33E00-000 3661833E00000

$7,97

Unit Price

DISCONTINUE
PROTECTOR, WIRING HARNESS

36611-24F00-000 3661124F00000

Not available

GUIDE, WIRING HARNESS

36619-24F00-000 3661924F00000

$9,97

Unit Price

DISCONTINUE
HARNESS, WIRING NO.2

36620-24F10-000 3662024F10000

Not available

WIRE, 02 SENSOR

36855-24F00-000 3685524F00000

Not available

DISCONTINUE
WIRE, INJECTION LEAD

36856-24F10-000 3685624F10000

Not available

CLAMP(L:65)

09404-06431-000

09404-06207-000

$3,97

Unit Price

CLAMP(L:65)

09404-06432-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:80)

09404-06433-000

09404-06036-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP
CLAMP (L:60)

09407-11402-000 0940711402000

$3,97

Unit Price

CLAMP, WATER HOSE

09407-14408-000

09407-17402-000

$6,97

Unit Price

BOLT

01550-06103-000

01550-0610B-000

$4,97

Unit Price

BRACKET, FUSE BOX

36744-24F00-000 3674424F00000

$15,97

Unit Price

BOLT

07120-05103-000

07120-0510B-000

$4,97

Unit Price

37000-24813

37000-24810-000

Not available

LOCK SET

37000-24820-000 3700024820000

Not available

LOCK ASSY, STEERING

37100-24F00-000

37100-24F01-000

$313,97

Unit Price

LOCK ASSY, STEERING

37100-24F10-000 3710024F10000

Not available

BOLT
SCREW (8X20)

09139-08016-000 0913908016000

$5,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-24A00-000 3774024A00000

$19,97

Unit Price

BRAKE SWITCH SPRING
SPRING

09443-06012-000 0944306012000

$5,97

Unit Price

SWITCH ASSY, SIDE STAND

37840-24F00-000

37840-24F02-000

$100,97

Unit Price

BOLT (8X35)

09103-08357-000 0910308357000

$5,97

Unit Price

NUT

08316-10083-000

08316-1008B-000

$4,97

Unit Price

HORN ASSY

38500-24F00-000 3850024F00000

$124,97

Unit Price

BOLT

07120-06123-000

07120-0612B-000

$5,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

BRACKET, FUEL PUMP RLY

38741-24F00-000 3874124F00000

$15,97

Unit Price

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

KEY, BLANK

37146-33E00-000 3714633E00000

$20,97

Unit Price

DISCONTINUE
WIRE, OIL PRESSURE

36851-17E10-000 3685117E10000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL K3) of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.
