Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM (MODEL K3) REFER TO FIG.56A(K-10) FOR MODEL K3

SHOCK ABSORBER LINKAGE FOR SUZUKI HAYABUSA 1300 2003

REAR WHEEL

Item numbers

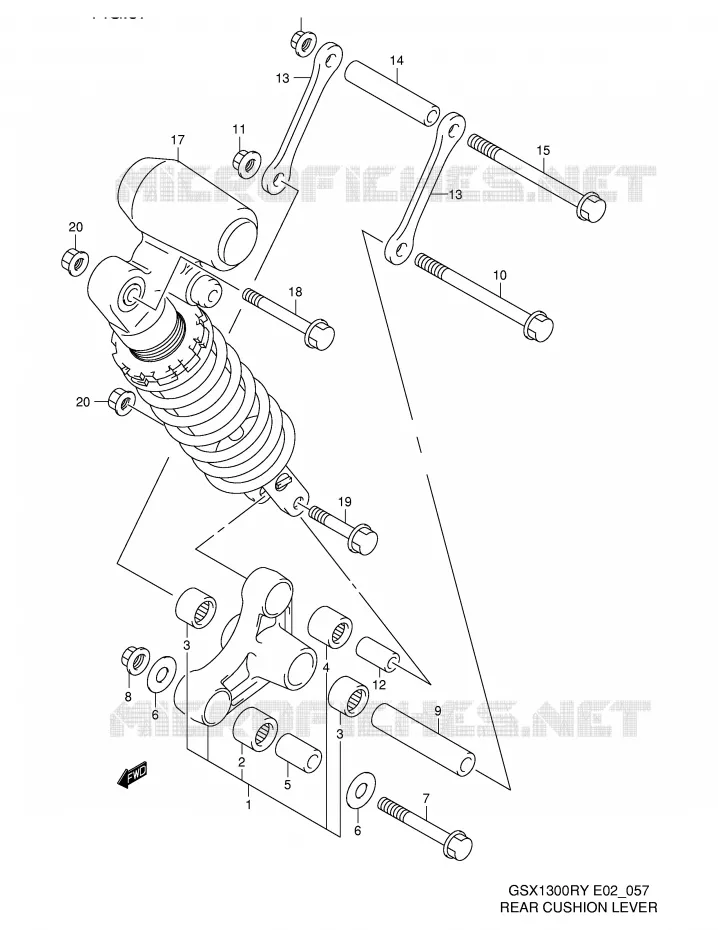

SHOCK ABSORBER LINKAGE Suzuki MOTO 1300 HAYABUSA 2003 GSX1300RK3(E2)
1
2
3
3
4
5
6
6
7
8
9
10
11
12
13
13
14
15
17
17
18
19
20
20
1
DISCONTINUE
LEVER SET, REAR CUSHION

62600-24810-000   6260024810000

6260024810000
Not available
2
ROLLER BEARING
ROLLER BEARING

09263-20073-000  

09263-20121-000
 0926320073000

Unit Price

3
ROLLER BEARING<br />BEARING, CENTER (20X27X23.5)
ROLLER BEARING
BEARING, CENTER (20X27X23.5)

09263-20071-000   0926320071000

0926320071000

Unit Price

4
BEARING
BEARING

09263-17034-000  

09263-17057-000
 0926317034000

Unit Price

5
SPACER,RR CUSHION LEVER FR<br />SPACER, FRONT (12X20X32)
SPACER, RR CUSHION LEVER FR
SPACER, FRONT (12X20X32)

62684-12C00-000   6268412C00000

6268412C00000

Unit Price

6
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-12301-000   0821112301000

0821112301000

Unit Price

7
BOLT,RR CUSHION LEVER FR<br />BOLT, FRONT (12X78)
BOLT, RR CUSHION LEVER FR
BOLT, FRONT (12X78)

62658-19F00-000   6265819F00000

6265819F00000

Unit Price

8
NUT

08319-31128-000  

08319-3112A-000
 0831931128000

Unit Price

9
SPACER, RR CUSHION LEVER CTR
SPACER, CENTER (12X20X94)

62626-24F00-000   6262624F00000

6262624F00000

Unit Price

10
BOLT,RR CUSHION LEVER CTR<br />BOLT, CENTER (12X124)
BOLT, RR CUSHION LEVER CTR
BOLT, CENTER (12X124)

62621-33D00-000   6262133D00000

6262133D00000

Unit Price

11
NUT

08319-31128-000  

08319-3112A-000
 0831931128000

Unit Price

12
SPACER,RR CUSHION LEVER<br />SPACER, REAR (10X17X30)
SPACER, RR CUSHION LEVER
SPACER, REAR (10X17X30)

62684-40A10-000   6268440A10000

6268440A10000

Unit Price

13
ROD, RR CUSHION
ROD, REAR CUSHION

62641-24F00-000   6264124F00000

6264124F00000

Unit Price

14
SPACER, RR CUSHION LEVER CTR
SPACER, ROD (12X20X94)

62626-24F00-000   6262624F00000

6262624F00000

Unit Price

15
BOLT,RR CUSHION LEVER CTR<br />BOLT, ROD (12X124)
BOLT, RR CUSHION LEVER CTR
BOLT, ROD (12X124)

62621-33D00-000   6262133D00000

6262133D00000

Unit Price

16
NUT

08319-31128-000  

08319-3112A-000
 0831931128000

Unit Price

17
DISCONTINUE
ABSORBER ASSY, REAR SHOCK

62100-24F01-000   6210024F01000

6210024F01000
Not available
17
DISCONTINUE
ABSORBER ASSY, REAR SHOCK

62100-24F30-000   6210024F30000

6210024F30000
Not available
18
BOLT,10X70<br />BOLT, UPPER (10X70)
BOLT, 10X70
BOLT, UPPER (10X70)

09103-10033-000   0910310033000

0910310033000

Unit Price

19
BOLT, 10X58
BOLT, LOWER (10X58)

09103-10027-000   0910310027000

0910310027000

Unit Price

20
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SHOCK ABSORBER LINKAGE of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.

Genuine parts for Suzuki 1300 HAYABUSA 2003
