LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI HAYABUSA 1300 2007

BRACKET / STEERING DAMPER

Item numbers

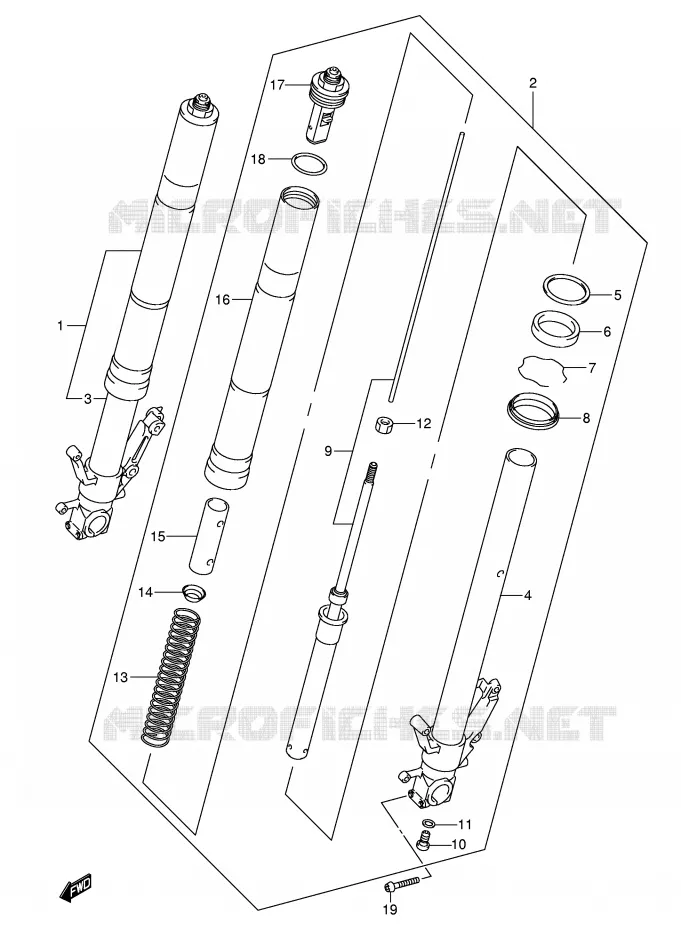

FRONT FORK Suzuki MOTO 1300 HAYABUSA 2007 GSX1300RZK7(E2)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
DISCONTINUE
DAMPER ASSY, FRONT FORK RH

51103-24F30-000  

5110324F30000
Not available
2
DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-24F30-000  

5110424F30000
Not available
3
DISCONTINUE
TUBE, INNER RH (BLACK)

51110-24F30-000  

5111024F30000
Not available
4
TUBE, INNER, L(BLACK)

51120-24F30-000  

51120-24F31-000
 5112024F30000

Unit Price

5
WASHER
WASHER

51158-14200-000   5115814200000

5115814200000

Unit Price

6
SEAL, OIL
SEAL, OIL

51153-02FA0-000   5115302FA0000

5115302FA0000

Unit Price

7
RING, STOPPER
RING, STOPPER

51156-14200-000   5115614200000

5115614200000

Unit Price

8
SEAL, DUST
SEAL, DUST

51173-02FA0-000   5117302FA0000

5117302FA0000

Unit Price

9
DISCONTINUE
CYLINDER

51146-24F00-000  

5114624F00000
Not available
10
BOLT,OIL LOCK PIECE,12X22<br />BOLT
BOLT, OIL LOCK PIECE, 12X22
BOLT

51147-40C00-000   5114740C00000

5114740C00000

Unit Price

11
GASKET,CYLINDER<br />GASKET
GASKET, CYLINDER
GASKET

51148-40300-000   5114840300000

5114840300000

Unit Price

12
DISCONTINUE<br />NUT
DISCONTINUE
NUT

51129-24F00-000   5112924F00000

5112924F00000
Not available
13
DISCONTINUE
SPRING, FRONT

51171-24F00-000   5117124F00000

5117124F00000
Not available
14
GUIDE, SPRING

51158-24F00-000   5115824F00000

5115824F00000

Unit Price

15
DISCONTINUE
SPACER, SPRING

51176-24F00-000   5117624F00000

5117624F00000
Not available
16
TUBE, OUTER (BRONZ)

51130-24F20-000   5113024F20000

5113024F20000

Unit Price

17
DISCONTINUE
CAP, FRONT FORK

51351-24F00-000  

5135124F00000
Not available
18
O RING

62278-14100-000   6227814100000

6227814100000

Unit Price

19
BOLT (8X45)

51166-24F30-000   5116624F30000

5116624F30000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.
