FUEL TANK

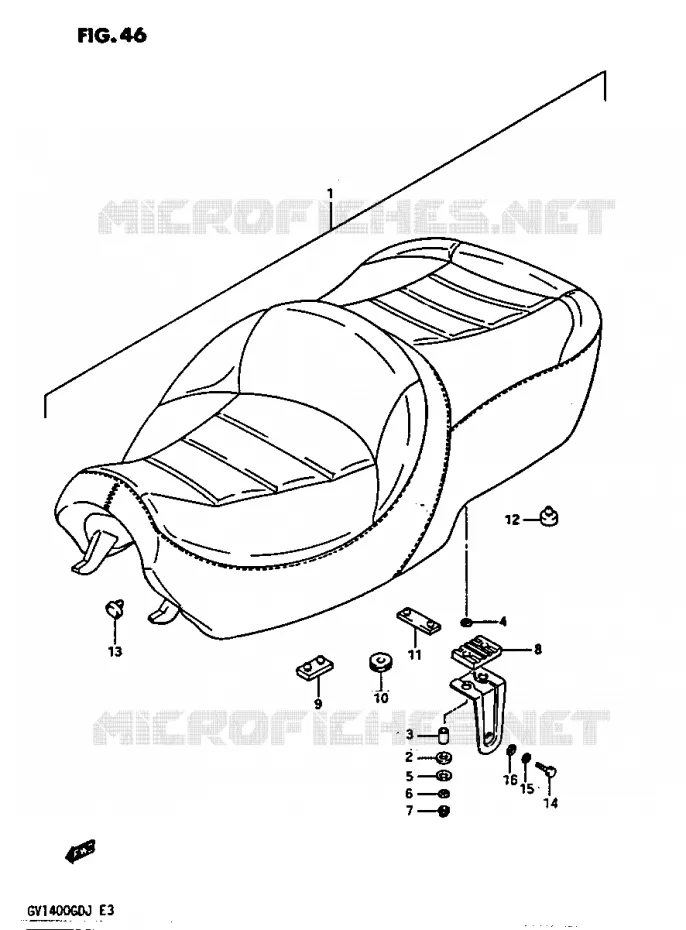

SEAT FOR SUZUKI CAVALCADE 1400 1987

BACKREST - SPEAKERS GV1400GDG / GTG / GDH / GDJ REFER TO FIG.48 1-G-4

45100-24A03-48H
SEAT SET (BLACK)

45100-24A03-4FT 4510024A034FT

Not available

SEAT SET

45100-24A03-7VD 4510024A037VD

Not available

SEAT SET (BLACK)

45100-24A13-4FT 4510024A134FT

Not available

SEAT SET (BLACK)

45100-24A21-4FT 4510024A214FT

Not available

45100-24A21-48H
SEAT ASSY

45100-24A21-9HN 4510024A219HN

Not available

DISCONTINUE
SEAT ASSY

45100-24A21-9HP 4510024A219HP

Not available

CUSHION, SEAT FR
CUSHION SEAT HEAD

45147-23450-000 4514723450000

$2,97

Unit Price

SPACER SEAT SUPPORT

45219-23450-000 4521923450000

Not available

WASHER, THRUST
WASHER UPPER

08212-06201-000 0821206201000

$2,97

Unit Price

WASHER

08322-11063-000

08322-01063-000

$3,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

08310-0006A
.NUT 6MM

08310-12066-000

Not available

CUSHION FR PLATE

45150-23450-000 4515023450000

$7,97

Unit Price

CUSHION, SEAT(40X20X15)
CUSHION SEAT

45149-31300-000 4514931300000

$5,97

Unit Price

CUSHION(8X26X7)

09320-08018-000

09320-08513-000

$5,97

Unit Price

SEAT CUSHION
CUSHI0N

09321-08009-000 0932108009000

$4,97

Unit Price

CUSHION

09321-10011-000 0932110011000

$4,97

Unit Price

CUSHION

09321-10012-000 0932110012000

$5,97

Unit Price

BOLT

01107-08255-000

01500-0825A-000

$3,97

Unit Price

WASHER, LOCK

08321-21084-000

08321-0108B-000

$3,97

Unit Price

08322-0108A
WASHER, FRONT

08322-11084-000

Not available

SEAT COVER (WHITE)

45160-24A02-4WH 4516024A024WH

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
