FRONT FORK GV1400GDG / GTG REFER TO FIG.53 1-G-15

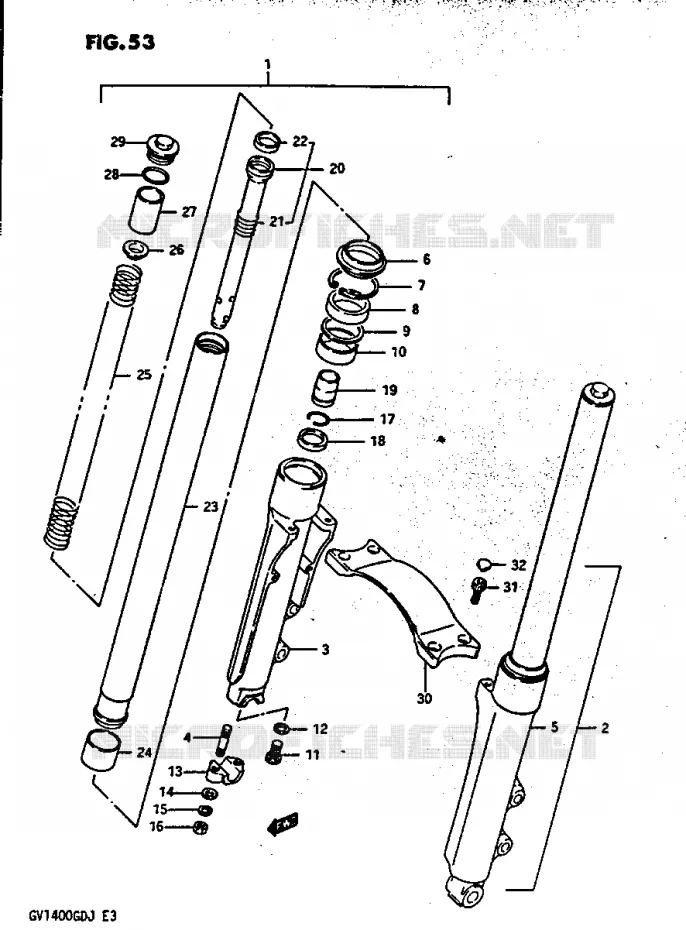

FRONT FORK GV1400GCG / MODEL H / J FOR SUZUKI CAVALCADE 1400 1987

STEERING COLUMN

DAMPER ASSY, RH

51103-24A20-000 5110324A20000

Not available

DAMPER ASSY, LH

51104-24A20-000 5110424A20000

Not available

TUBE, OUTER, RH

51130-24A20-000 5113024A20000

Not available

BOLT, STUD

01411-08308-000

01411-0830A-000

$3,97

Unit Price

.TUBE, OUTER, LH

51140-24A20-000 5114024A20000

Not available

SEAL, DUST

51173-05A00-000

51173-14F00-000

$20,97

Unit Price

RING, OIL SEAL STOPPER
CIRCLIP, OIL SEAL

51156-49440-000 5115649440000

$7,97

Unit Price

SEAL, OIL

51153-05A00-000

51153-27C20-000

$30,97

Unit Price

WASHER

51158-05A00-000 5115805A00000

$8,97

Unit Price

METAL, SLIDE

51167-44B00-000

51167-26E10-000

$27,97

Unit Price

BOLT CYLINDER

51147-40300-000 5114740300000

$10,97

Unit Price

GASKET CYLINDER

51148-40300-000 5114840300000

$4,97

Unit Price

HOLDER, AXLE, RH

51132-49440-000 5113249440000

Not available

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

8 MM LOCK WASHER

08321-31087-000

08321-01087-000

$3,97

Unit Price

NUT

09140-08005-000

09140-08017-000

$3,97

Unit Price

RING SNAP

51198-05A00-000 5119805A00000

Not available

VALVE

51193-24A00-000 5119324A00000

Not available

PIECE, OIL LOCK

51195-24A00-000 5119524A00000

Not available

CYLINDER

51146-24A00-000 5114624A00000

Not available

..SPRING

51177-24A00-000 5117724A00000

Not available

RING PISTON

51196-05A00-000 5119605A00000

$14,97

Unit Price

TUBE, INNER

51110-24A00-000 5111024A00000

Not available

DISCONTINUE
PISTON

51121-05A00-000 5112105A00000

Not available

SPRING

51171-24A00-000 5117124A00000

Not available

WASHER(22.5X32X1.6)

51172-24A00-000

51356-24B01-000

$8,97

Unit Price

.SPACER

51176-24A00-000 5117624A00000

Not available

O RING

51117-40300-000 5111740300000

$5,97

Unit Price

DISCONTINUE

51351-24A00-000

Not available

BRACE FORK

53115-24A20-000 5311524A20000

Not available

BOLT

07110-08207-000

07130-08207-000

$5,97

Unit Price

CAP

09250-06009-000 0925006009000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK GV1400GCG/MODEL H/J of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
