Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI BURGMAN 150 2000

CYLINDER

Item numbers

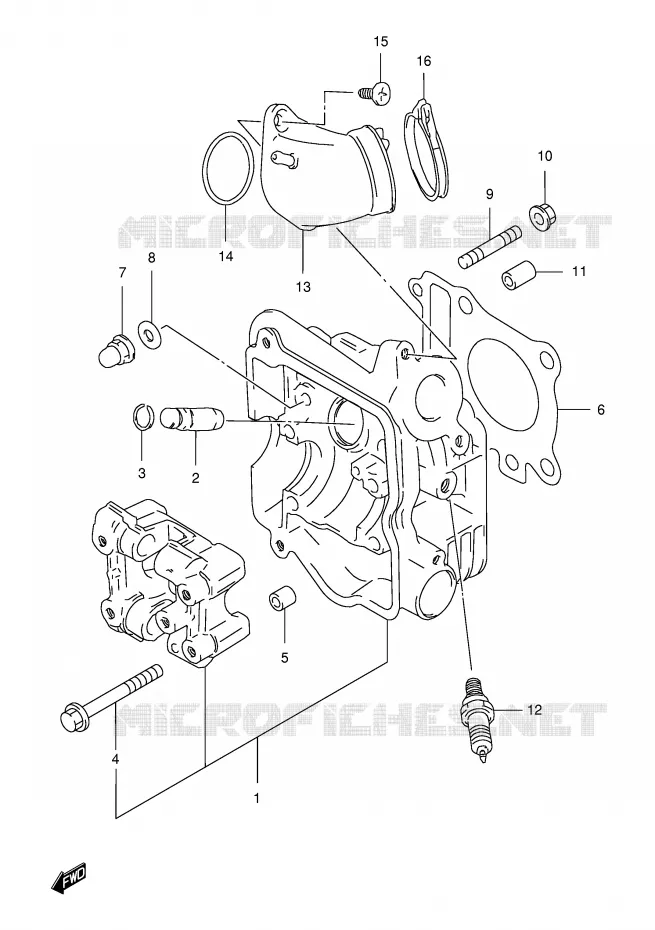

CYLINDER HEAD Suzuki SCOOTER 150 BURGMAN 2000 AN150Y(E34)
1
2
3
4
5
6
7
7
8
9
10
11
12
12
12
12
12
12
13
14
15
16
1
HEAD ASSY, CYLINDER

11100-20E20-000   1110020E20000

1110020E20000
Not available
2
GUIDE, VALVE

11115-20E70-000   1111520E70000

1111520E70000

Unit Price

3
RING,VALVE GUIDE<br />CIRCLIP
RING, VALVE GUIDE
CIRCLIP

09381-10004-000   0938110004000

0938110004000

Unit Price

4
BOLT (6X55)

09103-06102-000   0910306102000

0910306102000

Unit Price

5
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

6
GASKET

11141-20E10-000   1114120E10000

1114120E10000
Not available
7
NUT

09159-08049-000  

09159-08074-000
 0915908049000

Unit Price

8
GASKET 8.5X17X2.3<br />GASKET
GASKET 8.5X17X2.3
GASKET

09168-08021-000   0916808021000

0916808021000

Unit Price

9
BOLT, STUD

01421-06253-000  

01421-0625A-000
 0142106253000

Unit Price

10
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

11
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

12
CR8E, NGK<br />SPARK PLUG (NGK,CR8E)
CR8E, NGK
SPARK PLUG (NGK, CR8E)

09482-00456-000   0948200456000

0948200456000

Unit Price

12
CR9E, NGK<br />SPARK PLUG (NGK,CR9E)
CR9E, NGK
SPARK PLUG (NGK, CR9E)

09482-00458-000   0948200458000

0948200458000

Unit Price

12
CR7E, NGK

09482-00515-000  

09482-00516-000
 0948200515000

Unit Price

13
PIPE, INTAKE

13110-20E02-000   1311020E02000

1311020E02000
Not available
14
O RING (D:2.4,ID:31.7)
O RING (D:2.4, ID:31.7)

09280-32006-000   0928032006000

0928032006000

Unit Price

15
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

16
CLAMP

09402-46208-000   0940246208000

0940246208000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 150 BURGMAN 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 150 BURGMAN 2000

Select your Suzuki 2000 model

150 BURGMAN 2000 AN150Y(E34)

BURGMAN 150

Suzuki BURGMAN

Displacement: 150 cc
Year: 2000
Model code AN150Y(E34)
