TRANSMISSION (1)

TRANSMISSION (2) FOR SUZUKI BURGMAN 150 2000

KICK STARTER

Item numbers

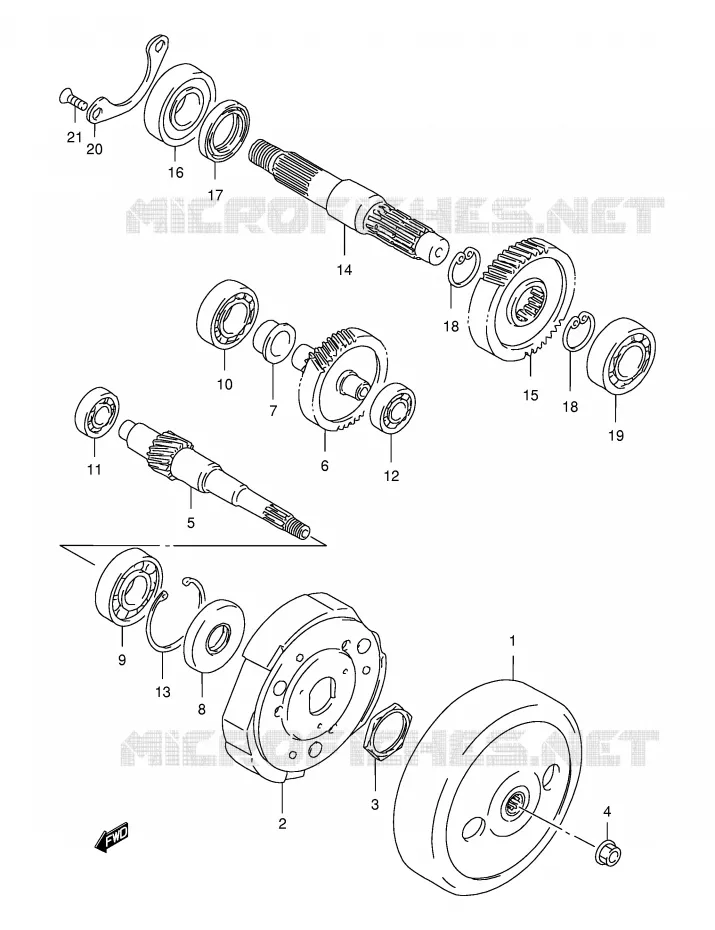

TRANSMISSION (2) Suzuki SCOOTER 150 BURGMAN 2000 AN150Y(E34)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
1
HOUSING, CLUTCH

21220-20E01-000   2122020E01000

2122020E01000
Not available
2
CLUTCH ASSY, SHOE

21501-20E20-000   2150120E20000

2150120E20000
Not available
3
NUT

09140-28004-000   0914028004000

0914028004000

Unit Price

4
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

5
SHAFT, DRIVE (NT:17)

24131-20E01-000   2413120E01000

2413120E01000
Not available
6
SHAFT, IDLE

24150-20E20-000   2415020E20000

2415020E20000
Not available
7
SPACER, IDLE SHAFT RH

24152-20E00-000   2415220E00000

2415220E00000
Not available
8
OIL SEAL (20X47X6)

09283-20054-000   0928320054000

0928320054000
Not available
9
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

10
BEARING
BEARING (20X42X12)

09262-20106-000   0926220106000

0926220106000

Unit Price

11
BEARING

08113-62017-000  

08113-6201B-000
 0811362017000

Unit Price

12
BEARING

08113-62017-000  

08113-6201B-000
 0811362017000

Unit Price

13
CIRCLIP, CRANKSH
CIRCLIP

08331-41479-000   0833141479000

0833141479000

Unit Price

14
SHAFT, REAR AXLE

24141-11E10-000   2414111E10000

2414111E10000
Not available
15
GEAR, FINAL DRIVEN

24371-20E10-000   2437120E10000

2437120E10000
Not available
16
DISCONTINUE
BEARING (22X50X14)

09262-22027-000  

0926222027000
Not available
17
OIL SEAL, DR SFT
OIL SEAL (27X40X6)

09283-27010-000   0928327010000

0928327010000

Unit Price

18
CIRCLIP

08331-31226-000  

08331-31229-000
 0833131226000

Unit Price

19
BALL BEARING<br />BEARING
BALL BEARING
BEARING

08110-62030-000   0811062030000

0811062030000

Unit Price

20
RETAINER, AXLE SHAFT BEARING

24751-11E00-000   2475111E00000

2475111E00000
Not available
21
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (2) of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.
