WIRING HARNESS (MODEL K2 / K3) REFER TO FIG. 30A (D-15) FOR MODEL K4/K5

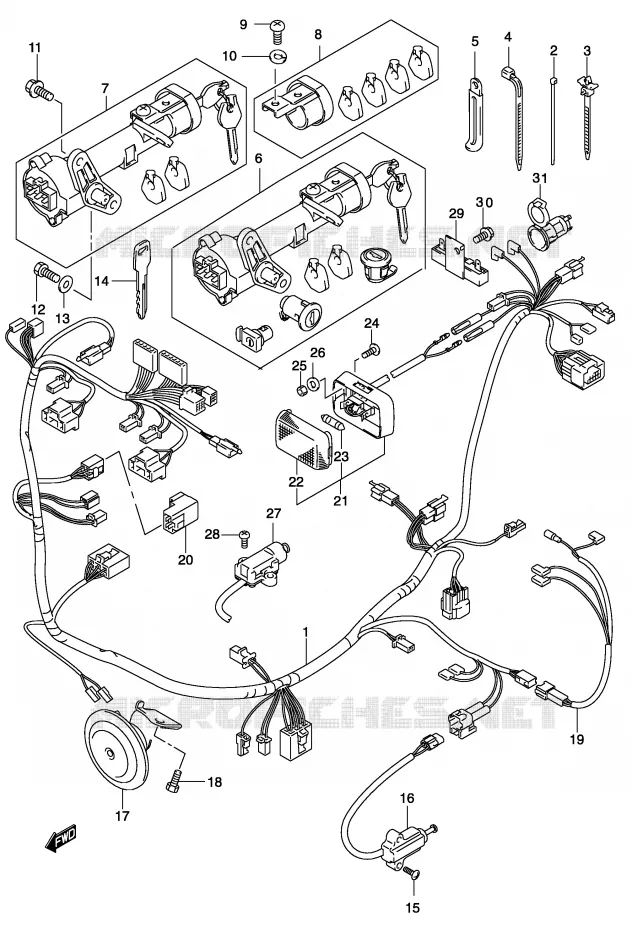

WIRING HARNESS (MODEL K4 / K5) FOR SUZUKI BURGMAN 150 2003

SWITCHES

Item numbers

HARNESS, WIRING

36610-07E10-000 3661007E10000

Not available

HARNESS, WIRING

36610-07E20-000 3661007E20000

Not available

CLAMP (L:95)

D9425-00975-000 D942500975000

Not available

CLAMP

09407-07E00-000

09407-11402-000

$3,97

Unit Price

DISCONTINUE
CLAMP (L:125)

D9436-01425-000

Not available

CLAMP (L:165)

D9448-01885-000 D944801885000

Not available

CLAMP

D9448-02875-000 D944802875000

Not available

CLAMP (L:200)

D9477-02135-000 D947702135000

Not available

CLAMP (L:290)

D9477-02995-000 D947702995000

Not available

CLAMP (L:97)

09404-08419-EE3 0940408419EE3

Not available

LOCK SET

37011-49F00-000 3701149F00000

Not available

LOCK ASSY, STEERING

37100-49F00-000 3710049F00000

Not available

SHUTTER, STEERING LOCK

37155-49F00-000 3715549F00000

Not available

SCREW

D2116-05085-000 D211605085000

Not available

WASHER

D8321-01055-000 D832101055000

Not available

SCREW(6X20)
BOLT, STEERING LOCK

09139-06048-000 0913906048000

$3,97

Unit Price

DISCONTINUE

D1507-06205-000

Not available

WASHER

D8322-01065-000

08322-0106A-000

$3,97

Unit Price

KEY, BLANK

37146-14F00-000 3714614F00000

Not available

SCREW

D2116-06205-000

02112-0620A-000

$2,97

Unit Price

37840-49F02

37840-49F00-000

Not available

HORN ASSY

38500-49F00-000 3850049F00000

Not available

BOLT

D1507-08125-000 D150708125000

Not available

WIRE, IGNITION COIL

36854-07E00-000 3685407E00000

Not available

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

LAMP ASSY, TRUNK BOX

36210-49F00-000 3621049F00000

Not available

LENS

36212-79001-000 3621279001000

Not available

BULB(12V45/45W, STANLEY, 70281A)
BULB (12V, 5W)

09471-12073-000

Not available

SCREW

D2116-04125-000 D211604125000

Not available

DISCONTINUE
NUT

D8310-00045-000

Not available

DISCONTINUE
WASHER

D8322-01045-000 D832201045000

Not available

SWITCH ASSY, TRUNK BOX LAMP
SWITCH ASSY, TRUNK BOX

37980-14F00-000 3798014F00000

$102,97

Unit Price

SCREW

D2116-05165-000 D211605165000

Not available

RESISTOR ASSY

36510-49F00-000 3651049F00000

Not available

BOLT

D1507-06125-000 D150706125000

Not available

TERMINAL, POWER SOURCE
TERMINAL, POWER SOURCE (12V, 60

39410-49F00-P4Z 3941049F00P4Z

$48,97

Unit Price

WIRE, CARBURETOR HEATER

36855-07E00-000 3685507E00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL K4/K5) of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.
