CRANKCASE

CRANKCASE COVER FOR SUZUKI BURGMAN 150 2003

CRANKSHAFT

Item numbers

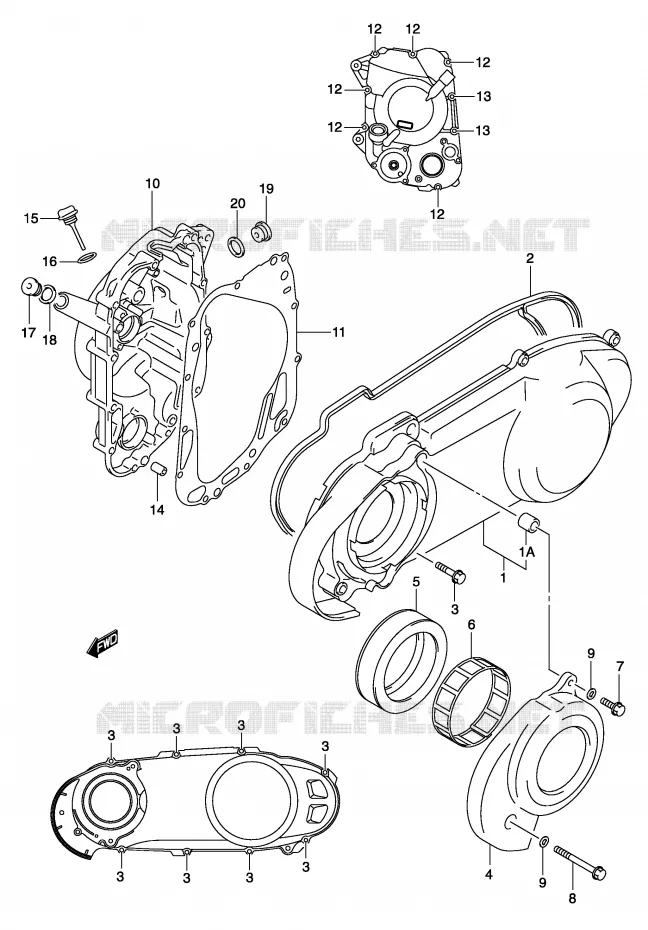

CRANKCASE COVER Suzuki SCOOTER 150 BURGMAN 2003 UH150K3(P19)

1A

SPACER

09180-06310-000 0918006310000

$3,97

Unit Price

1

COVER, CLUTCH

11340-49811-000 1134049811000

Not available

2

GASKET, CLUTCH COVER

11482-49F00-000 1148249F00000

Not available

3

BOLT

01547-06253-000

01547-0625B-000

$3,97

Unit Price

4

DUCT, BELT COOLING

11380-21F00-000 1138021F00000

Not available

5

FILTER, BELT COOLING

11388-49F10-000 1138849F10000

Not available

6

HOLDER, BELT COOLING FILTER

11389-14F00-000 1138914F00000

Not available

7

BOLT

01547-06253-000

01547-0625B-000

$3,97

Unit Price

8

BOLT

01547-06603-000

01547-0660B-000

$4,97

Unit Price

9

WASHER

08322-01063-000

08322-0106A-000

$2,97

Unit Price

10

COVER, MAGNETO

11351-49F00-000 1135149F00000

Not available

11

GASKET, MAGNETO COVER

11483-21F00-000 1148321F00000

Not available

12

BOLT

01547-06353-000

01547-0635B-000

$4,97

Unit Price

13

BOLT

01547-06453-000

01547-0645B-000

$4,97

Unit Price

14

PIN

04211-09149-000 0421109149000

$2,97

Unit Price

15

GAUGE, OIL LEVEL

11971-14F00-000 1197114F00000

$13,97

Unit Price

16

O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

17

09248-14011
PLUG

09248-14005-000

Not available

18

GASKET (13.8X18.8X0.4)

09168-14002-000 0916814002000

$2,97

Unit Price

19

PLUG, OIL
PLUG (16X8)

09248-16012-000 0924816012000

$8,97

Unit Price

20

GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000 0916816002000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.
