FAIRING (MODEL K2) REFER TO FIG. 35A (E- 7) FOR MODEL K3

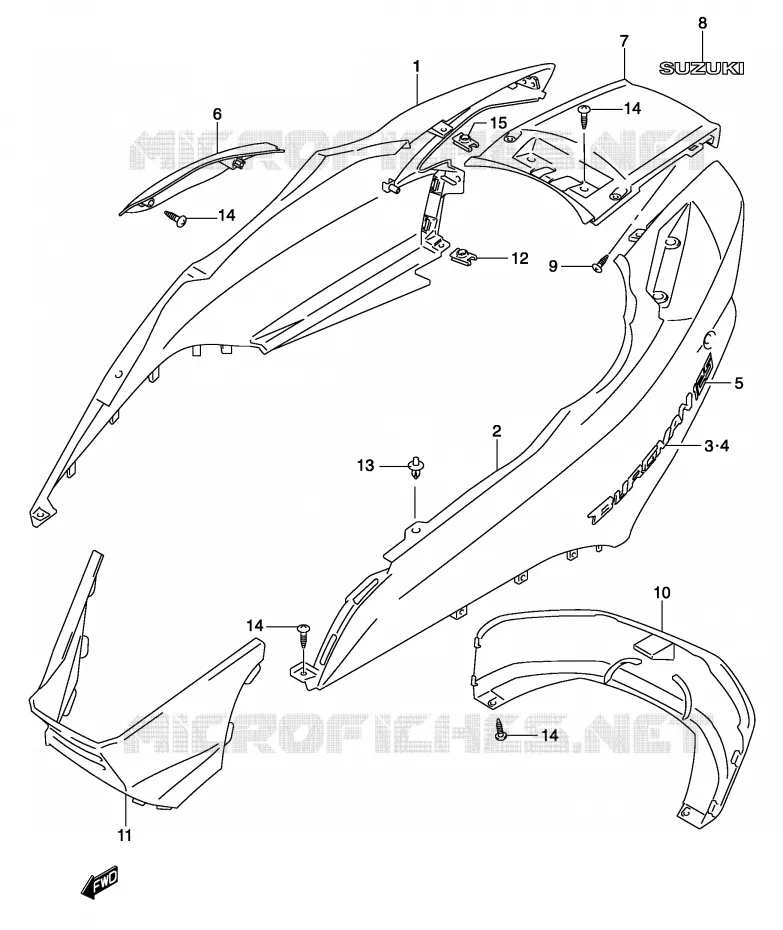

FAIRING (MODEL K3) FOR SUZUKI BURGMAN 150 2004

FAIRING (MODEL K4) REFER TO FIG. 35C (E- 9) FOR MODEL K5

Item numbers

COVER, FRAME RH (GREEN)

47111-49F00-Y7G 4711149F00Y7G

Not available

COVER, FRAME RH (BLUE)

47111-49F00-Y7H 4711149F00Y7H

Not available

COVER, FRAME RH (YELLOW)

47111-49F00-Y9H 4711149F00Y9H

Not available

COVER, FRAME RH (BLUE)

47111-49F00-YC2 4711149F00YC2

Not available

COVER, FRAME RH (SILVER)

47111-49F00-YD8 4711149F00YD8

Not available

COVER, FRAME LH (GREEN)

47211-49F00-Y7G 4721149F00Y7G

Not available

COVER, FRAME LH (BLUE)

47211-49F00-Y7H 4721149F00Y7H

Not available

COVER, FRAME LH (YELLOW)

47211-49F00-Y9H 4721149F00Y9H

Not available

COVER, FRAME LH (BLUE)

47211-49F00-YC2 4721149F00YC2

Not available

COVER, FRAME LH (SILVER)

47211-49F00-YD8 4721149F00YD8

Not available

EMBLEM, FRAME COVER RH

68131-49F00-000 6813149F00000

Not available

EMBLEM, FRAME COVER LH

68141-49F00-000 6814149F00000

Not available

EMBLEM, "150"

68131-49F20-E8C 6813149F20E8C

Not available

COVER, UPPER RH (GREEN)

47121-49F00-Y7G 4712149F00Y7G

Not available

COVER, UPPER RH (BLUE)

47121-49F00-Y7H 4712149F00Y7H

Not available

COVER, UPPER RH (YELLOW)

47121-49F00-Y9H 4712149F00Y9H

Not available

COVER, UPPER RH (BLUE)

47121-49F00-YC2 4712149F00YC2

Not available

COVER, UPPER RH (SILVER)

47121-49F00-YD8 4712149F00YD8

Not available

COVER, FRAME CENTER (GREEN)

47311-49F00-Y7G 4731149F00Y7G

Not available

COVER, FRAME CENTER (BLUE)

47311-49F00-Y7H 4731149F00Y7H

Not available

COVER, FRAME CENTER (YELLOW)

47311-49F00-Y9H 4731149F00Y9H

Not available

COVER, FRAME CENTER (BLUE)

47311-49F00-YC2 4731149F00YC2

Not available

COVER, FRAME CENTER (SILVER)

47311-49F00-YD8 4731149F00YD8

Not available

EMBLEM, "SUZUKI" (GRAY)

68165-49F00-1ZY 6816549F001ZY

Not available

EMBLEM, "SUZUKI" (GRAY)

68165-49F00-20G 6816549F0020G

Not available

SCREW

03541-05165-000

03541-0516B-000

$3,97

Unit Price

COVER, FRAME LOWER (GREEN)

47411-49F00-Y7G 4741149F00Y7G

Not available

COVER, FRAME LOWER (BLUE)

47411-49F00-Y7H 4741149F00Y7H

Not available

COVER, FRAME LOWER (YELLOW)

47411-49F00-Y9H 4741149F00Y9H

Not available

COVER, FRAME LOWER (BLUE)

47411-49F00-YC2 4741149F00YC2

Not available

COVER, FRAME LOWER (SILVER)

47411-49F00-YD8 4741149F00YD8

Not available

COVER, FRAME FRONT (GRAY)

47351-49F00-Y0J 4735149F00Y0J

Not available

NUT

D91BL-4815A-000 D91BL4815A000

Not available

CLIP (BLACK)

09409-08308-5ES 09409083085ES

$3,97

Unit Price

SCREW

03541-05165-000

03541-0516B-000

$3,97

Unit Price

NUT

D91BL-4815A-000 D91BL4815A000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (MODEL K3) of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.
