HANDLEBAR - CABLES

FRONT FORK FOR SUZUKI BURGMAN 150 2004

STEERING COLUMN

Item numbers

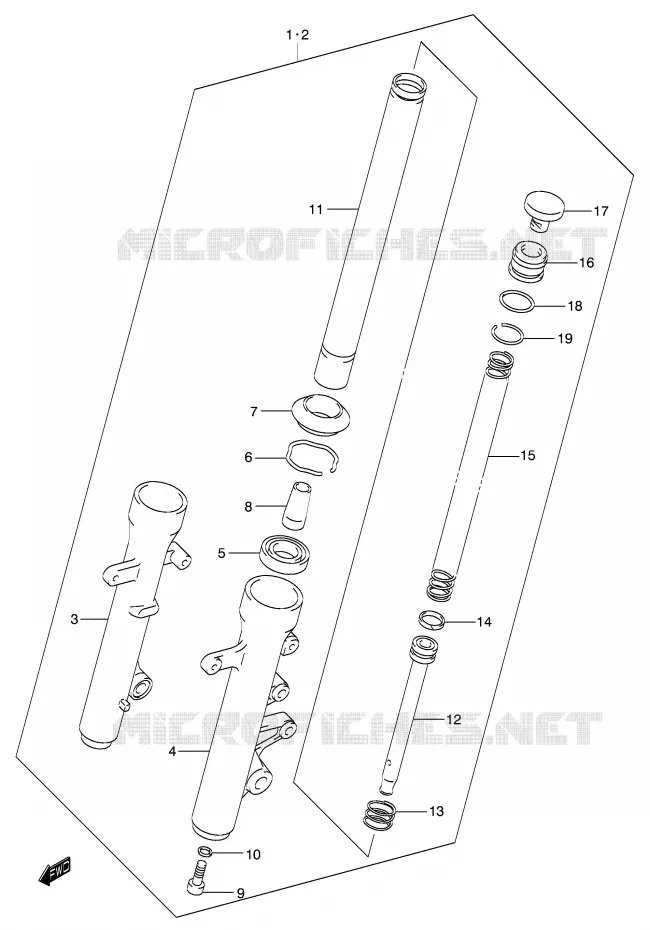

FRONT FORK Suzuki SCOOTER 150 BURGMAN 2004 UH150K4(P19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
DAMPER ASSY, FRONT FORK RH

51103-49F00-000   5110349F00000

5110349F00000
Not available
2
DAMPER ASSY, FRONT FORK LH

51104-49F00-000   5110449F00000

5110449F00000
Not available
3
TUBE, OUTER RH

51131-49F00-000   5113149F00000

5113149F00000
Not available
4
TUBE, OUTER LH

51141-49F00-000   5114149F00000

5114149F00000
Not available
5
SEAL, OIL

51153-49F00-000   5115349F00000

5115349F00000
Not available
6
RING, STOPPER

51156-09EF0-000   5115609EF0000

5115609EF0000
Not available
7
SEAL, DUST

51571-09EF0-000   5157109EF0000

5157109EF0000
Not available
8
PIECE, OIL LOCK

51195-38300-000   5119538300000

5119538300000
Not available
9
BOLT

51147-49F00-000   5114749F00000

5114749F00000
Not available
10
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

11
TUBE, INNER

51110-49F00-000   5111049F00000

5111049F00000
Not available
12
CYLINDER

51146-49F00-000   5114649F00000

5114649F00000
Not available
13
SPRING, REBOUND
SPRING, REBOUND

51177-36030-000   5117736030000

5117736030000
Not available
14
RING, PISTON
RING, PISTON

51196-33130-000   5119633130000

5119633130000

Unit Price

15
SPRING, FRONT

51171-49F00-000   5117149F00000

5117149F00000
Not available
16
SEAT, SPRING

51175-49F00-000   5117549F00000

5117549F00000
Not available
17
CAP

51189-09EF0-000   5118909EF0000

5118909EF0000
Not available
18
O RING

51117-43EC0-000   5111743EC0000

5111743EC0000
Not available
19
RING, STOPPER

51169-48500-000   5116948500000

5116948500000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.
