Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI BOULEVARD-M91 1500 2010

STEERING COLUMN

Item numbers

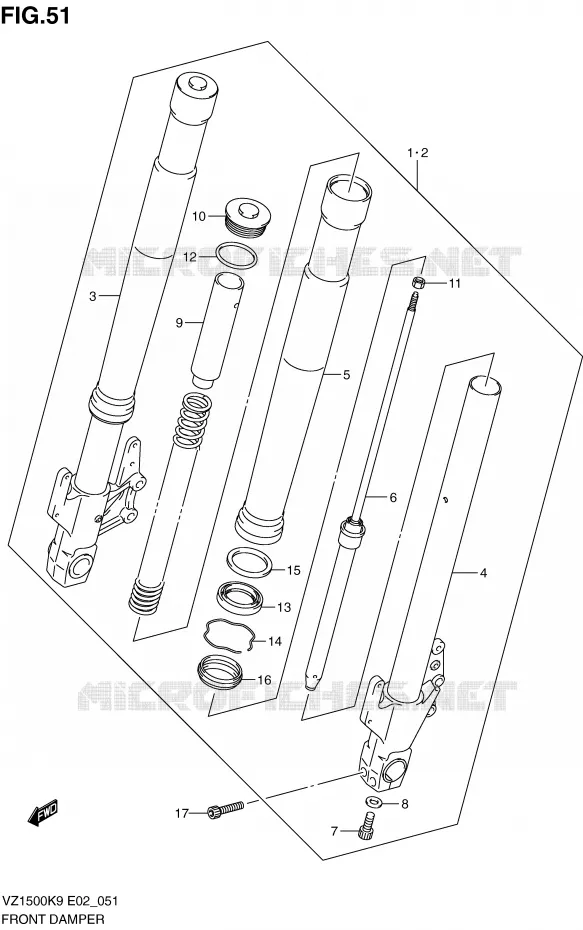

FRONT FORK Suzuki MOTO 1500 BOULEVARD-M91 2010 VZ1500L0(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-40H00-000  

5110340H00000
Not available
2
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-40H00-000  

5110440H00000
Not available
3
TUBE, INNER, R
TUBE, INNER RH

51110-40H00-000  

5111040H00000
Not available
4
TUBE, INNER, L
TUBE, INNER LH

51120-40H00-000  

5112040H00000
Not available
5
TUBE, OUTER

51130-40H00-000   5113040H00000

5113040H00000

Unit Price

6
CYLINDER

51146-40H00-000  

5114640H00000
Not available
7
BOLT

51147-05H00-000   5114705H00000

5114705H00000

Unit Price

8
GASKET
GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

9
SPACER, SPRING

51176-21H00-000   5117621H00000

5117621H00000

Unit Price

10
CAP

51351-40H00-000   5135140H00000

5135140H00000

Unit Price

11
NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

12
O RING

62278-14100-000   6227814100000

6227814100000

Unit Price

13
SEAL, OIL

51153-41G00-000   5115341G00000

5115341G00000

Unit Price

14
RING, STOPPER
RING, STOPPER

51156-14200-000   5115614200000

5115614200000

Unit Price

15
WASHER
WASHER

51158-14200-000   5115814200000

5115814200000

Unit Price

16
SEAL, DUST

51173-41G00-000   5117341G00000

5117341G00000

Unit Price

17
BOLT(8X32)
BOLT

51328-31F30-000   5132831F30000

5132831F30000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of BOULEVARD-M91. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD-M91 2010

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1500 BOULEVARD-M91 2010

Select your Suzuki 2010 model

1500 BOULEVARD-M91 2010 VZ1500L0(E2)

Suzuki BOULEVARD-M91

Displacement: 1500 cc
Year: 2010
Model code VZ1500L0(E2)
