FAIRING (MODEL K2 / K3) COLOR : JE2=1LF(BLUE),YU8(GRAY)

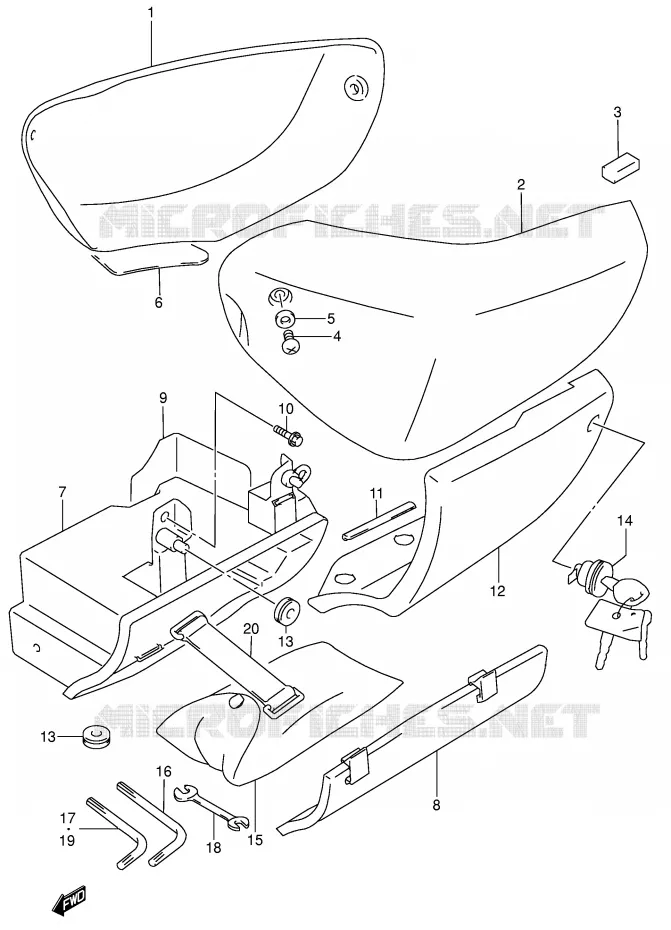

FAIRING (MODEL K4) FOR SUZUKI INTRUDER 1500 2004

FRONT FENDER (MODEL W / X) COLOR : E6M = 33J(BLACK), Y98(GREEN)

Item numbers

DISCONTINUE
COVER, FRAME RH (BLUE)

47110-10F00-YAR 4711010F00YAR

Not available

47110-10F00-13L
COVER, FRAME RH (BLACK)

47110-10F00-YAY 4711010F00YAY

Not available

DISCONTINUE
COVER, FRAME RH (SILVER)

47110-10F00-YV2 4711010F00YV2

Not available

COVER, FRAME, L(UNIFIED)

47210-10F00-YAY

47210-10F00-13L

$533,97

Unit Price

DISCONTINUE
COVER, FRAME LH (GRAY)

47210-10F00-YAR 4721010F00YAR

Not available

CUSHION, FRAME COVER
CUSHION

47117-45000-000 4711745000000

$3,97

Unit Price

SCREW

09139-06030-000 0913906030000

$5,97

Unit Price

WASHER 6.5X15X1
WASHER

09160-06094-000 0916006094000

$2,97

Unit Price

SHIELD, FRAME COVER, R
SHIELD, FRAME COVER RH

47166-10F00-000 4716610F00000

$37,97

Unit Price

DISCONTINUE
BODY, TOOL HOLDER

47431-10F00-000 4743110F00000

Not available

CAP, TOOL HOLDER

47432-10F00-000 4743210F00000

$30,97

Unit Price

DISCONTINUE
SHIELD, BODY

47436-10F00-000 4743610F00000

Not available

BOLT, 6X16
BOLT

09113-06001-000 0911306001000

$4,97

Unit Price

MOLDING, FRAME COVER, L
MOLDING, LH

47212-10F00-000 4721210F00000

$7,97

Unit Price

COVER, TOOL HOLDER

47440-10F00-000 4744010F00000

$497,97

Unit Price

CUSHION

09320-08047-000

09320-08518-000

$5,97

Unit Price

LOCK SET, COVER

95700-07860-000

95700-07861-000

$155,97

Unit Price

09800-21073
TOOL ASSY

09800-21016-000

Not available

HEXAGON SPANNER, 12

09816-00139-000 0981600139000

Not available

SPANNER, HEXAGON(4)
HEXAGON SPANNER, 4

09816-00103-000 0981600103000

$6,97

Unit Price

SPANNER, 8X10

09813-00027-000 0981300027000

Not available

HEXAGON SPANNER, 5

09816-00059-000 0981600059000

$10,97

Unit Price

BATTERY BAND
BAND, TOOL

09462-00067-000 0946200067000

$11,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
