CRANKCASE

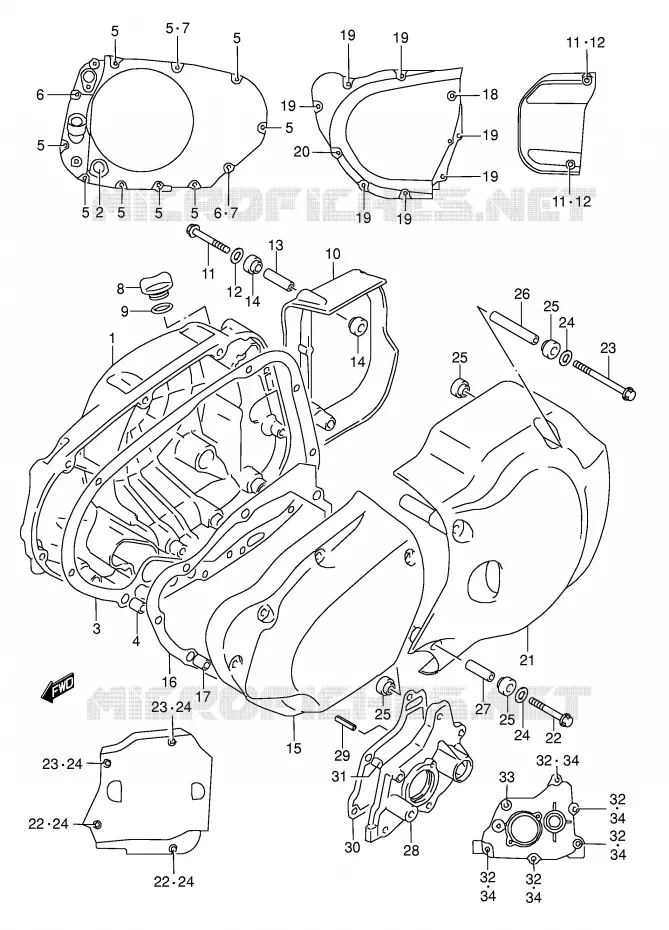

CRANKCASE COVER FOR SUZUKI INTRUDER 1500 2009

CRANKSHAFT

Item numbers

DISCONTINUE
COVER, CLUTCH

11340-10F00-000 1134010F00000

Not available

LENS, OIL LEVEL CHECK

11971-45010-000 1197145010000

$20,97

Unit Price

GASKET, CLUTCH COVER

11482-38B20-000 1148238B20000

$38,97

Unit Price

04211-09189-000 0421109189000

$2,97

Unit Price

BOLT, CL COV/MAG COV,
BOLT

09103-06213-000 0910306213000

$3,97

Unit Price

BOLT, SPROCKET, COV L4
BOLT

09103-06215-000 0910306215000

$4,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000 1197125D00000

$6,97

Unit Price

O-RING, OIL FILLER
O RING

09280-17003-000 0928017003000

$2,97

Unit Price

COVER, CLUTCH RR
COVER, CLUTCH REAR

11381-10F00-000 1138110F00000

$214,97

Unit Price

BOLT, 6X45
BOLT

09106-06107-000 0910606107000

$7,97

Unit Price

WASHER, 6.5X14X1.6
WASHER

09160-06125-000 0916006125000

$3,97

Unit Price

SPACER

09180-06277-000 0918006277000

$6,97

Unit Price

WASHER
CUSHION

09161-09005-000 0916109005000

$3,97

Unit Price

COVER, GENERATOR

11351-10F00-000 1135110F00000

$593,97

Unit Price

GASKET, GENERATOR COVER

11483-10F10-000 1148310F10000

$22,97

Unit Price

PIN, CRANKCASE
PIN

09206-11007-000 0920611007000

$3,97

Unit Price

BOLT(6X95)
BOLT

09103-06227-000 0910306227000

$4,97

Unit Price

BOLT, ST CL COV/ST ID
BOLT

09103-06214-000 0910306214000

$3,97

Unit Price

BOLT, MAG COV, L45
BOLT

09103-06224-000 0910306224000

$4,97

Unit Price

COVER, SECONDARY DRIVE UNIT

11361-10F00-000 1136110F00000

$1 085,97

Unit Price

BOLT, SPROCKET, COV L4
BOLT

09103-06215-000 0910306215000

$4,97

Unit Price

BOLT, ENG SPRKT COV, L
BOLT

09103-06225-000 0910306225000

$4,97

Unit Price

WASHER, 6.5X14X1.6
WASHER

09160-06125-000 0916006125000

$3,97

Unit Price

WASHER
CUSHION

09161-09005-000 0916109005000

$3,97

Unit Price

SPACER
SPACER (L:55.9)

09180-06233-000 0918006233000

$14,97

Unit Price

SPACER, SEC COVER BOL
SPACER (L:26.0)

09180-06302-000 0918006302000

$12,97

Unit Price

COVER, GEAR SHIFT

11370-10F00-000 1137010F00000

$118,97

Unit Price

PIN, GEAR SHIFT COVER

09205-03023-000 0920503023000

Not available

GASKET, GEAR SHIFT COVER

11485-10F10-000 1148510F10000

$13,97

Unit Price

04211-09109-000 0421109109000

$2,97

Unit Price

BOLT

01547-0625B-000 015470625B000

$3,97

Unit Price

BOLT

01547-0635B-000 015470635B000

$4,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
