TRANSMISSION

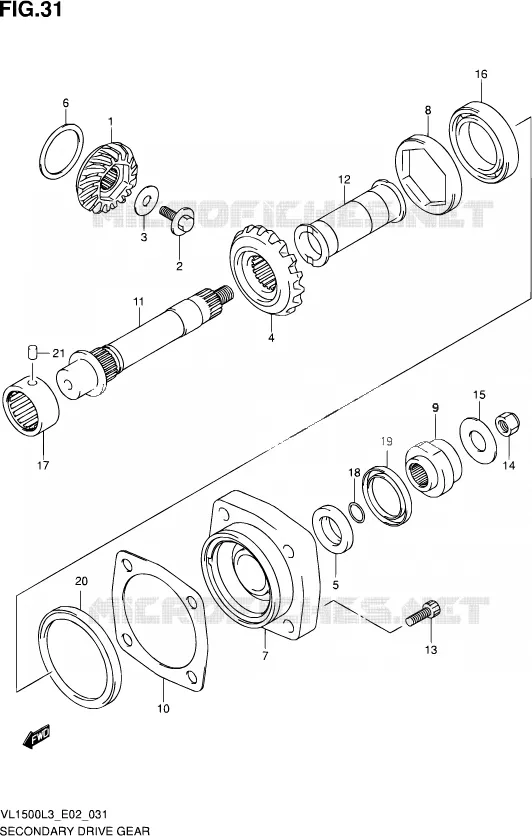

DRIVESHAFT FOR SUZUKI INTRUDER 1500 2013

GEAR SHIFTING ASSY

GEAR, SECONDARY DRIVE
GEAR, SECONDARY DRIVE (NT:17)

24911-40H00-000 2491140H00000

$304,97

Unit Price

BOLT (12X24)

09103-12114-000 0910312114000

$61,97

Unit Price

WASHER, THRUST
WASHER

08211-12341-000 0821112341000

$4,97

Unit Price

GEAR, SECONDARY DRIVEN
GEAR, SECONDARY DRIVEN (NT:20)

24921-40H00-000 2492140H00000

$335,97

Unit Price

SPACER, PRIMARY SHAFT
SPACER, SECONDARY SHAFT

21102-31G00-000 2110231G00000

$32,97

Unit Price

SHIM SET, SEC DRIVE
SHIM SET, SECONDARY DRIVE

24935-40810-000 2493540810000

$125,97

Unit Price

HOUSING, SEC DRIVEN BEARING

24941-40H00-000 2494140H00000

$196,97

Unit Price

STOPPER, SEC DRIVEN BEARING

24942-26D00-000 2494226D00000

$72,97

Unit Price

COUPLING, SEC DRIVEN BEVEL

24943-40H00-000 2494340H00000

$116,97

Unit Price

SHIM SET, SEC DRIVEN
SHIM SET, SECONDARY DRIVEN

24945-40810-000 2494540810000

$45,97

Unit Price

SHAFT, SECONDARY DRIVEN BEVEL

24961-40H00-000 2496140H00000

$186,97

Unit Price

SPACER, SEC DRIVEN BEVEL
SPACER, SECONDARY DRIVEN BEVEL

24962-40H00-000 2496240H00000

$128,97

Unit Price

BOLT (10X30)

09106-10087-000 0910610087000

$8,97

Unit Price

NUT

09159-16003-000 0915916003000

$5,97

Unit Price

WASHER (16.5X36X4)

09160-16040-000 0916016040000

$15,97

Unit Price

BALL BEARING
BEARING (28X68X18)

09262-28014-000 0926228014000

$82,97

Unit Price

BEARING (32X50X22)

09263-32021-000 0926332021000

$142,97

Unit Price

O-RING, DRIVESHAFT
O RING (D:2.4, ID:24.7)

09280-25004-000 0928025004000

$3,97

Unit Price

OIL SEAL
OIL SEAL (38X54X6)

09283-38011-000 0928338011000

$25,97

Unit Price

SEAL, OIL, 76X84X7
OIL SEAL (76X84X7)

09286-84001-000 0928684001000

$34,97

Unit Price

PIN (7X12)

09202-07005-000 0920207005000

$10,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
