Finish line

Parts catalogue

Parts diagram

FUEL PUMP

WATER PUMP FOR SUZUKI INTRUDER 1500 2013

RADIATOR

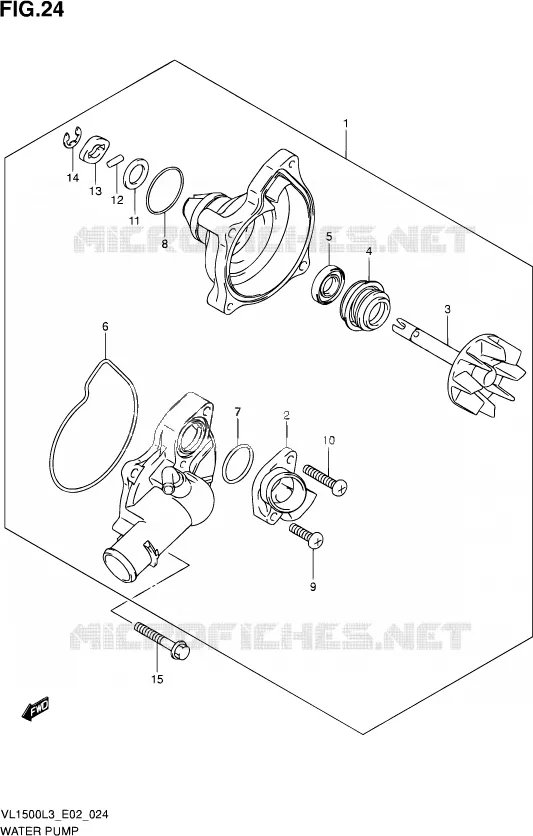

WATER PUMP Suzuki MOTO 1500 INTRUDER 2013 VL1500 L3 (E02)
1
DISCONTINUE
PUMP ASSY, WATER

17400-40H00-000  

1740040H00000
Not available
2
.CONNECTOR

17412-40H00-000   1741240H00000

1741240H00000

Unit Price

3
.IMPELLER

17491-40H00-000   1749140H00000

1749140H00000

Unit Price

4
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F10-000  

17470-02F11-000
 1747002F10000

Unit Price

5
OIL SEAL
.SEAL, OIL

17461-48G00-000   1746148G00000

1746148G00000

Unit Price

6
DISCONTINUE
.O RING

17418-40H00-000  

1741840H00000
Not available
7
O RING

17417-38A00-000  

17417-38A01-000
 1741738A00000

Unit Price

8
O RING,WATER PUMP HOLDER<br />.O RING
O RING, WATER PUMP HOLDER
.O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

9
.SCREW
.SCREW

02112-0620A-000   021120620A000

021120620A000

Unit Price

10
.SCREW

02112-0635A-000   021120635A000

021120635A000

Unit Price

11
.WASHER

17432-07G00-000   1743207G00000

1743207G00000

Unit Price

12
.PIN

17482-03G00-000   1748203G00000

1748203G00000

Unit Price

13
.CAP

17432-11H00-000   1743211H00000

1743211H00000

Unit Price

14
.E RING
.E RING

08332-1108A-000   083321108A000

083321108A000

Unit Price

15
BOLT

01547-0645A-000   015470645A000

015470645A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
