Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TIMING

CARBURETOR FOR SUZUKI OZARK 160 2003

AIR FILTER

Item numbers

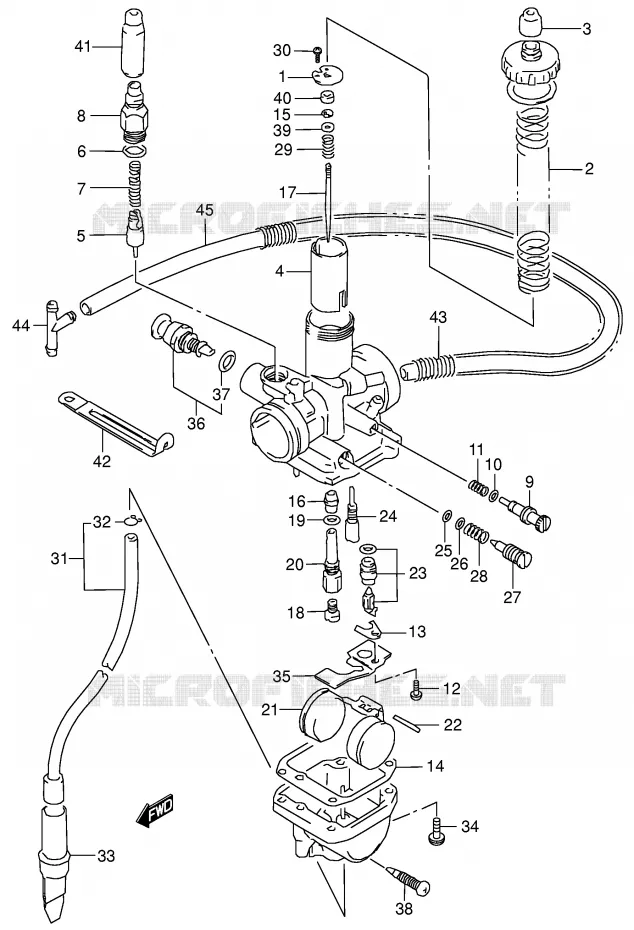

CARBURETOR Suzuki QUAD 160 OZARK 2003 LT-F160K3(P28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
1
PLATE, NEEDLE VALVE FITTING
SEAT, SPRING

13373-05230-000   1337305230000

1337305230000

Unit Price

2
SPRING, THROTTLE VALVE
SPRING

13573-18901-000   1357318901000

1357318901000

Unit Price

3
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

4
VALVE, PISTON (CA:2.5)

13551-02C00-000   1355102C00000

1355102C00000

Unit Price

5
VALVE, STARTER
PLUNGER

13411-18910-000   1341118910000

1341118910000

Unit Price

6
O RING
O RING

13278-02330-000   1327802330000

1327802330000

Unit Price

7
SPRING
SPRING

13417-01010-000   1341701010000

1341701010000

Unit Price

8
CAP
CAP, PLUNGER

13418-02330-000   1341802330000

1341802330000

Unit Price

9
SCREW, THROTTLE STOP
SCREW

13267-24500-000   1326724500000

1326724500000

Unit Price

10
O RING
O RING

13295-33010-000   1329533010000

1329533010000

Unit Price

11
SPRING
SPRING

13268-35010-000   1326835010000

1326835010000

Unit Price

12
SCREW

02112-03063-000  

02112-0306B-000
 0211203063000

Unit Price

13
PLATE, NEEDLE VALVE FITTING
PLATE

13373-46710-000   1337346710000

1337346710000

Unit Price

14
GASKET

13251-05320-000   1325105320000

1325105320000

Unit Price

15
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

16
JET NEEDLE
JET, NEEDLE (O-1)

09494-00540-000   0949400540000

0949400540000

Unit Price

17
NEEDLE, JET
NEEDLE, JET (5FU96-3)

13383-02C01-000   1338302C01000

1338302C01000

Unit Price

18
JET,MAIN<br />JET, MAIN (87.5)
JET, MAIN
JET, MAIN (87.5)

09491-87005-000   0949187005000

0949187005000

Unit Price

19
O RING
O RING

13246-43010-000  

13246-43011-000
 1324643010000

Unit Price

20
PIPE, BLEEDER

13385-41B00-000   1338541B00000

1338541B00000

Unit Price

21
FLOAT

13250-05230-000   1325005230000

1325005230000

Unit Price

22
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-01010-000   1325401010000

1325401010000

Unit Price

23
VALVE ASSY, NEEDLE

13370-02C00-000   1337002C00000

1337002C00000

Unit Price

24
JET, PILOT
JET, PILOT (22.5)

09492-22008-000   0949222008000

0949222008000

Unit Price

25
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

26
WASHER<br />GASKET
WASHER
GASKET

13291-29900-000   1329129900000

1329129900000

Unit Price

27
SCREW,PILOT<br />SCREW, PILOT (1 5/8)
SCREW, PILOT
SCREW, PILOT (1 5/8)

13279-47070-000   1327947070000

1327947070000

Unit Price

28
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

29
SPRING,NEEDLE JET<br />SPRING
SPRING, NEEDLE JET
SPRING

13388-47010-000   1338847010000

1338847010000

Unit Price

30
SCREW

13601-05230-000   1360105230000

1360105230000

Unit Price

31
VALVE ASSY, CHECK

13520-02C01-000   1352002C01000

1352002C01000

Unit Price

32
CLIP
CLIP

13671-05A40-000   1367105A40000

1367105A40000

Unit Price

33
13680-19B02
CAP

13680-19B01-000   1368019B01000

1368019B01000
Not available
34
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

35
PLATE

13259-18900-000   1325918900000

1325918900000

Unit Price

36
PLANGER ASSY, STARTER
PLUNGER ASSY, STARTER

13439-18911-000   1343918911000

1343918911000

Unit Price

37
O RING
O RING

13278-02330-000   1327802330000

1327802330000

Unit Price

38
PLUG,DRAIN<br />SCREW
PLUG, DRAIN
SCREW

13247-02340-000   1324702340000

1324702340000

Unit Price

39
WASHER, JET NEEDLE
WASHER

13382-47010-000   1338247010000

1338247010000

Unit Price

40
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

41
CAP,CABLE ADJUSTER<br />CAP
CAP, CABLE ADJUSTER
CAP

13681-33010-000   1368133010000

1368133010000

Unit Price

42
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

43
SPRING, AIR VENT HOSE

09440-13051-000   0944013051000

0944013051000
Not available
44
UNION, 3 WAY
UNION, 3 WAY

09367-08004-000   0936708004000

0936708004000

Unit Price

45
HOSE

09359-50823-600  

09359-50824-600
 0935950823600

Unit Price

99x
CARBURETOR ASSY

13200-02C03-000  

13200-02C04-000
 1320002C03000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 160 OZARK 2003

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 160 OZARK 2003

Choose your Suzuki 160 2003 OZARK model

160 OZARK 2003 LT-F160K3(P28)

Suzuki OZARK

Displacement: 160 cc
Year: 2003
Model code LT-F160K3(P28)
