OIL PUMP / FUEL PUMP

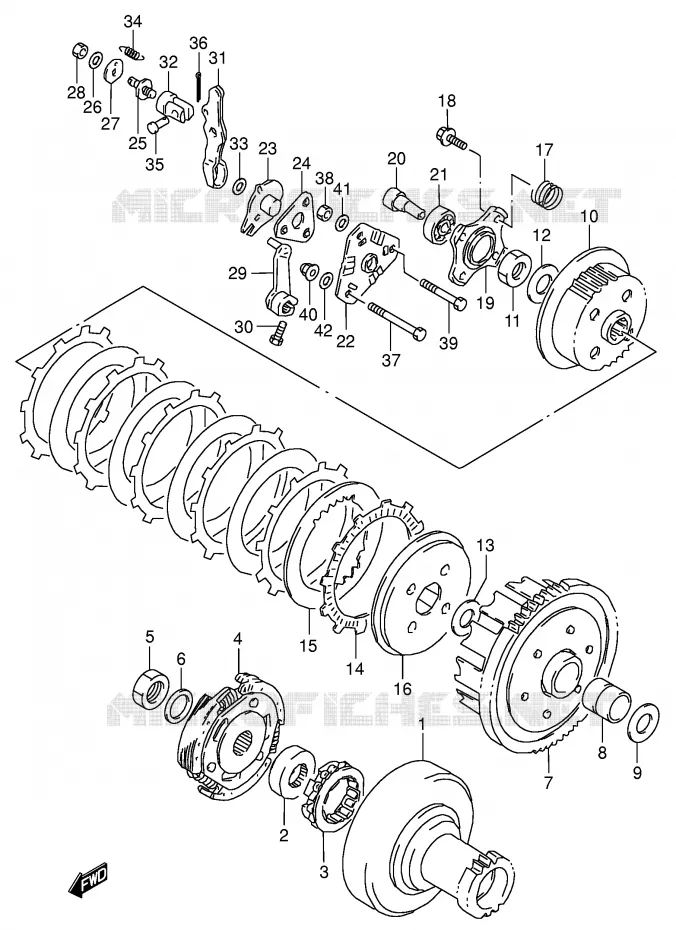

CLUTCH FOR SUZUKI OZARK 160 2003

TRANSMISSION

Item numbers

GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:19)

21110-02C01-000 2111002C01000

$266,97

Unit Price

RACE, ONE WAY CLUTCH
RACE, INNER

21631-19B11-000 2163119B11000

$44,97

Unit Price

CLUTCH ASSY, ONE WAY
CLUTCH, ONE WAY

21273-19B10-000 2127319B10000

$178,97

Unit Price

CLUTCH ASSY, SHOE

21500-02C02-000

21500-02C03-000

$374,97

Unit Price

NUT

09140-18012-000 0914018012000

$13,97

Unit Price

WASHER
WASHER (20.1X32X2)

09164-20007-000 0916420007000

$6,97

Unit Price

DISCONTINUE
GEAR ASSY, PRIMARY (NT:71)

21200-02C02-000 2120002C02000

Not available

SPACER (22X28X23)

09180-22035-000 0918022035000

$30,97

Unit Price

WASHER
WASHER (22X36X1.0)

09181-22251-000 0918122251000

$6,97

Unit Price

HUB, CLUTCH SLEEVE
HUB, CLUTCH

21410-18A00-000 2141018A00000

$99,97

Unit Price

DRIVE SPROCKET NUT
NUT

09140-20001-000 0914020001000

$5,97

Unit Price

PRI DRIVE GR WAS****

09164-18007-000

09164-18001-000

$5,97

Unit Price

WASHER

08211-20323-000 0821120323000

$3,97

Unit Price

PLATE, CLUTCH DRIVE
PLATE, DRIVE

21441-22A01-000 2144122A01000

$21,97

Unit Price

PLATE, DRIVEN(T:1.4)
PLATE, DRIVEN

21451-01B40-000 2145101B40000

$12,97

Unit Price

DISC, CLUTCH PRESSURE
DISC, PRESSURE

21462-24501-000 2146224501000

$80,97

Unit Price

SPRING

09440-19022-000 0944019022000

Not available

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

PLATE, RELEASE

21465-24500-000 2146524500000

$24,97

Unit Price

DISCONTINUE
PIECE, PUSH

23121-18A03-000 2312118A03000

Not available

BALL BEARING
BEARING (12X28X8.0)

09262-12001-000 0926212001000

$26,97

Unit Price

DISCONTINUE
BALL GUIDE, OUTER

23231-18A00-000 2323118A00000

Not available

DISCONTINUE
BALL GUIDE, INNER

23211-18A02-000 2321118A02000

Not available

BALL, CLUTCH RELEASE
BALL, RELEASE

23250-24500-000 2325024500000

$29,97

Unit Price

DISCONTINUE
BOLT, ADJUSTER

23223-18A00-000 2322318A00000

Not available

WASHER (6.5X14X2.3)

09160-06127-000 0916006127000

$2,97

Unit Price

WASHER
WASHER (6.5X22X1.2)

09169-06046-000 0916906046000

$1,97

Unit Price

NUT
NUT, ADJUSTER

09140-06023-000 0914006023000

$3,97

Unit Price

DISCONTINUE
ARM, RELEASE

23220-18A00-000 2322018A00000

Not available

BOLT

01500-06203-000

01500-0620A-000

$2,97

Unit Price

ARM, CLUTCH RELEASE NO.2
ARM, RELEASE NO.2

23225-18A01-000 2322518A01000

$19,97

Unit Price

DISCONTINUE
BOSS, RELEASE NO.2

23224-18A00-000 2322418A00000

Not available

WASHER, CL RLSE CAM S
WASHER (10X20X1.0)

09181-10195-000 0918110195000

$3,97

Unit Price

SPRING

09443-06053-000 0944306053000

$2,97

Unit Price

09200-07005-000 0920007005000

$3,97

Unit Price

DISCONTINUE
COTTER PIN

04111-16208-000

Not available

BOLT (6X55)

09119-06064-000 0911906064000

Not available

08310-0006A
NUT

08310-00063-000

Not available

BOLT (6X35)

09119-06063-000 0911906063000

Not available

NUT

08313-20063-000

08313-2006A-000

$3,97

Unit Price

WASHER

08212-06121-000 0821206121000

Not available

GASKET
SEAL, BOLT (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
