FOOTREST (VLR1800K8 / TK8 / K9 / L0) REFER TO FIG.42A(G- 7) FOR VLR1800TK9/TL0

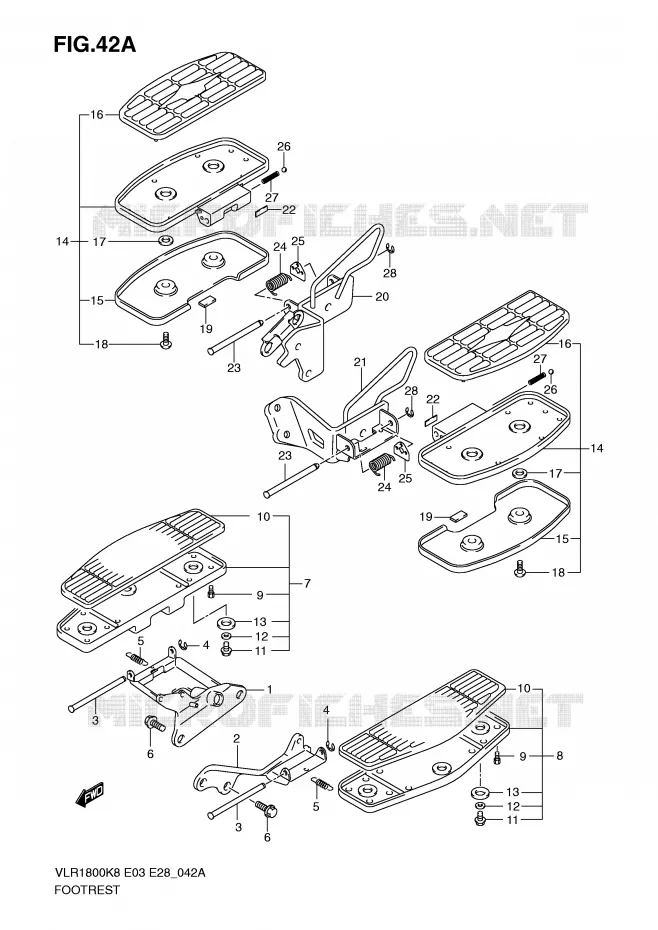

FOOTREST (VLR1800TK9 / TL0) FOR SUZUKI BOULEVARD 1800 2009

FUEL TANK (VLR1800K8 / K9) REFER TO FIG.44 (G- 9) FOR VLR1800TK8/TK9

BRACKET, FR FOOTREST, R
BRACKET, FRONT FOOTREST RH

43510-22H01-000 4351022H01000

$313,97

Unit Price

BRACKET, FR FOOTREST, L
BRACKET, FRONT FOOTREST LH

43520-22H00-000 4352022H00000

$166,97

Unit Price

PIN, FR FOOTREST
PIN

43539-10F00-000 4353910F00000

$11,97

Unit Price

E RING

08332-1106A-000

08332-1106B-000

$2,97

Unit Price

SPRING

09443-11033-000 0944311033000

$7,97

Unit Price

BOLT

01550-1230B-000 015501230B000

Not available

FOOTREST ASSY, FRONT, R

43501-10F10-000

43501-10F12-000

$244,97

Unit Price

FOOTREST ASSY, FRONT, L

43502-10F10-000

43502-10F12-000

$262,97

Unit Price

BOLT, BANK SENSOR

43576-07D01-000 4357607D01000

$12,97

Unit Price

RUBBER, FR FOOTREST
RUBBER, FRONT FOOTREST

43550-10F10-000 4355010F10000

$68,97

Unit Price

BOLT

01550-0610B-000 015500610B000

$4,97

Unit Price

WASHER(6.5X22X1.6)
WASHER

09160-06158-000 0916006158000

$3,97

Unit Price

CUSHION

09320-10036-000

09320-10077-000

$4,97

Unit Price

FOOTREST ASSY, PILLION

43600-22H10-000

43600-22H11-000

$395,97

Unit Price

PLATE, FOOTREST BOARD
PLATE

43632-22H00-000 4363222H00000

$162,97

Unit Price

DISCONTINUE
RUBBER

43670-22H00-000 4367022H00000

Not available

CUSHION

09320-10036-000

09320-10077-000

$4,97

Unit Price

SCREW

09139-06067-000

09139-06237-000

$5,97

Unit Price

CUSHION, COVER

43633-22H00-000

47712-37H00-000

$10,97

Unit Price

BRACKET, PILLION FOOTREST, R
BRACKET, PILLION RH

43810-22H10-000 4381022H10000

$243,97

Unit Price

DISCONTINUE
BRACKET, PILLION LH

43820-22H10-000 4382022H10000

Not available

CUSHION, FOOTREST

43638-22H00-000 4363822H00000

Not available

PIN, PILLION FOOTREST
PIN, PILLION

43636-22H00-000 4363622H00000

$13,97

Unit Price

SPRING, PILLION FOOTREST BOARD
SPRING

43637-22H00-000 4363722H00000

$8,97

Unit Price

PLATE, PILLION FOOTREST
PLATE

43816-22H00-000 4381622H00000

$7,97

Unit Price

STEEL BALL 7/32
BALL

06111-07004-000 0611107004000

$2,97

Unit Price

SPRING, STAND GRIP
SPRING

09440-05003-000 0944005003000

$2,97

Unit Price

E RING

08332-1106A-000

08332-1106B-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST (VLR1800TK9/TL0) of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.
