TRANSMISSION

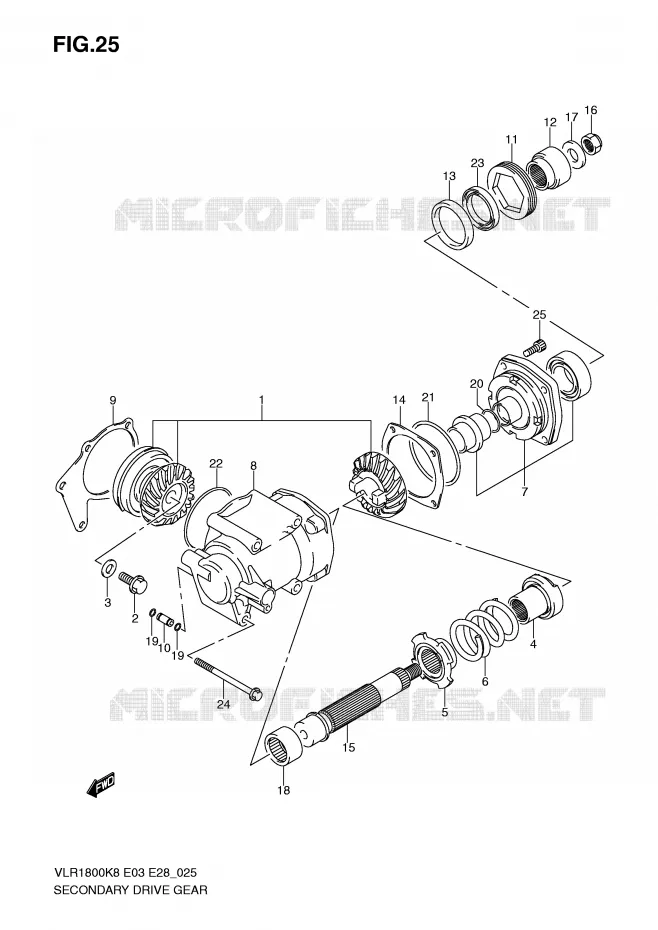

DRIVESHAFT FOR SUZUKI BOULEVARD 1800 2009

GEAR SHIFTING ASSY

Item numbers

GEAR SET, SECONDARY

24910-48830-000 2491048830000

$942,97

Unit Price

BOLT, 12X24
BOLT, SECONDARY DRIVE GEAR

09103-12084-000 0910312084000

$11,97

Unit Price

WASHER RR CUSHION
WASHER, SECONDARY DRIVE

09160-12045-000 0916012045000

$6,97

Unit Price

DOG, OUTPUT CAM

24923-48G10-000 2492348G10000

$100,97

Unit Price

STOPPER, CAM SPRING

24924-48G10-000 2492448G10000

$73,97

Unit Price

SPRING, SECONDARY DAMPER

24925-48G00-000 2492548G00000

$35,97

Unit Price

STOPPER SECONDARY SET, DRIVEN
STOPPER, SEC SET, DRIVEN BEVEL

24926-48820-000 2492648820000

$481,97

Unit Price

CASE, SECONDARY GEAR

24931-48G20-000 2493148G20000

$414,97

Unit Price

SHIM SET, SEC DRIVE
SHIM SET, DRIVE

24935-48810-000 2493548810000

$98,97

Unit Price

PIPE, SECONDARY, OIL
PIPE, SEC GEAR CASE OIL

24940-26D00-000 2494026D00000

$18,97

Unit Price

STOPPER, SEC DRIVEN BEARING
STOPPER, SEC DRIVEN

24942-26D00-000 2494226D00000

$69,97

Unit Price

COUPLING, SEC DRIVEN BEVEL

24943-48G00-000

24943-48G01-000

$94,97

Unit Price

HOUSING, OIL SEAL

24944-48G00-000 2494448G00000

$48,97

Unit Price

SHIM SET, SECONDARY DRIVEN
SHIM SET, SECONDARY

24945-48810-000 2494548810000

$76,97

Unit Price

SHAFT, SECONDARY DRIVEN
SHAFT, SECONDARY DRIVEN BEVEL

24961-48G00-000 2496148G00000

$119,97

Unit Price

NUT
NUT, SEC DRIVEN BEVEL COUPLING

09159-16003-000 0915916003000

$6,97

Unit Price

WASHER(16.5X36X4)
WASHER, SEC DRIVEN BEVEL

09160-16040-000 0916016040000

$15,97

Unit Price

BEARING
BEARING, SECONDARY DRIVEN

09263-32012-000 0926332012000

$123,97

Unit Price

O-RING, BELT LUBE
O RING, SEC CASE OIL PI

09280-06008-000 0928006008000

$3,97

Unit Price

O-RING
O RING, SEC DRIVE BRG STOPPER

09280-24010-000 0928024010000

$9,97

Unit Price

O RING
O RING, BEARING HOUSING

09280-78003-000 0928078003000

$10,97

Unit Price

O-RING, SECONDARY CAS
O RING, SECONDARY CASE

09280-92003-000 0928092003000

$20,97

Unit Price

OIL SEAL
SEAL, SECONDARY DRIVEN OIL

09283-38011-000 0928338011000

$25,97

Unit Price

BOLT

01550-0895A-000

01550-0895B-000

$7,97

Unit Price

BOLT, BEARING HOUSING

09106-09002-000 0910609002000

$10,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.
