FRAME FOR SUZUKI BOULEVARD 1800 2011

REAR FRAME

Item numbers

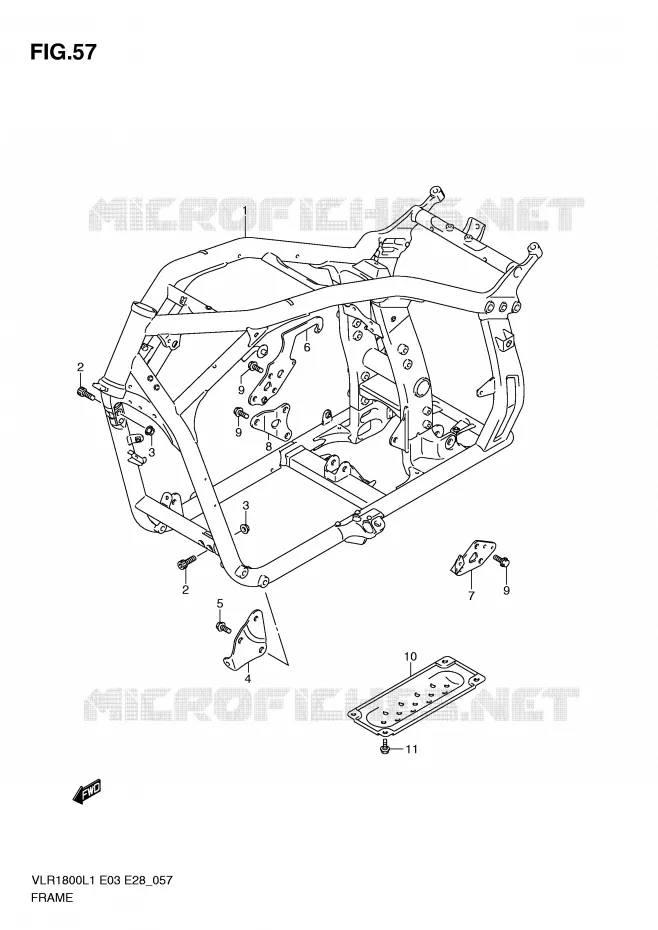

FRAME Suzuki MOTO 1800 BOULEVARD 2011 VLR1800TL1(E3/E28)
1
2
2
3
3
4
5
6
7
8
9
9
9
10
11
1
FRAME (BLACK)

41100-22H20-019   4110022H20019

4110022H20019

Unit Price

2
BOLT

07130-1035B-000   071301035B000

071301035B000

Unit Price

3
NUT
NUT

08319-3110B-000   083193110B000

083193110B000

Unit Price

4
PLATE, ENG MTG FR, L
PLATE, MOUNT FRONT LH

41920-22H00-000   4192022H00000

4192022H00000

Unit Price

5
BOLT

01550-1230B-000   015501230B000

015501230B000
Not available
6
PLATE, ENG MTG RR, R
PLATE, REAR RH

41930-22H00-000   4193022H00000

4193022H00000

Unit Price

7
DISCONTINUE
PLATE, REAR LH

41940-22H00-000   4194022H00000

4194022H00000
Not available
8
PLATE, ENG MTG RR LOW, R
PLATE, REAR LOWER RH

41951-22H00-000   4195122H00000

4195122H00000

Unit Price

9
BOLT
BOLT

01550-1025B-000   015501025B000

015501025B000

Unit Price

10
PROTECTOR, FRAME UNDER
PROTECTOR, UNDER

42561-22H00-000   4256122H00000

4256122H00000

Unit Price

11
BOLT (6X16)
BOLT (6X16)

09113-06001-000   0911306001000

0911306001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.
