Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL COOLER

FUEL PUMP FOR SUZUKI BOULEVARD 1800 2011

WATER PUMP

Item numbers

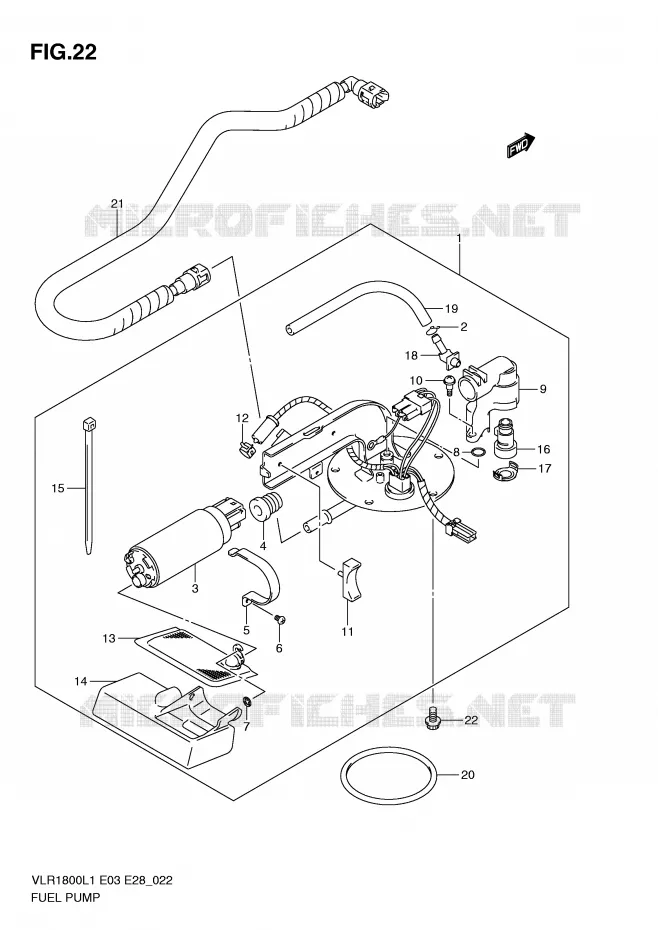

FUEL PUMP Suzuki MOTO 1800 BOULEVARD 2011 VLR1800TL1(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
PUMP ASSY, FUEL

15100-22H00-000  

15100-22H01-000
 1510022H00000

Unit Price

2
CLIP

13693-24F00-000   1369324F00000

1369324F00000

Unit Price

3
PUMP, FUEL
PUMP

15110-48G00-000   1511048G00000

1511048G00000

Unit Price

4
INSULATOR

15114-48G00-000  

15114-48G01-000
 1511448G00000

Unit Price

5
HOLDER

15115-14G00-000   1511514G00000

1511514G00000

Unit Price

6
SCREW

15116-48G00-000   1511648G00000

1511648G00000

Unit Price

7
PLATE

15119-14G00-000   1511914G00000

1511914G00000

Unit Price

8
O RING

15125-48G00-000   1512548G00000

1512548G00000

Unit Price

9
ADAPTER

15131-48G00-000   1513148G00000

1513148G00000

Unit Price

10
SCREW

15135-48G00-000   1513548G00000

1513548G00000

Unit Price

11
INSULATOR

15141-48G00-000   1514148G00000

1514148G00000

Unit Price

12
CLAMP

15175-48G00-000   1517548G00000

1517548G00000

Unit Price

13
FILTER

15420-22H00-000   1542022H00000

1542022H00000

Unit Price

14
COVER, FILTER
COVER

15425-22H00-000   1542522H00000

1542522H00000

Unit Price

15
BAND

15426-48G00-000   1542648G00000

1542648G00000

Unit Price

16
REGULATOR, PRESSURE
REGULATOR

15610-48G00-000   1561048G00000

1561048G00000

Unit Price

17
CLIP

15613-48G00-000   1561348G00000

1561348G00000

Unit Price

18
JOINT

15614-48G00-000   1561448G00000

1561448G00000

Unit Price

19
TUBE
HOSE

15615-48G00-000   1561548G00000

1561548G00000

Unit Price

20
O RING,FUEL PUMP<br />O RING
O RING, FUEL PUMP
O RING

15201-35F00-000   1520135F00000

1520135F00000

Unit Price

21
HOSE

15810-22H01-000   1581022H01000

1581022H01000
Not available
22
BOLT

07120-0612A-000  

07120-0612B-000
 071200612A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL PUMP of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1800 BOULEVARD 2011
