Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT

INDICATORS FOR SUZUKI INTRUDER 1800 2009

TAIL LIGHT

Item numbers

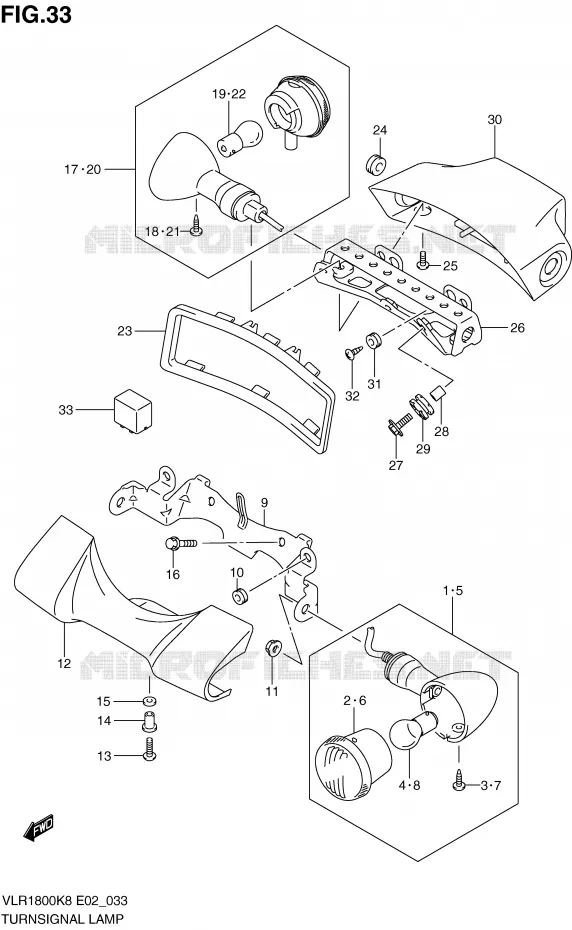

INDICATORS Suzuki MOTO 1800 INTRUDER 2009 VLR1800TK9(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
LAMP ASSY, FR TURNSIGNAL, R

35601-41FA0-000  

35601-41FA1-000
 3560141FA0000
2
LENS
LENS, R

35610-38AE1-000   3561038AE1000

3561038AE1000

Unit Price

3
SCREW(4X10)
SCREW (4X40)

35623-38AA0-000   3562338AA0000

3562338AA0000

Unit Price

4
BULB(12V60/55W,H4)<br />BULB (12V21W)
BULB(12V60/55W, H4)
BULB (12V21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

5
LAMP ASSY, FR TURNSIGNAL, L

35602-41FA0-000  

3560241FA0000
Not available
6
LENS
LENS, L

35630-38AE1-000   3563038AE1000

3563038AE1000

Unit Price

7
SCREW(4X10)
SCREW (4X40)

35623-38AA0-000   3562338AA0000

3562338AA0000

Unit Price

8
BULB(12V60/55W,H4)<br />BULB (12V21W)
BULB(12V60/55W, H4)
BULB (12V21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

9
BRACKET, FR
BRACKET, FRONT

35616-41FD0-000  

3561641FD0000
Not available
10
CUSHION(6.5X14X6)

09320-06016-000  

09320-06027-000
 0932006016000

Unit Price

11
NUT
NUT

08310-0010B-000   083100010B000

083100010B000

Unit Price

12
COVER, FR TURNSIGNAL
COVER, FR

35641-41F02-000   3564141F02000

3564141F02000

Unit Price

13
SCREW, 5 X 16<br />SCREW, FR (5X16)
SCREW, 5 X 16
SCREW, FR (5X16)

09139-05042-000   0913905042000

0913905042000

Unit Price

14
NUT,WINDSCREEN
NUT, WINDSCREEN

09159-05019-000  

94618-48H10-000
 0915905019000

Unit Price

15
WASHER,5.5X14X1.20<br />WASHER, FR (5.5X14X1.2)
WASHER, 5.5X14X1.20
WASHER, FR (5.5X14X1.2)

09160-05048-000   0916005048000

0916005048000

Unit Price

16
BOLT<br />BOLT, FR TURN
BOLT
BOLT, FR TURN

01550-0816B-000   015500816B000

015500816B000

Unit Price

17
LAMP ASSY, TURNSIGNAL RH

35603-38AB2-000  

35603-38AB4-000
 3560338AB2000

Unit Price

18
SCREW(4X10)
SCREW

35623-38AA0-000   3562338AA0000

3562338AA0000

Unit Price

19
BULB(12V60/55W,H4)<br />BULB (12V21W)
BULB(12V60/55W, H4)
BULB (12V21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

20
LAMP ASSY, TURNSIGNAL LH

35604-38AB2-000  

35604-38AB4-000
 3560438AB2000

Unit Price

21
SCREW(4X10)
SCREW

35623-38AA0-000   3562338AA0000

3562338AA0000

Unit Price

22
BULB(12V60/55W,H4)<br />BULB (12V21W)
BULB(12V60/55W, H4)
BULB (12V21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

23
GASKET, RR TURNSIGNAL COVER
GASKET, RR TURNSIGNAL

35657-22H00-000   3565722H00000

3565722H00000

Unit Price

24
GROMMET
GROMMET, RR LEAD

09308-10005-000   0930810005000

0930810005000

Unit Price

25
BOLT(6X14)
SCREW, RR TURNSIGNAL (6X12)

09103-06507-000   0910306507000

0910306507000

Unit Price

26
BRACKET, RR TURNSIGNAL

35620-22H00-000   3562022H00000

3562022H00000

Unit Price

27
BOLT (6X25)
BOLT (6X25)

09116-06131-000   0911606131000

0911606131000

Unit Price

28
SPACER (6.5X10X12)
SPACER (6.5X10X12)

09180-06290-000   0918006290000

0918006290000

Unit Price

29
CUSHION, RADIATOR UPP
CUSHION

09320-10051-000   0932010051000

0932010051000

Unit Price

30
COVER, RR TURNSIGNAL

35621-22H00-000   3562122H00000

3562122H00000

Unit Price

31
CUSHION(6.5X14X6)

09320-06016-000  

09320-06027-000
 0932006016000

Unit Price

32
SCREW<br />SCREW, RR COVER
SCREW
SCREW, RR COVER

03541-0510A-000   035410510A000

035410510A000

Unit Price

33
RELAY ASSY,TURNSIGNAL LAMP
RELAY ASSY, TURNSIGNAL LAMP

38610-03F00-000  

38610-03F01-000
 3861003F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 1800 INTRUDER 2009

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1800 INTRUDER 2009

Choose your Suzuki 1800 2009 INTRUDER model

1800 INTRUDER 2009 VLR1800TK9(E2)
1800 INTRUDER 2009 VLR1800TK9(E2)
1800 INTRUDER 2009 VLR1800TK9(E2)
1800 INTRUDER 2009 VLR1800TK9(E2)

Suzuki INTRUDER

Displacement: 1800 cc
Year: 2009
Model code VLR1800TK9(E2)
