FUEL TANK (MODEL J)

SEAT FOR SUZUKI DR 200 1986

FAIRING

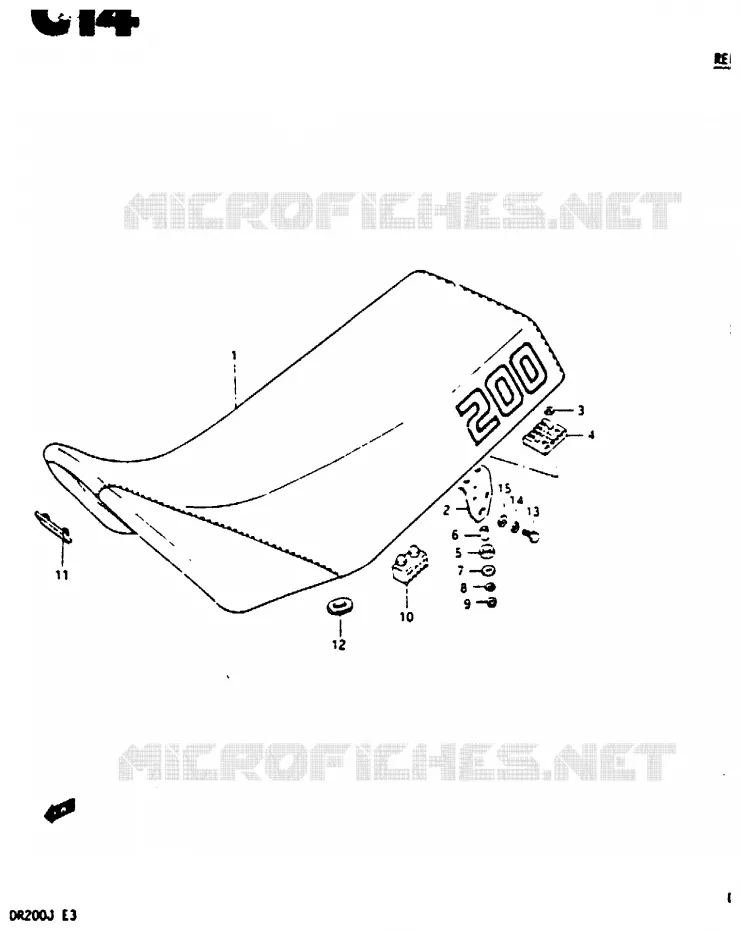

SEAT Suzuki MOTO 200 DR 1986 DR200G(G/H/J)

1

DISCONTINUE

45100-42A11-58D

Not available

2

45120-42A01
DISCONTINUED

45121-42A10-000 4512142A10000

Not available

2

45130-42A01
DISCONTINUED

45131-42A10-000 4513142A10000

Not available

3

WASHER

08322-21066-000

08322-0106A-000

$2,97

Unit Price

4

CUSHION, FR PLATE
CUSHION, UPPER

45150-23450-000 4515023450000

$7,97

Unit Price

5

CUSHION, SEAT FR
CUSHION, LOWER

45147-23450-000 4514723450000

$2,97

Unit Price

6

SPACER

45219-23450-000 4521923450000

Not available

7

WASHER, THRUST
WASHER, LOWER

08212-06201-000 0821206201000

$2,97

Unit Price

8

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

9

.NUT

08310-11066-000 0831011066000

Not available

10

CUSHION, SEAT(40X20X15)
CUSHION

45149-31300-000 4514931300000

$5,97

Unit Price

11

SEAT CUSHION
CUSHION, FRONT

09321-08009-000 0932108009000

$4,97

Unit Price

12

CUSHION COWLING REAR
GROMMET

09329-08003-000 0932908003000

$6,97

Unit Price

13

BOLT

01107-08165-000

01500-0816B-000

$4,97

Unit Price

14

WASHER, LOCK

08321-21084-000

08321-0108B-000

$3,97

Unit Price

15

08322-0108A
WASHER, FRONT

08322-11084-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki of DR. Let us know if you have any questions.
