FRONT FORK

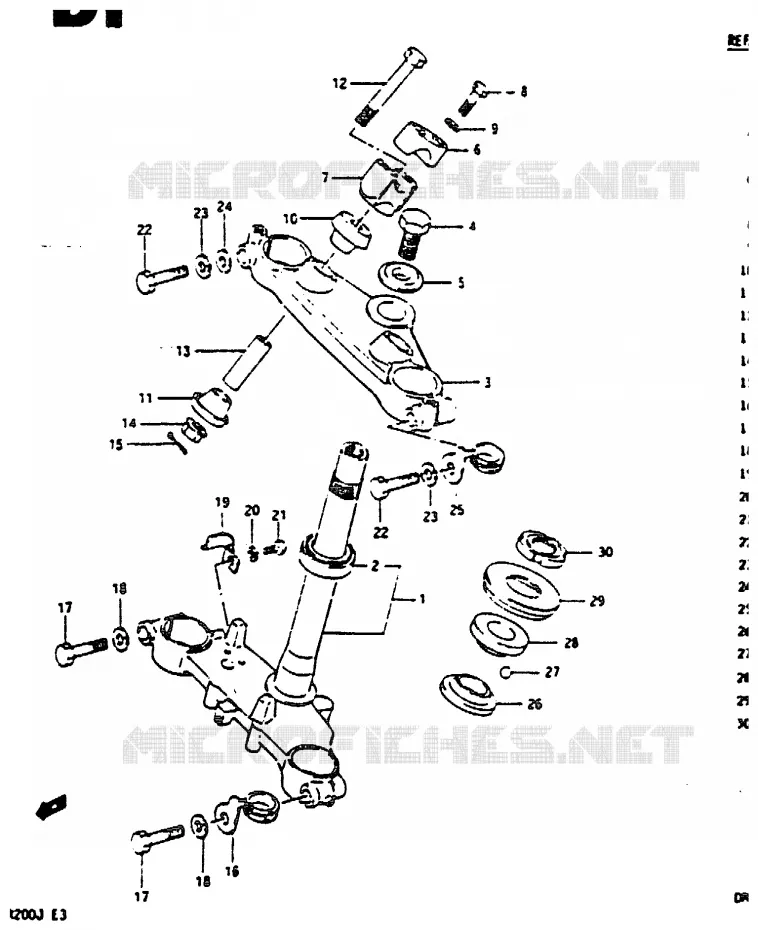

STEERING COLUMN (MODEL G) FOR SUZUKI DR 200 1986

STEERING COLUMN (MODEL H / J)

DISCONTINUE

51410-42A10-126

Not available

.BEARING, LOWER

09265-30005-000 0926530005000

Not available

DISCONTINUED

51311-42A10-000 5131142A10000

Not available

DISCONTINUE

51352-01A00-000

Not available

DISCONTINUE

51356-20520-000

Not available

HOLDER, HANDLEBAR
HOLDER, HANDLE UPPER

56211-27100-000 5621127100000

$26,97

Unit Price

HOLDER, HANDLE LOWER

56221-42A10-000 5622142A10000

Not available

BOLT

01107-08358-000

01550-0835B-000

$5,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

DISCONTINUED

56240-42A10-000 5624042A10000

Not available

56260-42A00
DISCONTINUED

56260-42A10-000 5626042A10000

Not available

DISCONTINUE

56222-42A00-000

Not available

SPACER

56243-42A00-000 5624342A00000

$10,97

Unit Price

NUT

08319-31108-000

08319-31107-000

$4,97

Unit Price

04111-20308-000

04111-2030A-000

$2,97

Unit Price

DISCONTINUE
CLIP, LOWER

51455-42A00-000 5145542A00000

Not available

DISCONTINUE
BOLT

51451-01A30-000 5145101A30000

Not available

.LOCK WASHER

08321-21108-000 0832121108000

Not available

CLIP

51452-05130-000 5145205130000

$6,97

Unit Price

WASHER, LOCK

08321-21067-000

08321-01067-000

$2,97

Unit Price

.SCREW

02112-06088-000 0211206088000

Not available

DISCONTINUE
BOLT

51451-01A30-000 5145101A30000

Not available

.LOCK WASHER

08321-21108-000 0832121108000

Not available

WASHER, LOWER LH

08322-11108-000 0832211108000

Not available

DISCONTINUE
CLIP, UPPER

51455-42A00-000 5145542A00000

Not available

INNER RACE, STEERING

51611-40200-000 5161140200000

Not available

STEEL BALL
BALL

06111-08003-000 0611108003000

$2,97

Unit Price

DISCONTINUE

51621-40200-000

Not available

SEAL, STEERING UPR DUST
DUST SEAL

51643-40200-000 5164340200000

$19,97

Unit Price

DISCONTINUE
NUT, STEERING STEM

51631-40200-000 5163140200000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN (MODEL G) of your Suzuki of DR. Let us know if you have any questions.
